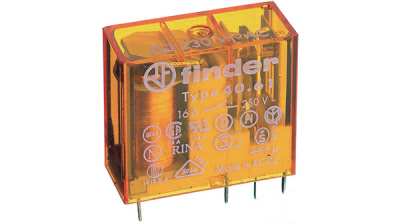

1 x wissel 5mm raster Insteek- printrelais [AC]

12Vac Insteek-/printrelais 1xwissel 10A - raster 5mm | 40518012

Finder
40.51.8.012.0000 | REL40518 |.12 03102011
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type Inteek print relais, monostable
  • Contacts: 1 x wissel
  • Spoelspanning: 12Vac
  • Maximale schakelspanning: 250Vac
  • Maximale schakelstroom: 10A
  • Schakel capaciteit: 2500VA
  • R coil: - Ohm
  • P coil: 1.2 VA
  • Temperatuurbreik: -40...+85 °C
  • Contact materiaal: AgSnO2
  • Pitch: 5mm

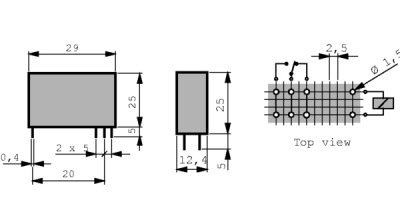

  • Afmeting lxbxh: 29x12.4x25mm
  • Bescherming waarde: IP 40

24Vac Insteek-/printrelais 1xwissel 10A - raster 5mm | 40518024

Finder
40.51.8.024.0000 | REL40518.24 | 03102011
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type Inteek print relais, monostable
  • Contacts: 1 x wissel
  • Spoelspanning: 24Vac
  • Maximale schakelspanning: 250Vac
  • Maximale schakelstroom: 10A
  • Schakel capaciteit: 2500VA
  • R coil: 320 Ohm
  • P coil: 1.2 VA
  • Temperatuurbreik: -40...+85 °C
  • Contact materiaal: AgSnO2
  • Pitch: 5mm
  • Afmeting lxbxh: 29x12.4x25mm
  • Bescherming waarde: IP 40

230Vac Insteek-/printrelais 1xwissel 10A - raster 5mm | 40518230

Finder
40.51.8.230.0000 | REL40518.230 | 03102011 |
30403
kg
    Levertijd:geen voorraad artikel levertijd 2-4 werkdagen
Bestel
  • Type Inteek print relais, monostable
  • Contacts: 1 x wissel
  • Spoelspanning: 230Vac
  • Maximale schakelspanning: 250Vac
  • Maximale schakelstroom: 10A
  • Schakel capaciteit: 2500VA
  • R coil: 28000 Ohm
  • P coil: 1.2 VA
  • Temperatuurbreik: -40...+85 °C
  • Contact materiaal: AgSnO2
  • Pitch: 5mm
  • Afmeting lxbxh: 29x12.4x25mm
  • Bescherming waarde: IP 40

12Vac Insteek-/printrelais 1xwissel 16A - raster 5mm | 40618012

Finder
40.61.8.012.0000 | REL40618.12 | 03102011
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type Inteek print relais, monostable
  • Contacts: 1 x wissel
  • Spoelspanning: 12Vac
  • Maximale schakelspanning: 250Vac
  • Maximale schakelstroom: 16A
  • Schakel capaciteit: 4000VA
  • R coil: -- Ohm
  • P coil: 1.2 VA
  • Temperatuurbreik: -40...+85 °C
  • Contact materiaal: AgSnO2
  • Pitch: 5mm
  • Afmeting lxbxh: 29x12.4x25mm
  • Bescherming waarde: IP 40

24Vac Insteek-/printrelais 1xwissel 16A - raster 5mm | 40618024

Finder
40.61.8.024.4000 | REL40618.24 | 03102011
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type Inteek print relais, monostable
  • Contacts: 1 x wissel
  • Spoelspanning: 24Vac
  • Maximale schakelspanning: 250Vac
  • Maximale schakelstroom: 16A
  • Schakel capaciteit: 4000VA
  • R coil: 320 Ohm
  • P coil: 1.2 VA
  • Temperatuurbreik: -40...+85 °C
  • Contact materiaal: AgSnO2
  • Pitch: 5mm
  • Afmeting lxbxh: 29x12.4x25mm
  • Bescherming waarde: IP 40

230Vac Insteek-/printrelais 1xwissel 16A - raster 5mm | 40618230

Finder
40.61.8.230.4000 | REL40618.230 03102011
kg
    Levertijd:geen voorraad artikel levertijd 2-4 werkdagen
Bestel
  • Type Inteek print relais, monostable
  • Contacts: 1 x wissel
  • Spoelspanning: 230Vac
  • Maximale schakelspanning: 250Vac
  • Maximale schakelstroom: 16A
  • Schakel capaciteit: 4000VA
  • R coil: 28000 Ohm
  • P coil: 1.2 VA
  • Temperatuurbreik: -40...+85 °C
  • Contact materiaal: AgSnO2
  • Pitch: 5mm
  • Afmeting lxbxh: 29x12.4x25mm
  • Bescherming waarde: IP 40
