50VA Ringkern trafo's

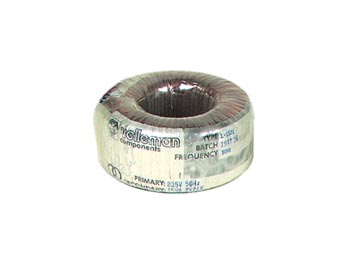

Ringkerntrafo 50VA 2x6V / 2X4.16A | 506

Velleman
506 | 16062009 |
5410329235789
kg
    Levertijd:geen voorraad artikel 2-4 werkdagen
Bestel
  • goedkeuring: EN 60742/BS3535
  • zekering: 130°C thermische zekering



  • spanning: 2 x 6V
  • stroom: 2 x 4.16A
  • regulatie: 12%
  • gewicht: 0.79kg
  • Ø: 93mm max.
  • hoogte: 40mm max.
  • bevestigingsbout: M6 x 45mm
  • moer: M6
  • metalen ring: Ø72mm
  • rubberen ring: Ø74mm
  • bedrading: 200mm PVC, 10mm gestript en vertind
    • primair: zwart - zwart : 1 x 230V
    • secundair: *rood - geel / *blauw - grijs (* = start)
  • primaire spanning: 230V / 50Hz
  • primaire-secundaire isolatie: 500Vdc
  • secundaire-secundaire isolatie: 500Vdc
  • isolatiecategorie: klasse A 105°C

Ringkerntrafo 50VA 2x18V / 2X1.38A | 5018

Velleman
5018 |16062009 |
5410329238155
kg
    Levertijd:geen voorraad artikel 2-4 werkdagen
Bestel
  • goedkeuring: EN 60742/BS3535
  • zekering: 130°C thermische zekering
  • spanning: 2 x 18V
  • stroom: 2 x 1.38A
  • regulatie: 12%
  • vermogen: 50VA
  • gewicht: 0.79kg
  • Ø: 93mm max.
  • hoogte: 40mm max.
  • bevestigingsbout: M6 x 45mm
  • moer: M6
  • metalen ring: Ø72mm
  • rubberen ring: Ø74mm
  • bedrading: 200mm PVC, 10mm gestript en vertind
    • primair: zwart - zwart : 1 x 230V
    • secundair: *rood - geel / *blauw - grijs (* = start)
  • primaire spanning: 230V / 50Hz
  • primaire-secundaire isolatie: 500Vdc
  • secundaire-secundaire isolatie: 500Vdc
  • isolatiecategorie: klasse A 105°C
