225VA Ringkern trafo's

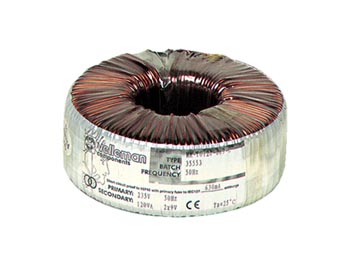

Ringkerntrafo 225VA 2x18V / 2x6.25A | 22518

Velleman
22518 | 06062009 |
5410329237967
kg
    Levertijd:geen voorraad artikel 2-4 werkdagen
Bestel
  • goedkeuring: EN 60742/BS3535
  • zekering: 130°C thermische zekering



  • spanning: 2 x 18V
  • stroom: 2 x 6.25A
  • regulatie: 6%
  • power: 225VA
  • gewicht: 2.70kg
  • Ø: 130mm max.
  • hoogte: 56mm max.
  • bevestigingsbout: M8 x 60mm
  • moer: M8
  • metalen ring: Ø92mm
  • rubberen ring: Ø96mm
  • bedrading: 200mm PVC, 10mm gestript en vertind
    • primair: zwart - zwart : 1 x 230V
    • secundair: *rood - geel / *blauw - grijs (* = start)
  • primaire spanning: 230V / 50Hz
  • primaire-secundaire isolatie: 500Vdc
  • secundaire-secundaire isolatie: 500Vdc
  • isolatiecategorie: klasse A 105°C

Ringkerntrafo 225VA 2x30V / 2x3.75A | 22530

Velleman
22530 | 16062009 |
5410329302375
kg
    Levertijd:geen voorraad artikel 2-4 werkdagen
Bestel
  • goedkeuring: EN 60742/BS3535
  • zekering: 130°C thermische zekering



  • spanning: 2 x 30V
  • stroom: 2 x 3.75A
  • regulatie: 6%
  • power: 225VA
  • gewicht: 2.70kg
  • Ø: 130mm max.
  • hoogte: 56mm max.
  • bevestigingsbout: M8 x 60mm
  • moer: M8
  • metalen ring: Ø92mm
  • rubberen ring: Ø96mm
  • bedrading: 200mm PVC, 10mm gestript en vertind
    • primair: zwart - zwart : 1 x 230V
    • secundair: *rood - geel / *blauw - grijs (* = start)
  • primaire spanning: 230V / 50Hz
  • primaire-secundaire isolatie: 500Vdc
  • secundaire-secundaire isolatie: 500Vdc
  • isolatiecategorie: klasse A 105°C
