L... | Lineaire IC's

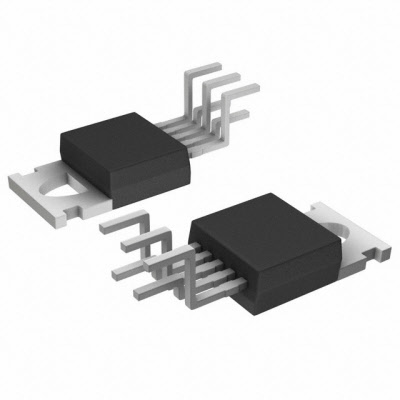

L165 3A Power amplifier TO-220-5

STMicroelectronics
L165 | ***V19 | 13122017
UITLOPEND NOG 19 STUKS OP VOORRAAD
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Power Amplifier
  • Output power 20W
  • Input Voltage: +/- 15V
  • Supply Voltage: +/- 18V
  • Uitgaande stroom: 3.5A
  • Bedrijfstemperatuur: -40...+150 °C
  • Montagetype: Through Hole
  • Behuizing : TO-220-5

L203b Darlington Transistor Arrays DIP16

STMicroelectronics
L203b | 05022017
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Driver Darlington Transistor Arrays
  • Configuratie: Array 7
  • Polariteit transistor: NPN
  • Collector-emitterspanning VCEO max.: 30 V
  • Maximale DC collectorstroom: 0.5 A
  • Bedrijfstemperatuur:-20..+70 °C
  • Montagetype: Through Hole
  • Behuizing : PDIP-16

L272 Op Amp dual DIP16

STMicroelectronics
L272 | ***V26 | 15062018
UITLOPEND NOG 26 STUKS OP VOORRAAD
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel

  • Type: Operationele versterkers - opamps Dual Hi-Gain Hi-Out
  • Number of Chanels: Dual, 2 Channel
  • GBP - Gain Bandwidth Product: 350 KHz
  • SR - Slew Rate: 1 V/us
  • CMRR - Common mode rejectiefactor:  dB
  • Ib - Ingangsinstelstroom :  uA
  • Vos - Ingangsoffsetspanning: 60 mV max
  • Voedingsspanning - Min:  V
  • Operationele Voeding:  mA
  • Uitschakeling:
  • Versterkertype:
  • Dubbele voedingsspanning:
  • Maximale dubbele voedingsspanning:
  • Minimale dubbele voedingsspanning:
  • Werkvoedingsspanning:
  • Pd - Vermogensverlies: 1.2 W
  • PSRR - Rejectiefactor voeding:  dB
  • voeding: Single, Dual
  • Bedrijfstemperatuur:-40...+150 °C
  • Montagetype: Through Hole
  • Behuizing : PDIP-16

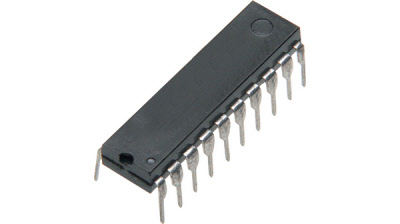

L293c IC Motor Driver DIP-20

STMicroelectronics
L293c | ***V3 | 21102016
UITLOPEND NOG 3 STUKS OP VOORRAAD
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel

  • Omschrijving: Push-Pull Four Channel/Dual H-Bridge Driver
  • Behuizing: DIP-20
  • Vormgeving: 4 voudig
  • Spanning input Vi : 7V
  • Stroom Iout: ..1.2A
  • Voeding Vs: 50V
  • Vss Logic Supply Voltage: 4.5..7V
  • Bedrijfstemperatuur: -40...+150 °C
  • Montagetype: Through Hole

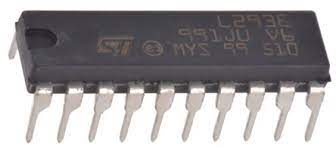

L293e IC Motor Driver DIP-20

STMicroelectronics
L293E | 10012022
kg
    Levertijd:geen voorraad artikel 1-4 werkdagen
Bestel
  • Omschrijving: MotorDriver, driver; push-pull; motor controller; DIP20; 1A; Channels: 4
  • Behuizing: DIP-20
  • Vormgeving: 4 voudig
  • Spanning: -
  • Stroom: ..1A
  • Voeding: 4.5 .. 36V
  • Bedrijfstemperatuur: -25...+70 °C
  • Montagetype: Through Hole

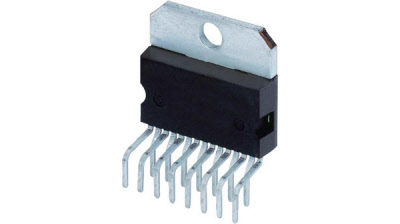

L296 IC Switching Regulator 4A Multiwatt15

STMicroelectronics
L296 | 02112016
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Omschrijving: High Current Switching Regulator
  • Behuizing: Multiwatt 15
  • Output Type: Verstelbaar
  • Ingangs spanning: 9..46V
  • Uitgaande stroom: 4A
  • Uitgangs voltage: 5.1..40V
  • Switching frequency: 100kHz
  • Aantal outputs: 1
  • Bedrijfstemperatuur: -40...+150 °C
  • Montagetype: Through Hole

L297 IC Motor Driver DIP-20

STMicroelectronics
L297 | 21102016
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel



  • Omschrijving: Steppen Motor Controller
  • Behuizing: DIP-20
  • Vormgeving: 4 voudig
  • Spanning input Vi : 7V
  • Voeding Vs: 10V
  • Bedrijfstemperatuur: -40...+150 °C
  • Montagetype: Through Hole

L298n IC Motor Driver Multiwatt15

STMicroelectronics
L298n | 21102016
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel

  • Omschrijving: Full Bridge Driver
  • Behuizing: Multiwatt 15
  • Vormgeving: Dual
  • Spanning: 46V
  • Stroom: ..2A
  • Voeding: 4.5 .. 7V
  • Bedrijfstemperatuur: -25...+130 °C
  • Montagetype: Through Hole

L387A Voltage Regulator TO-220-5

STMicroelectronics
L387A | ***V10 | 26042019 |
UITLOPEND NOG 9 STUKS OP VOORRAAD
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: LDO-spanningregelaars 5V 0.4A Very LDO
  • Output Voltage:  5V
  • Dropout Voltage: 0.4V
  • Input Voltage: 26V max
  • Output Current: 550 mA
  • Bedrijfstemperatuur: -55...+150 °C
  • Montagetype: Through Hole
  • Behuizing : Pentawatt TO-220-5

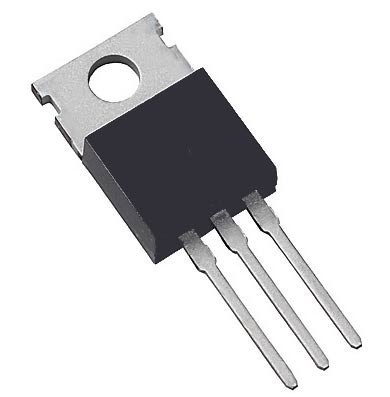

L4785CV LDO 8.5V 500mA TO-220

STMicroelectronics
L4785CV | ***V3 | 26112020
UITLOPEND NOG 3 STUKS OP VOORRAAD
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Very Low Drop Voltage Regulators
  • Output Voltage: 8.5V
  • Input Voltage: max 35V
  • Uitgaande stroom: 500mA
  • Bedrijfstemperatuur: -40...+150 °C
  • Montagetype: Through Hole
  • Behuizing : TO-220

L4902A 5V Regulator TO-220-5

STMicroelectronics
L4902A | **V11 | 26112020
UITLOPEND NOG +-/ 11 STUKS OP VOORRAAD
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Dual 5V Regulator with Reset and Disable
  • Output Voltage: 5V
  • Input Voltage: 28...60V
  • Io : 300mA
  • Bedrijfstemperatuur: -40...+150 °C
  • Montagetype: Through Hole
  • Behuizing : TO-220-5

L4904A 5V Regulator DIP-8

STMicroelectronics
L4904A | **V4 | 26112020
UITLOPEND NOG 4 STUKS OP VOORRAAD
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Dual 5V Regulator with Reset
  • Output Voltage: 5V
  • Input Voltage: 24...60V
  • Io : 50mA
  • Bedrijfstemperatuur: -40...+150 °C
  • Montagetype: Through Hole
  • Behuizing : DIP-8

L4916 Voltage Regulator DIP-8

STMicroelectronics
L4916 | **V1 | 26112020
UITLOPEND NOG 1 STUKS OP VOORRAAD
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Voltage Regulator Plus Filter
  • Output Voltage: 8.5V
  • Input Voltage: 28V
  • Bedrijfstemperatuur: -40...+150 °C
  • Montagetype: Through Hole
  • Behuizing : DIP-8

L4960 2.5A Power Switching Regulator TO-220-5

STMicroelectronics
L4960 | 26112020
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: L4960 2.5A Power Switching Regulator
  • Vo Output Voltage Range : 40V
  • Input Voltage: 50V
  • Iom : 2.5A
  • Bedrijfstemperatuur: -40...+150 °C
  • Montagetype: Through Hole
  • Behuizing : TO-220-5

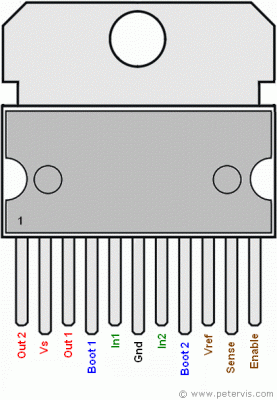

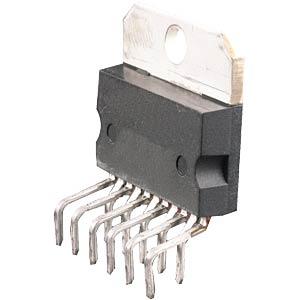

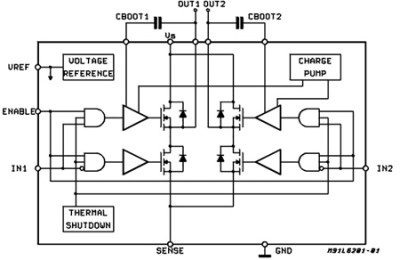

L6203 IC DMOS Full Bridge Driver Multiwatt11

STMicroelectronics
L6203 | 19022018
kg
    Levertijd:geen voorraad artikel info levertijd > info@brigatti.nl
Bestel

  • Omschrijving: DMOS Full Bridge Driver
  • Behuizing: Multiwatt 11
  • Vormgeving:
  • Spanning: 48V
  • Stroom: ..4A
  • Voeding: 12...48V
  • Bedrijfstemperatuur: -40...+150 °C
  • Montagetype: Through Hole

L6221A Quad Darlington Switch DIP16

STMicroelectronics
L6221A IC | ***V1 | 03122020
UITLOPEND NOG 1 STUKS OP VOORRAAD
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: L6221A Quad Darlington Switch
  • Supply Voltage Max Vs: 7V
  • Vo Output Voltage: 50V
  • Ic: 1.0A
  • Bedrijfstemperatuur: -40...+150 °C
  • Montagetype: Through Hole
  • Behuizing : PDIP-16
