Arduino orgineel

Arduino® UNO Rev3 | A000066

Arduino
ARDUINO-UNO-R3 24022014
7640152110092
    Levertijd:1-2 werkdagen
Bestel

De Arduino Uno is een microcontroller-board gebaseerd op de ATmega328. Volledige ondersteuning voor de microcontroller is aanwezig op het board: sluit het aan op een computer via USB of op een lichtnetadapter en u kunt aan de slag.

Nieuw aan de Uno ten opzichte van zijn voorgangers is dat de USB/serieel-driver van FTDI heeft plaatsgemaakt voor een ATmega16U2 (ATmega8U2 t/m versie R2), die geprogrammeerd is als USB/serieel-omzetter.

  • digitale I/O-pinnen: 14 (waarvan 6 inzetbaar als PWM-uitgang)
  • analoge ingangen: 6
  • inhoud: een 16 MHz-klokkristal, een UBS-aansluiting, een voedingsaansluiting, een ICSP-header en een resetknop



  • voeding: 6-20 V max. (adapter niet meegeleverd)
  • microcontroller: ATmega328
  • digitale I/O-pinnen: 14 (waarvan 6 inzetbaar als PWM-uitgang)
  • DC-stroom per I/O-pin: 40 mA
  • DC-stroom per 3.3 V-pin: 50 mA
  • analoge ingangen: 6
  • flashgeheugen: 32 KB (ATmega328) waarvan 0.5 KB voor de bootloader
  • SRAM: 2 kB (ATmega328)
  • EEPROM: 1 kB (ATmega328)
  • kloksnelheid: 16 MHz

Voor meer informatie klik hier

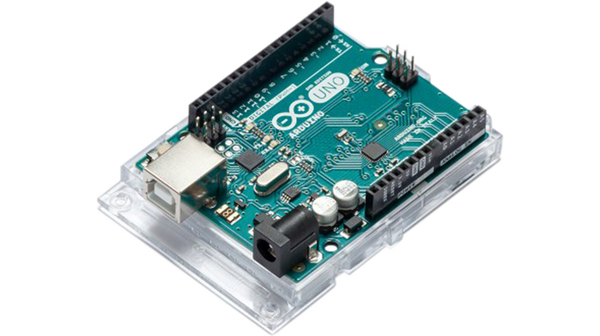

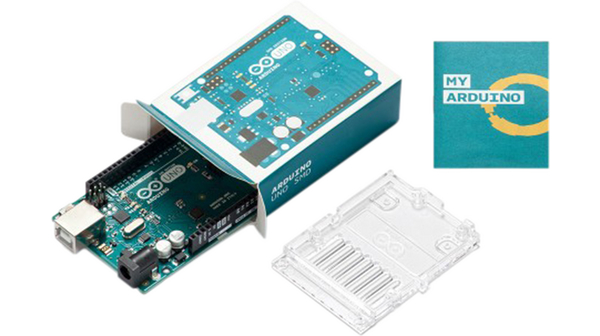

Arduino® Uno Rev3 SMD | A000073

Arduino
A000073 | 01102018
    Levertijd:1-2 werkdagen
Bestel

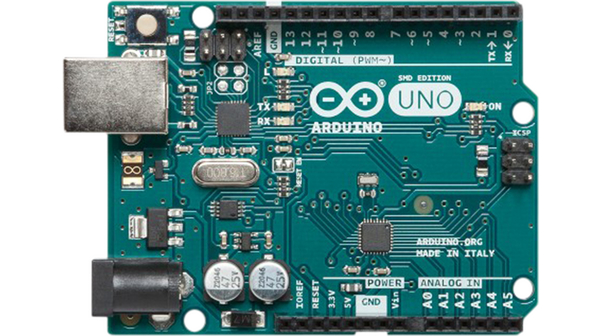

ARDUINO™ UNO open-source prototyping platform

A microcontroller board based on the ATMega328 from Atmel.
This board contains all the key features to ensure you can start programming quickly and easily.

This board features:
• 14 digital I/O interfaces (6 of which can be used as PWM output)
• 6 analogue inputs
• 16 MHz crystal oscillator
• USB port
• Power supply
• ICSP header
• Reset

Technical data:
• ATMega328
• Operating voltage: 5 V
• Input voltage: 7 - 12 V
• Input voltage (limit): 6 - 20 V
• Digital inputs/outputs: 14
• Analogue inputs: 6
• DC current 40 mA (I/O)/50 mA (3.3 V)
• Flash memory: 32 KB
• SRAM: 2 KB
• EEPROM: 1 KB
• Clock speed: 16 MHz

Voor meer informatie klik hier




ATMega328 - Microcontroller Arduino® | A000048

Arduino
ARD-A000048 240142014
7640152110528
    Levertijd:1-2 werkdagen
Bestel
  • ATMega328 with pre-loaded Arduino UNO boot loader

Arduino Leonardo without headers | A000052

Arduino
ARD-A000052 14042014
7640152111129
    Levertijd:1-2 werkdagen
Bestel

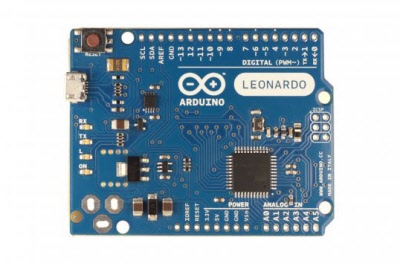

The Arduino Leonardo is a microcontroller board based on the ATmega32u4. It has 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a micro USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.

The Leonardo differs from all preceding boards in that the ATmega32u4 has built-in USB communication, eliminating the need for a secondary processor. This allows the Leonardo to appear to a connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial / COM port. It also has other implications for the behavior of the board.

Microcontroller ATmega32u4
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limit) 6-20V
Digital I/O Pins 20
PWM Digital I/O Pins 7
Analog Input Pins 12
DC Current per I/O Pin 40 mA
DC Current for 3.3V Pin 50 mA
Flash Memory 32 KB
Flash Memory for Bootloader 4 KB
SRAM 2.5 KB
EEPROM 1 KB
Clock Speed 16 MHz

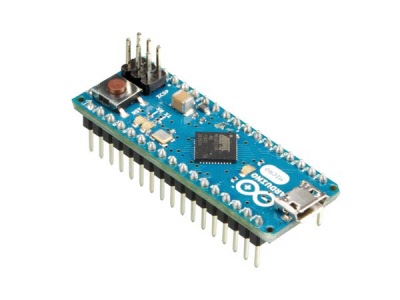

Arduino Micro | A000053

Arduino
ARD-A000053 24042014
7640152111136
    Levertijd:1-2 werkdagen
Bestel

The Arduino Micro is a microcontroller board based on the ATmega32u4, developed in conjunction with Adafruit. It has 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a micro USB connection, an ICSP header and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a micro USB cable to get started. It has a form factor that enables it to be easily placed on a breadboard.

The Micro is similar to the Arduino Leonardo in that the ATmega32u4 has built-in USB communication, eliminating the need for a secondary processor. This allows the Micro to appear to a connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial / COM port. It also has other implications for the behavior of the board

Microcontroller ATmega32u4
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limit) 6-20V
Digital I/O Pins 20
PWM Digital I/O Pins 7
Analog Input Pins 12
DC Current per I/O Pin 40 mA
DC Current for 3.3V Pin 50 mA
Flash Memory 32 KB
Flash Memory for Bootloader 4 KB
SRAM 2.5 KB
EEPROM 1 KB
Clock Speed 16 M

Arduino DUE | A000062

Arduino
ARD-A000062 24042014
7640152111228
    Levertijd:1-2 werkdagen
Bestel

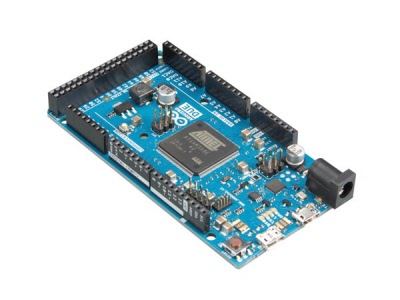

The Arduino Due is a microcontroller board based on the Atmel SAM3X8E ARM Cortex-M3 CPU. It is the first Arduino board based on a 32-bit ARM core microcontroller. It has 54 digital input/output pins (of which 12 can be used as PWM outputs), 12 analog inputs, 4 UARTs (hardware serial ports), a 84 MHz clock, an USB OTG capable connection, 2 DAC (digital to analog), 2 TWI, a power jack, an SPI header, a JTAG header, a reset button and an erase button.

The board contains everything needed to support the microcontroller; simply connect it to a computer with a micro-USB cable or power it with a AC-to-DC adapter or battery to get started. The Due is compatible with all Arduino shields that work at 3.3V and are compliant with the 1.0 Arduino pinout.

Microcontroller AT91SAM3X8E
Operating Voltage 3.3V
Input Voltage (recommended) 7-12V
Input Voltage (limit) 6-20V
Digital I/O Pins 54
PWM Digital I/O Pins 12
Analog Input Pins 12
Analog Output Pins 2 (DAC)
DC Current per I/O Pin 130 mA
DC Current for 3.3V Pin 800 mA
DC Current for 5V Pin 800 mA
SRAM 96 KB (64
Clock Speed 84 MHz

Arduino Mega2560 Rev3 | A000067

Arduino
ARD-A000067 25042014
7640152110085
    Levertijd:1-2 werkdagen
Bestel

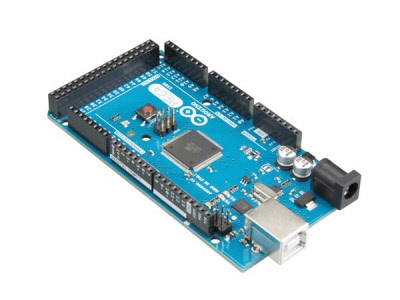

The Arduino Mega 2560 is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 14 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Mega is compatible with most shields designed for the Arduino Uno, Duemilanove or Diecimila.

The Mega 2560 is an update to the Arduino Mega, which it replaces.

Additional features coming with the R3 version are:
- ATmega16U2 instead of 8U2 as USB-to-serial converter
- 1.0 pinout: added SDA and SCL pins for TWI communication placed near to the AREF pin and two other new pins placed near to the RESET pin, the IOREF that allows the shields to adapt to the voltage provided from the board, and the second one is an unconnected pin that is reserved for future purposes.
- stronger RESET circuit.

Arduino Motor Shield Rev3 | A000079

Arduino
52 ARD-A000079 25042014
7640152110184
    Levertijd:geen voorraad levertijd week 52 2018
Bestel
The Arduino Motor Shield is based on the L298, which is a dual full-bridge driver designed to drive inductive loads such as relays, solenoids, DC and stepping motors. It lets you drive two DC motors with your Arduino board, controlling the speed and direction of each one independently. You can also measure the current absorption of each motor, among other features. The shield is TinkerKit compatible, which means you can quickly create projects by plugging TinkerKit modules to the board.

This shield has two separate channels, called A and B, that each use 4 of the Arduino pins to choose the rotation direction, vary the speed, fast brake or sense the current that is flowing through the motor. In total there are 8 pins in use on this shield. You can use each channel separately to drive two DC motors or combine them to drive one bipolar stepper motor. The shield can supply 2 amperes per channel, for a total of 4 amperes maximum.

This shield has the 1.0 standard pinout that consist in 4 additional pins: 2 of them placed near the AREF pin, that are used for TWI communication, and the other 2 are placed near the RESET pin. The IOREF pin is used to adapt the shield to the board on which is mounted. The last one is not connected and is reserved for future use.

Arduino Mini 05 without Headers | A000088

Arduino
ARD-A000088 25042014
7640152111266
    Levertijd:1-2 werkdagen
Bestel
The Arduino Mini is a small microcontroller board intended for use on breadboards and when space is at a premium. The revision 05 has a new package for the ATmega328, which enables all components to be on the top of the board. It also has an on-board reset button. The 05 version has the same pin configuration as revision 04.

Additional features coming with the 05 version are:
- new PCB layout and design
- on-board reset button

The Arduino Mini has 14 digital input/output pins (of which 6 can be used as PWM outputs), 8 analog inputs, and a 16 MHz crystal oscillator. It can be programmed with the USB Serial adapter or other USB or RS232-to-TTL serial adapters.

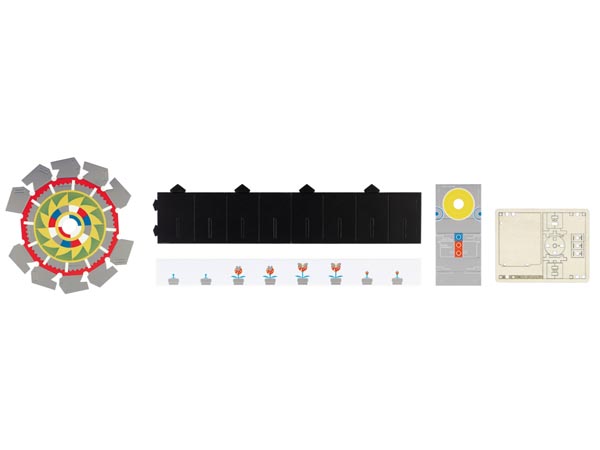

Arduino Starter Kit (English) | K000007

Arduino
K000007 25042014
5410329586096
    Levertijd:op aanvraag
Bestel

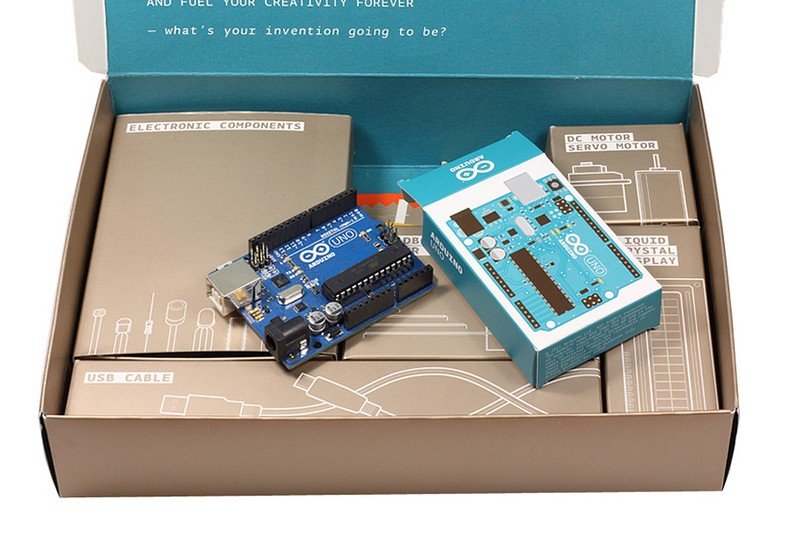

This kit walks you through the basics of Arduino and electronics in a hands-on way. You will be able to build 15 projects using components that let you control the physical world through different kinds of sensors and actuators.

Once you have mastered this knowledge, you will have a palette of code and circuits to create something beautiful, and make someone smile with what you invent. So build, hack and share!

Projects you can make:
- 01 GET TO KNOW YOUR TOOLS: an introduction to the concepts you'll need to use this kit
- 02 SPACESHIP INTERFACE: design the control panel for your starship
- 03 LOVE-O-METER: measure how hot-blooded you are
- 04 COLOUR MIXING LAMP: produce any colour with a lamp that uses light as an input
- 05 MOOD CUE: clue people in to how you're doing
- 06 LIGHT THEREMIN: create a musical instrument you play by waving your hands
- 07 KEYBOARD INSTRUMENT: play music and make some noise with this keyboard
- 08 DIGITAL HOURGLASS: a light-up hourglass that can stop you from working too much
- 09 MOTORIZED PINWHEEL: a coloured wheel that will make your head spin
- 10 ZOETROPE: create a mechanical animation you can play forward or backward
- 11 CRYSTAL BALL: a mystical tour to answer all your tough questions
- 12 KNOCK LOCK: tap out the secret code to open the door
- 13 TOUCHY-FEEL LAMP: a lamp that responds to your touch
- 14 TWEAK THE ARDUINO LOGO: control your personal computer from your Arduino
- 15 HACKING BUTTONS: create a master control for all your devices!

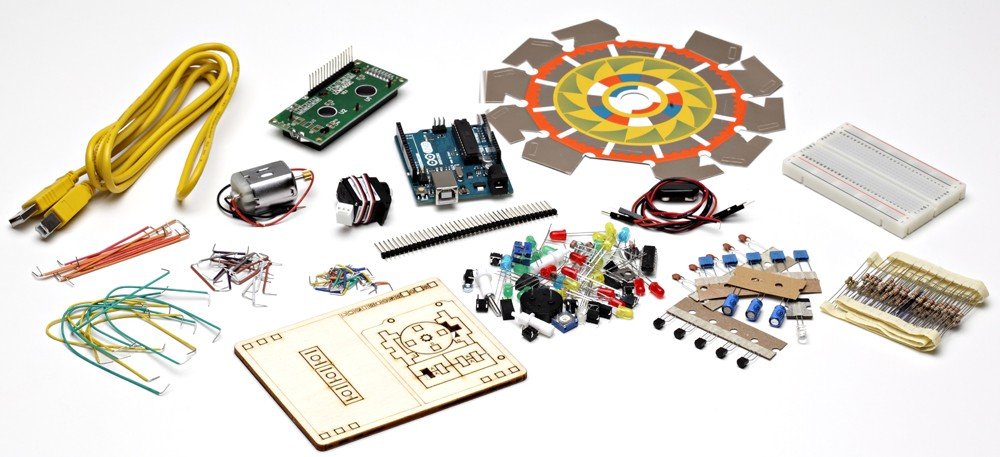

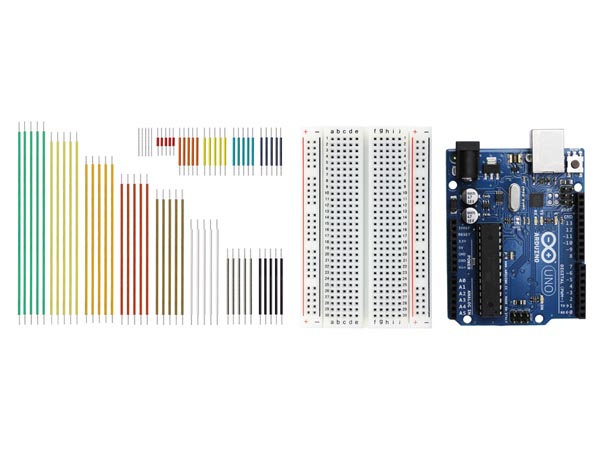

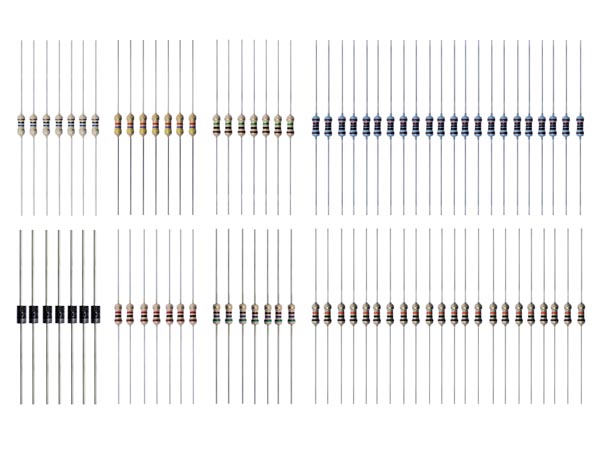

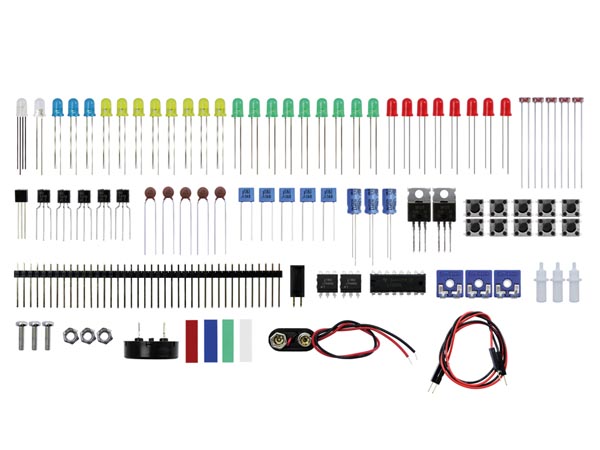

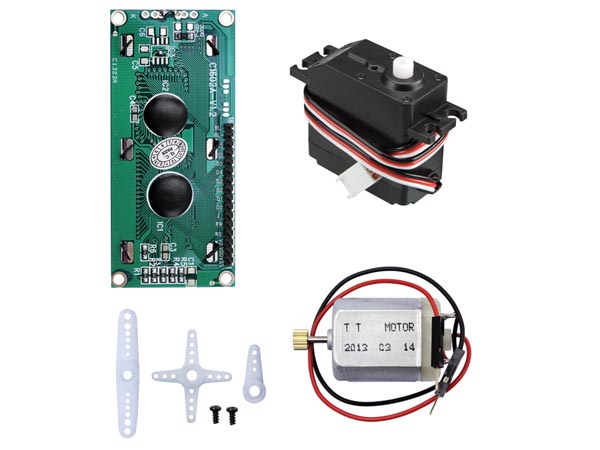

The kit includes: 1 x Arduino Projects Book (170 pages); 1 x Arduino UNO rev.3; 1 x USB cable; 1 x breadboard; 1 x wood base; 1 x 9 V battery snap; 70 x hard cable; 2 x flexible cable; 6 x photoresistor; 3 x trimmer d10 kohm; 10 x push button; 1 x temperature sensor; 1 x tilt sensor; 1 x LCD (16x2i); 1 x LED (white); 1 x LED (RGB); 8 x LED (red); 8 x LED (green); 8 x LED (yellow); 3 x LED (blue); 1 x CC motor 6/9 V; 1 x servomotor; 1 x piezo; 1 x H bridge; 2 x photocoupler; 5 x BC547; 2 x IRF520; 5 x 100 nF capacitor; 3 x100 µF capacitor; 5 x 100 pF capacitor; 5 x 1N4007 diode; 3 x transparent jelly (rosso, verde, blu); 1 x male strip connector (40x1); 20 x 220 ohm resistor; 5 x 560 ohm resistor; 5 x 1 kohm resistor; 5 x 4.7 kohm resistor; 10 x 10 kohm resistor; 5 x 1 Mohm resistor; 5 x 10 Mohm resistor.
