6mm as gekarteld Logaritmisch | Stereo | Potentiometers

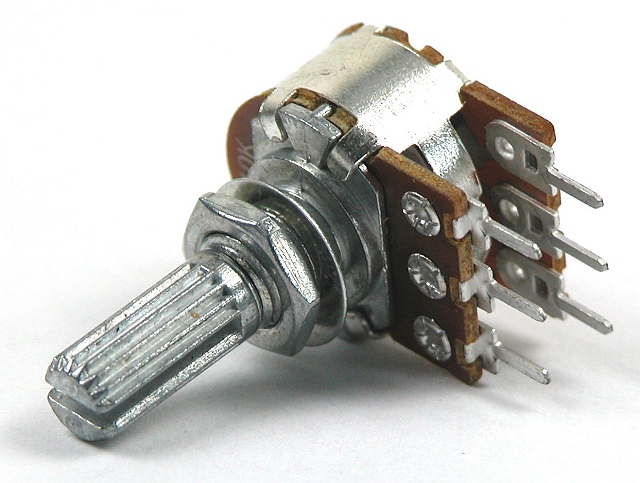

10K Ohm Potmeter 6mm gekarteld as stereo logaritmisch

CTR
R16 10K-SB | 27022013
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: potmeter met gekarteld as stereo
  • Weerstand: 100K +/- 20%
  • Karakteristiek: logarithmisch
  • Power: 125mW
  • Werkspanning maximaal: 200V
  • Rotation angle: 300°
  • Diameter as: 6mm
  • Lengte as: 15mm
  • Afmeting corpus dxh: 17x9.2mm
  • Materiaal baan: koolstof

50K Ohm Potmeter 6mm gekarteld as stereo logaritmisch

CTR
R16 50K-SB | 27022013
kg
    Levertijd:geen voorraad artikel levertijd 4-6 werkdagen
Bestel
  • Type: potmeter met gekarteld as stereo
  • Weerstand: 50K +/- 20%
  • Karakteristiek: logarithmisch
  • Power: 125mW
  • Werkspanning maximaal: 200V
  • Rotation angle: 300°
  • Diameter as: 6mm
  • Lengte as: 15mm
  • Afmeting corpus dxh: 17x9.2mm
  • Materiaal baan: koolstof

100K Ohm Potmeter 6mm gekarteld as stereo logaritmisch

CTR
R16 100K-SB | 27022013
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: potmeter met gekarteld as stereo
  • Weerstand: 100K +/- 20%
  • Karakteristiek: logarithmisch
  • Power: 125mW
  • Werkspanning maximaal: 200V
  • Rotation angle: 300°
  • Diameter as: 6mm
  • Lengte as: 15mm
  • Afmeting corpus dxh: 17x9.2mm
  • Materiaal baan: koolstof

500K Ohm Potmeter 6mm gekarteld as stereo logaritmisch

Alpha
VRA 100S500 | ***V9 | 27022013
UITLOPEND NOG 9 STUKS OP VOORRAAD
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Power: 0.2W
  • Insulation restist.: 100MOhm/500V DC
  • Test voltage: 500VAC / 1min.
  • Rotation angle:300° +/- 5%
