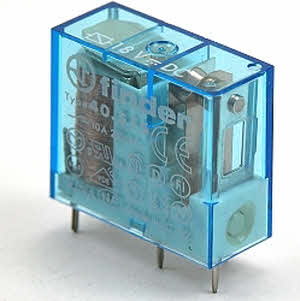

1 x wissel 5mm raster Insteek- printrelais

6Vdc Insteek-/printrelais 1xwissel 10A - raster 5mm | 40519006

Finder
40.51.9.006 | REL40519.6 | 20092011
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Spoelspanning: 6Vdc
  • Maximale schakelspanning: 250Vac
  • Maximale continustroom: 10A
  • Temperatuurbreik: -40...+85 °C
  • Contact materiaal: AgNi
  • Pitch: 5mm

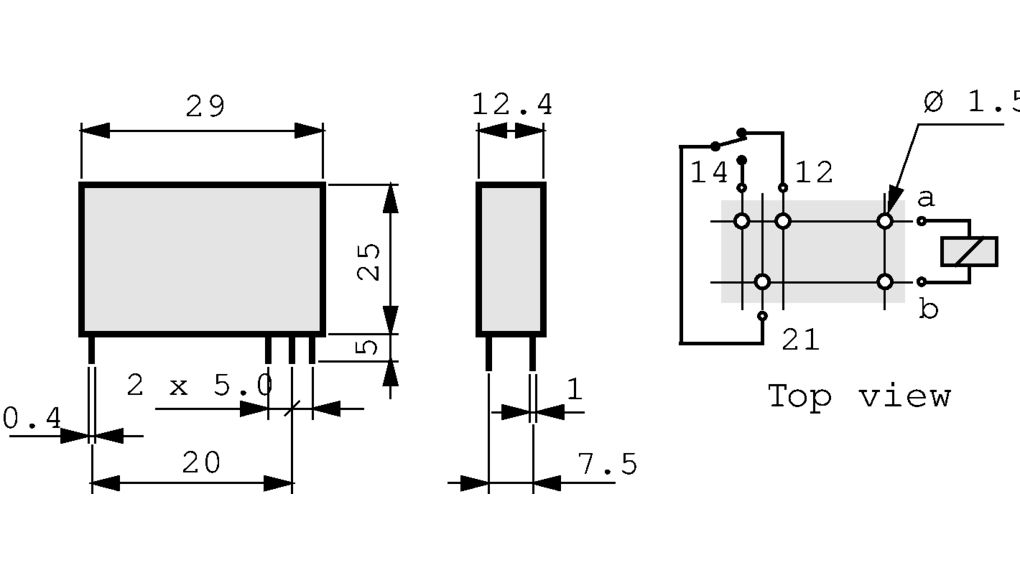

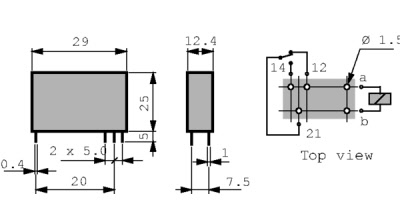

  • Afmeting lxbxh: 29x12.4x25mm
  • Bescherming waarde: IP 40

12Vdc Insteek-/printrelais 1xwissel 10A - raster 5mm | 40519012

Finder
40.51.9.012.0000 | REL40519.12 | 22092011
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Spoelspanning: 12Vdc
  • Maximale schakelspanning: 250Vac
  • Maximale continustroom: 10A
  • Temperatuurbreik: -40...+85 °C
  • Contact materiaal: AgNi
  • Pitch: 5mm
  • Afmeting lxbxh: 29x12.4x25mm
  • Bescherming waarde: IP 40

24Vdc Insteek-/printrelais 1xwissel 10A - raster 5mm | 40519024

Finder
40.51.9.024.0000 REL 40519.24 22092011
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type Insteek print relais, monostable
  • Contacts: 1 x wissel
  • Spoelspanning: 24Vdc
  • Maximale schakelspanning: 250Vac
  • Maximale schakelstroom: 10A
  • Schakel capaciteit: 2500VA
  • R coil: 900 Ohm
  • P coil: 650 mW
  • Temperatuurbreik: -40...+85 °C
  • Contact materiaal: AgNi
  • Pitch: 5mm
  • Afmeting lxbxh: 29x12.4x25mm
  • Bescherming waarde: IP 40

5Vdc Insteek-/printrelais 1xwissel 16A - raster 5mm | 40617005

Finder
40.61.7.005 | REL40617.5 | 11032016
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • type PCB relais 40 serie
  • Finder code 40.61.7.005
  • Aantal contacten: 1 wissel contact
  • Max. continustroom/max. inschakelstroom A: 16A / max 30A
  • Nominale spanning/max. schakelspanning V AC: 250V
  • Max. schakelvermogen AC1 VA: 4000
  • Max. schakelvermogen AC15 (230 V AC) VA: 1000
  • Motorbelasting (1- fasemotor, AC3) (230 V AC) kW: 0.55
  • Max. schakelstroom DC1: 30/110/220V A: 16 / 0.3 /0.12
  • Min. schakelbelasting mW (V/mA): 500
  • Contactmateriaal standaard: AgCdO
  • Spoel nominale spanningen (UN) V DC: 5
  • Spoel nominaal vermogen DC/DC sensitief W: 0.65 / 0.5
  • Temperatuurbreik: -40...+85 °C
  • Contact materiaal: AgNi
  • Pitch: 5mm

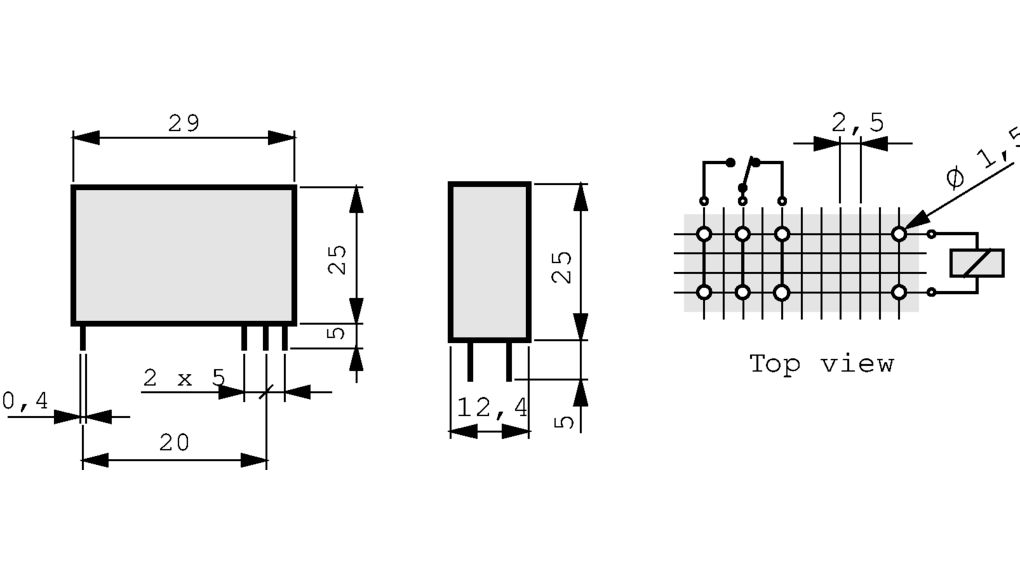

  • Afmeting lxbxh: 29x12.4x25mm
  • Bescherming waarde: IP 40

6Vdc Insteek-/printrelais 1xwissel 16A - raster 5mm | 40619006

Finder
REL40619.6 | 22092011
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Spoelspanning: 6Vdc
  • Maximale schakelspanning: 250Vac
  • Maximale continustroom: 16A
  • Temperatuurbreik: -40...+85 °C
  • Contact materiaal: AgNi
  • Pitch: 5mm
  • Afmeting lxbxh: 29x12.4x25mm
  • Bescherming waarde: IP 40

12Vdc Insteek-/printrelais 1xwissel 16A - raster 5mm | 40619012

Finder
40.61.9.012.4000 | REL40619.12 | 22092011 |
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type Insteek print relais, monostable
  • Contacts: 1 x wissel
  • Spoelspanning: 12Vdc
  • Maximale schakelspanning: 250Vac
  • Maximale schakelstroom: 16A
  • Schakel capaciteit: 4000VA
  • R coil: 220 Ohm
  • P coil: mW
  • Temperatuurbreik: -40...+85 °C
  • Contact materiaal: AgSnO2
  • Pitch: 5mm
  • Afmeting lxbxh: 29x12.4x25mm
  • Bescherming waarde: IP 40

24Vdc Insteek-/printrelais 1xwissel 16A - raster 5mm | 40619024

Finder
40.61.9.024.000 | REL40619.24 | 22092011
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Spoelspanning: 24Vdc
  • Maximale schakelspanning: 250Vac
  • Maximale continustroom: 16A
  • Temperatuurbreik: -40...+85 °C
  • Contact materiaal: AgNi
  • Pitch: 5mm
  • Afmeting lxbxh: 29x12.4x25mm
  • Bescherming waarde: IP 40

48Vdc Insteek-/printrelais 1xwissel 16A - raster 5mm | 40619048

Finder
40.61.9.048.0000 | REL40619.48 | 22092011
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Spoelspanning: 48Vdc
  • Maximale schakelspanning: 250Vac
  • Maximale continustroom: 16A
  • Temperatuurbreik: -40...+85 °C
  • Contact materiaal: AgNi
  • Pitch: 5mm
  • Afmeting lxbxh: 29x12.4x25mm
  • Bescherming waarde: IP 40
