4 x wissel 55-serie Miniatuur vermogenrelais

6Vdc Industrierelais insteek/soldeer 4xwissel 7A | 553490060040

Finder
55.34.9.006.0040 | REL 553496 | 15102011
kg
    Levertijd:prijs en levertijd op aanvraag | sales@brigatti.nl
  • Extremely compact, mono-stable power relay with AC or DC coils according to preference
  • Suitable for printed boards or plug-in base installation on 35 mm DIN rails
  • Various time, indicator and EMV modules, which are simply plugged into the lower area of the base, are available for selection for plug-in bases
  • Type: PCB Relais 4xwissel 55.34.9.06.0040
  • Contacts 4 change-over (CO)
  • Ucoil 6 VDC
  • Rcoil 40 Ohm
  • Pcoil -
  • Contact materiaal AgNi
  • Testspanning 3.6
  • Protection rating IP 40
  • Schakelspanning 250 VAC
  • Switching current 7 A 250 VAC
  • Switchingcapaciteit 1750 VA
  • Afmetingen L x B x H 27.5 x 21 x 33.5 mm
  • Temperatuurbereik -40...+85 °C

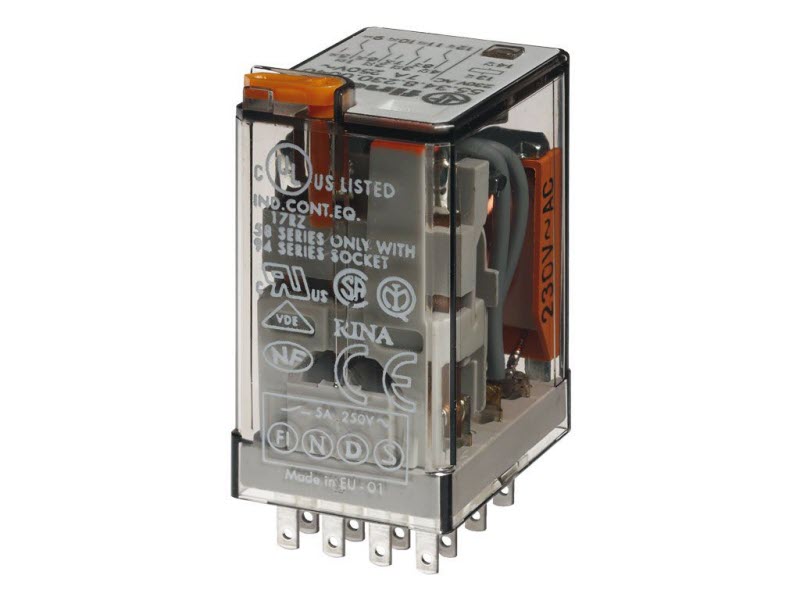

12Vdc Industrierelais insteek/soldeer 4xwissel 7A | 553490120040

Finder
55.34.9.012.0040 | REL 5534912 | 15102011
801282307943
kg
    Levertijd:prijs en levertijd op aanvraag | sales@brigatti.nl
  • Extremely compact, mono-stable power relay with AC or DC coils according to preference
  • Suitable for printed boards or plug-in base installation on 35 mm DIN rails
  • Various time, indicator and EMV modules, which are simply plugged into the lower area of the base, are available for selection for plug-in bases
  • Type: PCB Relais 4xwissel 55.34.9.012.0040
  • Contacts 4 change-over (CO)
  • Ucoil 12 VDC
  • Rcoil 140 Ohm
  • Pcoil 1 W
  • Contact materiaal AgNi
  • Testspanning 3.6
  • Protection rating IP 40
  • Schakelspanning 250 VAC
  • Switching current 7 A 250 VAC
  • Switchingcapaciteit 1750 VA
  • Afmetingen L x B x H 27.5 x 21 x 33.5 mm
  • Temperatuurbereik -40...+85 °C



24Vdc Industrierelais insteek/soldeer 4xwissel 7A | 553490240040

Finder
55.34.9.024.0040 | REL 5534924 | 15102011
8012823076645
kg
    Levertijd:prijs en levertijd op aanvraag | sales@brigatti.nl
  • Extremely compact, mono-stable power relay with AC or DC coils according to preference
  • Suitable for printed boards or plug-in base installation on 35 mm DIN rails
  • Various time, indicator and EMV modules, which are simply plugged into the lower area of the base, are available for selection for plug-in bases
  • Type: PCB Relais 4xwissel 55.34.9.024.0040
  • Contacts 4 change-over (CO)
  • Ucoil 24 VDC
  • Rcoil 600 Ohm
  • Pcoil 1 W
  • Contact materiaal AgNi
  • Testspanning 3.6
  • Protection rating IP 40
  • Schakelspanning 250 VAC
  • Switching current 7 A 250 VAC
  • Switchingcapaciteit 1750 VA
  • Afmetingen L x B x H 27.5 x 21 x 33.5 mm
  • Temperatuurbereik -40...+85 °C



24Vac Industrierelais insteek/soldeer 4xwissel 7A | 553480240040

Finder
55.34.8.024.0040 | REL 5534824 | 15102011
8012823079424
kg
    Levertijd:prijs en levertijd op aanvraag | sales@brigatti.nl
  • Extremely compact, mono-stable power relay with AC or DC coils according to preference
  • Suitable for printed boards or plug-in base installation on 35 mm DIN rails
  • Various time, indicator and EMV modules, which are simply plugged into the lower area of the base, are available for selection for plug-in bases
  • Type: PCB Relais 4xwissel 55.34.8.024.0040
  • Contacts 4 change-over (CO)
  • Ucoil 24 Vac
  • Rcoil 190 Ohm
  • Pcoil 1.5 W
  • Contact materiaal AgNi
  • Testspanning 3.6
  • Protection rating IP 40
  • Schakelspanning 250 VAC
  • Switching current 7 A 250 VAC
  • Switchingcapaciteit 1750 VA
  • Afmetingen L x B x H 27.5 x 21 x 33.5 mm
  • Temperatuurbereik -40...+85 °C

48Vdc Industrierelais insteek/soldeer 4xwissel 5A | 553490480040

Finder
55.34.9.048.0040 | grijze bak | REL 5534948 | 15102011
8012823081182
kg
    Levertijd:prijs en levertijd op aanvraag | sales@brigatti.nl
  • Extremely compact, mono-stable power relay with AC or DC coils according to preference
  • Suitable for printed boards or plug-in base installation on 35 mm DIN rails
  • Various time, indicator and EMV modules, which are simply plugged into the lower area of the base, are available for selection for plug-in bases
  • Type: PCB Relais 4xwissel 55.34.9.048.0040
  • Contacts 4 change-over (CO)
  • Ucoil 48 VDC
  • Rcoil 2400 Ohm
  • Pcoil 1 W
  • Contact materiaal AgNi
  • Testspanning 3.6
  • Protection rating IP 40
  • Schakelspanning 250 VAC
  • Switching current 7 A 250 VAC
  • Switchingcapaciteit 1750 VA
  • Afmetingen L x B x H 27.5 x 21 x 33.5 mm
  • Temperatuurbereik -40...+85 °C

230Vac Industrierelais insteek/soldeer 4xwissel 7A | 553482300040

Finder
55.34.8.230.0040 | REL 55348230 | 15102011
kg
    Levertijd:prijs en levertijd op aanvraag | sales@brigatti.nl
  • Extremely compact, mono-stable power relay with AC or DC coils according to preference
  • Suitable for printed boards or plug-in base installation on 35 mm DIN rails
  • Various time, indicator and EMV modules, which are simply plugged into the lower area of the base, are available for selection for plug-in bases
  • Type: PCB Relais 4xwissel 55.34.8.230.0040
  • Contacts 4 change-over (CO)
  • Ucoil 230 Vac
  • Rcoil 17000 Ohm
  • Pcoil 1.5 W
  • Contact materiaal AgNi
  • Testspanning 3.6
  • Protection rating IP 40
  • Schakelspanning 250 VAC
  • Switching current 7 A 250 VAC
  • Switchingcapaciteit 1750 VA
  • Afmetingen L x B x H 27.5 x 21 x 33.5 mm
  • Temperatuurbereik -40...+85 °C
