Home
>
Componenten | Elektronica
>
Schakelaars
>
Schuif | schakelaars
Schuif | schakelaars
Schuif | schakelaars

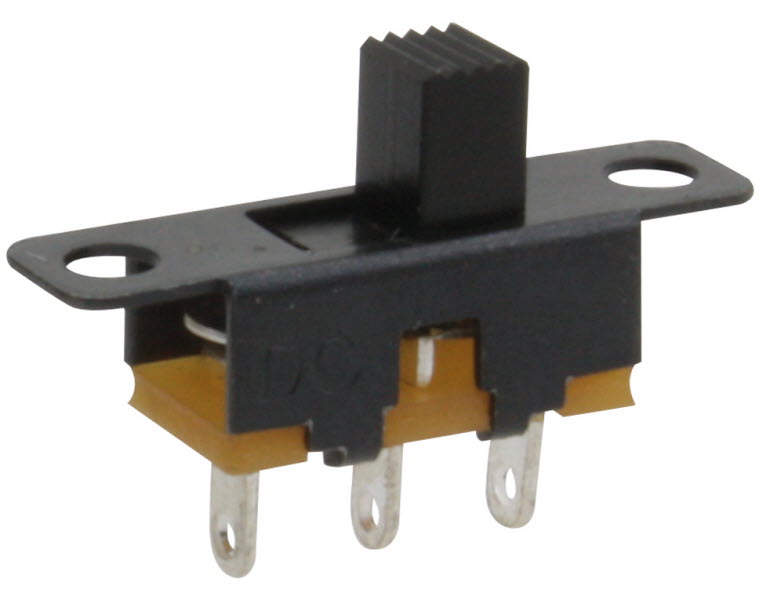

Schuifschakelaar 19/12mm 30Vdc - 0.3A - aan/aan | SS1
Donau
SS 1 | 07032018
kg
Levertijd:
voorraad artikel 1-2 werkdagen
Bestel
Lengte bevestiging: 19mm
Lengte x breedte x hoogte (huis): 11.4x5.1x5.2mm
Hoogte knop: 5mm

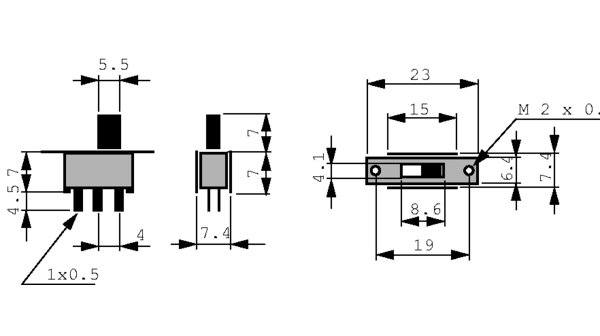

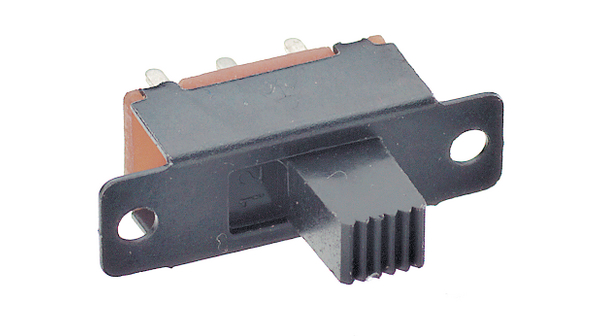

Schuifschakelaar 30Vdc - 0.3A - 2x aan/aan | SAB22BE071042
Eledis
SAB-22BE-07-1042 | SS3 | 29112018
kg
Levertijd:
voorraad artikel 1-2 werkdagen
Bestel
Type: schuifschakelaar
2 x aan-aan
Lengte bevestiging: 19mm
Lengte x breedte x hoogte (huis): 23x7.4x5.7mm
Hoogte knop: 7mm
Pitch: 4mm
Paneel bevestiging
Aansluiting: Trough Hole
Schuifschakelaar 20/11mm 150Vdc - 0.1A - 1 x wissel | SS5
Unbranded
SS 5 | 07032014
kg
Levertijd:
voorraad artikel 1-2 werkdagen
Bestel
Lengte bevestiging: 15mm
Lengte x breedte x hoogte (huis): 11.3x5.9x5mm
Hoogte knop: 5mm
Schuifschakelaar 36mm 250Vdc - 3.0A - 2 x wissel | SS9
Unbranded
SS 9 | 07032014
kg
Levertijd:
voorraad artikel 1-2 werkdagen
Bestel
Lengte bevestiging: 30.8mm
Lengte x breedte x hoogte (huis): 36x11x6.6mm
Schuifschakelaar 125Vac - 0.25A - 1 x wissel | SLS121PC04
Unbranded
SLS121PC04 | ***V28 | 07032014
UITLOPEND NOG 28 STUKS OP VOORRAAD
kg
Levertijd:
voorraad artikel 1-2 werkdagen
Bestel
SPDT
Lengte bevestiging: -
Lengte x breedte x hoogte (huis): 5.7x11.1x5.3mm
Knop hoogte 4.4mm
PCB aansluiting
Schuifschakelaar - 1 x aan/aan | T561
Monacor
T-561 | ***V2 | 07032014
UITLOPEND NOG 2 STUKS OP VOORRAAD
kg
Levertijd:
voorraad artikel 1-2 werkdagen
Bestel
Lengte bevestiging: -
Lengte x breedte x hoogte (huis): 17.1x7.5x7.5mm
Hoogte knop: 10mm
Hoogte inclusief aansluitpennen: 17mm

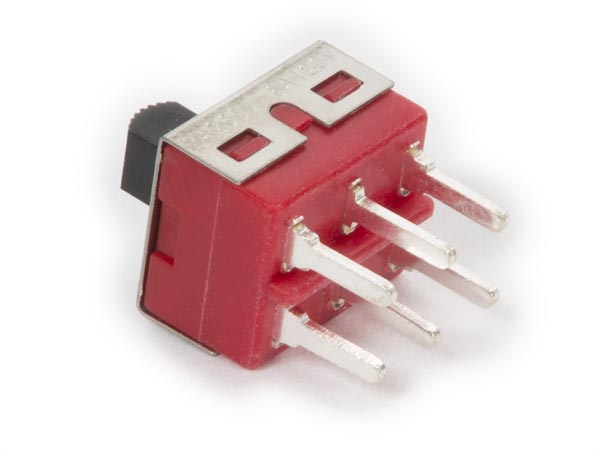

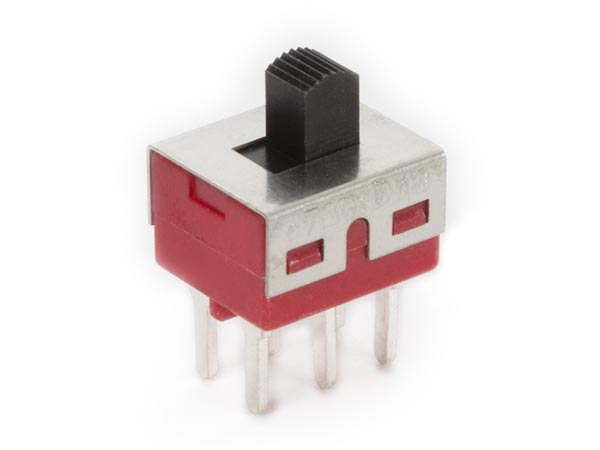

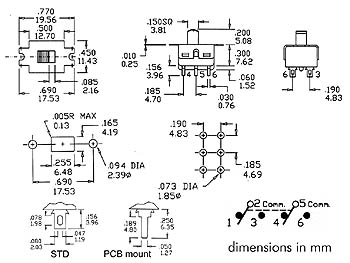

Schuifschakelaar 2xom on-on PCB | TS11P
Velleman
TS-11P | 26022014
5410329268046
kg
Levertijd:
voorraad artikel 1-2 werkdagen
Bestel
schakelstand:
links: on
(TERM. COMM. : 2-1, 5-4)
midden: geen
rechts: on
(TERM. COMM. : 2-3, 5-6)
contacten:
6A met resistieve belasting van 120Vac of 28Vdc
2A met resistieve belasting van 250Vac
elektrische levensduur: 30000 omschakelingen bij max. belasting
contactweerstand: aanvankelijk max. 10mohm
isolatieweerstand: min. 1000Mohm
diëlektrische sterkte: 1000Vrms op zeeniveau
werktemperatuur: -30°C tot +85°C
PCB montage
materialen:
huls: diallyl phthalaat (DAP)
hendel: nylon
behuizing: roestvrij staal
contacten: verzilverd
middencontacten en aansluitingen: verzilverd koper
Schuifschakelaar - 3 standen | S531
Unbranded
S531 | ***V17 | 07032014
UITLOPEND NOG 17 STUKS OP VOORRAAD
kg
Levertijd:
voorraad artikel 1-2 werkdagen
Bestel
Schuifschakelaar haaks PCB
Aantal aansluitingen: 4
Lengte x breedte x diep (huis): 15x5.6x6mm
Hoogte knop: 5mm
Hoogte inclusief aansluitpennen: 11mm
!
