Productspecificaties

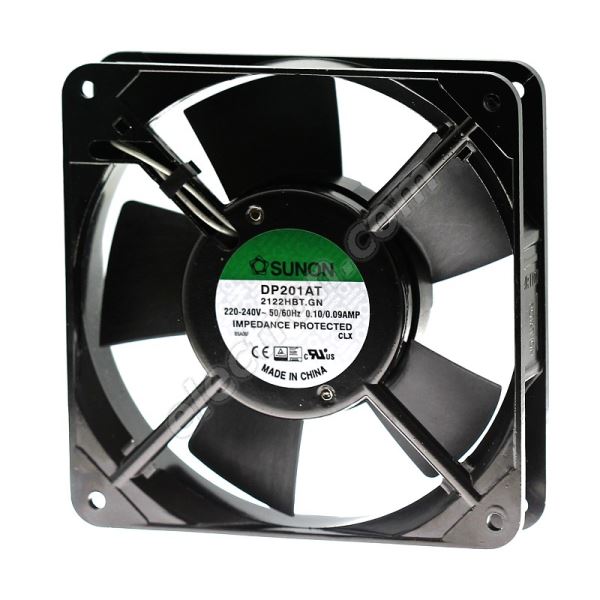

Ventilatortype AC DP201AT 2122HBT.GN
Soort ventilator axiaal
Ventilatorgrootte 120x120x25mm
Vermogensverbruik 19W
Nominale stroom 90mA
Efficiëntie ventilator 112m3/h (±7%)
Geluidsniveau 44dBA
Soort lager kogel
Rotatiesnelheid 2150omw./min
Stroom- en vermogensafnametolerantie ±15%
Frequentie 50Hz
Min. resistantie van de isolatie 500MΩ
Materiaal waaier thermoplast
Materiaal behuizing aluminium
Isolatieklasse B
Uitgang connectoren 2,8x0,3mm
Werktemperatuur -10...70°C
Ontvlambaarheidsklasse UL94V-0
Statische druk 3.55mm H2O
Massa 330g
