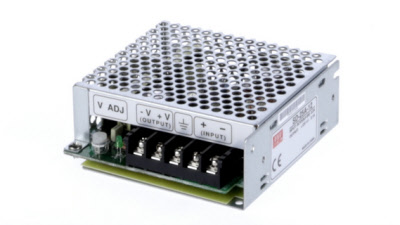

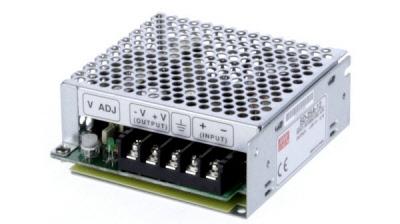

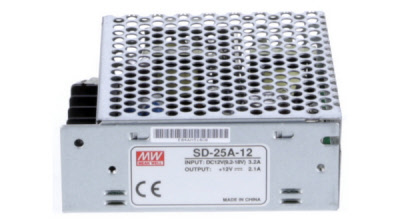

12Vdc DC/DC converter 25W Mean Well | SD25A12
Mean Well
SD-25A-12 | 25012017
kg
Levertijd:
prijs en levertijd op aanvraag | brigatti-online@brigatti.nl
Type: DC/DC converter 12 VDC
Switching
Wide input voltage range
Adjustable output voltage
High isolation voltage between input and output
Protected against short-circuit, overload and over-voltage
Screw connection for input and output
Ingangs voltage: 9.2...18 VDC
Output voltage: 12 VDC
Output current: 2.1 A
Vermogen: 25 W
Galvanic isolation: Ja
Bedrijfstemperatuur: -10...+60 °C
Afmetingen: L x B x H 99 x 97 x 36 mm
Efficientie: 72 %
System deviation, supply: ±0.3 %
System deviation, load: ±0.3 %
Residual ripple: 120 mVpp
Insulation voltage: 1500 Vdc
Short-circuit strength: Ja
MTBF: >300 000 h
Gewicht: 360 g

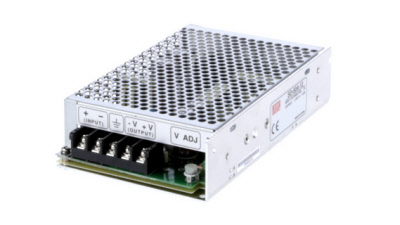

12Vdc DC/DC converter 50W Mean Well | SD50A12
Mean Well
SD-50A-12 | 25012017
kg
Levertijd:
prijs en levertijd op aanvraag | brigatti-online@brigatti.nl
Type: DC/DC converter 12 VDC
Switching
Wide input voltage range
Adjustable output voltage
High isolation voltage between input and output
Protected against short-circuit, overload and over-voltage
Screw connection for input and output
Ingangs voltage: 9.2...18 VDC
Output voltage: 12 VDC
Output current: 4.2 A
Vermogen: 50 W
Galvanic isolation: Ja
Bedrijfstemperatuur: -10...+60 °C
Afmetingen: L x B x H 99 x 97 x 36 mm
Efficientie: 75 %
System deviation, supply: ±0.3 %
System deviation, load: ±0.3 %
Residual ripple: 120 mVpp
Insulation voltage: 1500 Vdc
Short-circuit strength: Ja
MTBF: >300 000 h
Gewicht: 530 g
!
