4 x 9 cm (1.6" x 3.5") 8 Ohm full-range speaker Visaton | SC49FL

Visaton
8051 SC 4.9 FL 8 13112015
--
    Levertijd:1-2 werkdagen
Bestel

4 x 9 cm (1.6" x 3.5") full-range speaker with wood membrane and sturdy plastic basket.

Gewicht 0.054
Rated power handling 4
Noise baffle aperture 36 x 86 mm
Music power handling 5
Resonant frequency 145
Mean sound pressure level 83
Transmission max. 20000
Length, noise baffle aperture 36
Width, noise baffle aperture 86
Transmission min. 85 Hz
Noise baffle aperture, L x W 36 x 86
Transmission reeks 85 Hz...20000 Hz
Impendantie 8

5 x 9 cm (2" x 3.5") 8 Ohm Full-range speaker Visaton | SC59OM

Visaton
8003 SC 5.9 OM 8 13112015
--
    Levertijd:1-2 werkdagen
Bestel

5 x 9 cm (2" x 3.5") full-range speaker with powerful actuation, good efficiency and a very balanced frequency response.

Gewicht 0.13
Rated power handling 10
Noise baffle aperture 43 x 82 mm
Music power handling 15
Resonant frequency 170
Mean sound pressure level 84
Transmission max. 20000
Length, noise baffle aperture 43
Width, noise baffle aperture 82
Transmission min. 90 Hz
Noise baffle aperture, L x W 43 x 82
Transmission reeks 90 Hz...20000 Hz
Impendantie 8

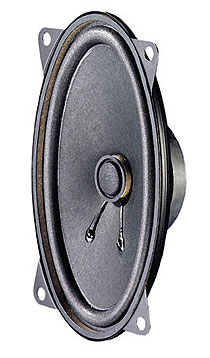

4 Ohm 30 W Breedband ovale speaker Visaton | FR9.15

Visaton
2054 FR 9.15 4 11112015
--
    Levertijd:1-2 werkdagen
Bestel

Extremely balanced frequency response
Extremely suitable for language and music reproduction
Small installation depth

Gewicht 277
Rated power handling 15
Noise baffle aperture 146 x 87 mm
Music power handling 30
Mean sound pressure level 85
Transmission max. 16000
Length, noise baffle aperture 146
Width, noise baffle aperture 87
Transmission min. 75 Hz
Noise baffle aperture, L x W 146 x 87
Transmission reeks 75 Hz...16000 Hz
Impendantie 4

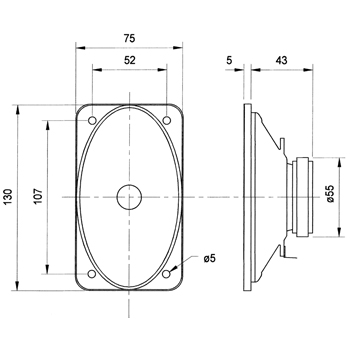

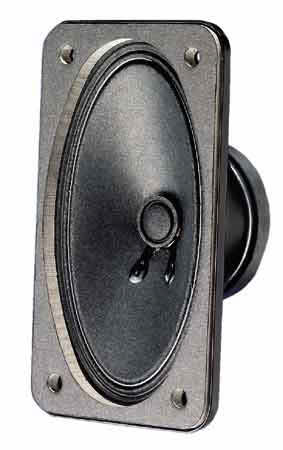

4 Ohm Ovale breedband luidspreker Visaton | SL 713

Visaton
2050 SL713 05042013
4007540020501
    Levertijd:1-2 werkdagen
Bestel
  • • Rated power: 10 Watt
    • Maximum power: 18 Watt
    • Nominal impedance: 4 Ohm
    • Frequency response: 100–20000 Hz
    • Mean sound pressure level: 90 dB (1 W/1 m)
    • Resonance frequency: fs 200Hz

8 Ohm Ovale full-range luidspreker Visaton | SC 5.9 ND 8

Visaton
8056 SC59ND 05042013
4007540080567
    Levertijd:1-2 werkdagen
Bestel

Magnetisch afgeschermde ovale breedband luidspreker. Zijn te gebruiken in TV’s en in PC’s waar geringe inbouwruimte voorhanden is

Impedance (Ohm) 8
nominal power (W) 3
maximal power (W) 4
nominal sound pressure (dB) 82
frequency response(-8dB)(Hz) 150-17kHz
resonance frequency (Hz) 245

4 Ohm Ovale full-range luidspreker Visaton | SC 5.9 ND 4

Visaton
8055 SC59ND 05042013
4007540080567
    Levertijd:geen voorraad artikel levertijd 1 week
Bestel

Magnetisch afgeschermde ovale breedband luidspreker. Zijn te gebruiken in TV’s en in PC’s waar geringe inbouwruimte voorhanden is

Impedance (Ohm) 4
nominal power (W) 3
maximal power (W) 4
nominal sound pressure (dB) 82
frequency response(-8dB)(Hz) 150-17kHz
resonance frequency (Hz) 245

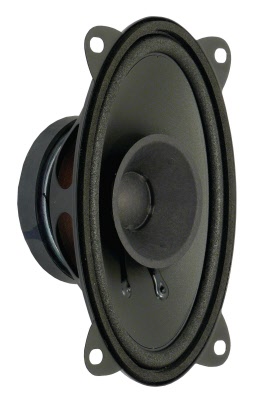

4 Ohm Full-range speaker Visaton | FR4x6X

Visaton
2254 FR 4x6 X -4 11112015
--
    Levertijd:1-2 werkdagen
Bestel

 x 15 cm (4" x 6") full-range speaker with treble cone. Powerful performance and high efficiency.

Gewicht 0.456
Rated power handling 15
Music power handling 30
Resonant frequency 110
Mean sound pressure level 87
Transmission max. 20000
Transmission min. 75 Hz
Transmission reeks 75 Hz...20000 Hz
Impendantie 4

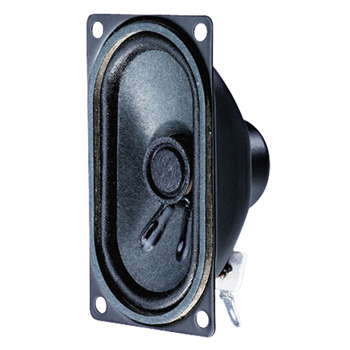

4 Ohm Afgeschermde ovale breedbandluidspreker Visaton | SC 4.7ND 4

Visaton
8047 SC47ND 02012014
4007540080475
    Levertijd:1-2 werkdagen
Bestel

Magnetisch afgeschermde ovale breedbandluidspreker met een goede frequentie weergave. Zeer geringe afmetingen makkelijk voor het inbouwen in TVs of PCs.

• Rated power: 2 W
• Maximum power: 4 W
• Nominal impedance Z: 4 Ohm
• Frequency response: 220–20000 Hz
• Mean sound pressure level: 81 dB (1 W/1 m)
• Opening angle (-6 dB): 180°/4000 Hz hor.
180°/4000 Hz ver.
• Excursion limit: +/−0.5 mm
• Resonance frequency fs: 420 Hz
• Magnetic induction: 0.7 T
• Magnetic flux: 60 µWb
• Height of front pole-plate: 2 mm
• Voice coil diameter: 14 mm
• Height of winding: 2 mm
• Cutout diameter: 35 x 65 mm (oval)
• Net weight: 0.041 kg
• D.C. resistance Rdc: 3.8 Ohm
• Mechanical Q factor Qms: 4.43
• Electrical Q factor Qes: 6.55
• Total Q factor Qts: 2.64
• Equivalent volume Vas: 0.9
• Effective piston area Sd: 45 cm²
• Dynamically moved mass Mms: 0.7 g
• Force factor Bxl: 1.2 Tm
• Inductance of the voice coil L: 0.2 mH
• Temperature range: −25 ... 70 °C

8 Ohm Afgeschermde ovale breedbandluidspreker Visaton | SC 4.7 ND 8

Visaton
8048 SC47ND 02012014
4007540080482
    Levertijd:1-2 werkdagen
Bestel

Magnetisch afgeschermde ovale breedbandluidspreker met een goede frequentie weergave. Zeer geringe afmetingen makkelijk voor het inbouwen in TVs of PCs.

• Rated power: 2 W
• Maximum power: 4 W
• Nominal impedance Z: 8 Ohm
• Frequency response: 220–20000 Hz
• Mean sound pressure level: 81 dB (1 W/1 m)
• Opening angle (-6 dB): 180°/4000 Hz hor.
180°/4000 Hz ver.
• Excursion limit: +/−0.5 mm
• Resonance frequency fs: 420 Hz
• Magnetic induction: 0.7 T
• Magnetic flux: 60 µWb
• Height of front pole-plate: 2 mm
• Voice coil diameter: 14 mm
• Height of winding: 2 mm
• Cutout diameter: 35 x 65 mm (oval)
• Net weight: 0.041 kg
• D.C. resistance Rdc: 3.8 Ohm
• Mechanical Q factor Qms: 4.43
• Electrical Q factor Qes: 6.55
• Total Q factor Qts: 2.64
• Equivalent volume Vas: 0.9
• Effective piston area Sd: 45 cm²
• Dynamically moved mass Mms: 0.7 g
• Force factor Bxl: 1.2 Tm
• Inductance of the voice coil L: 0.2 mH
• Temperature range: −25 ... 70 °C
