Mini luidsprekers

14 x 25 mm (0.5" x 1") 8 Ohm Small speaker Visaton | K1425

Visaton
2812 K 14 25 -8 | 11112015 |
kg
    Levertijd:geen voorraad artikel 1-4 werkdagen
Bestel
  • Type: speaker
  • Afmeting: 14x25mm (0.5"x1")
  • Rated power: 1 Watt
  • Maximum power: 1.5 Watt
  • Nominal impedance: 8 Ohm
  • Frequency response: 450–20000 Hz
  • Mean sound pressure level: 72 dB (1 W/1 m)
  • Resonance frequency: fs: ...Hz
  • Gewicht:  gr
  • Protection rating / beschermigsklasse : I

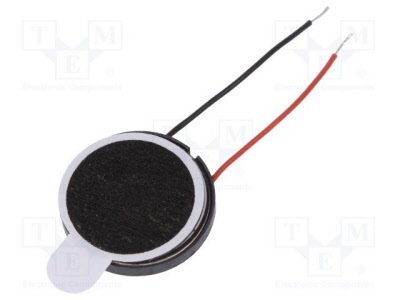

15mm Mini luidspreker - 0.5W / 8 ohm | LS158

Unbranded
LS 15-8 20032018
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Luidspreker 15mm
  • nom. impedantie: 8 ohm
  • max. vermogen: 0.5W
  • frequentierespons: 100 ~ 20.000Hz
  • gevoeligheid: 86dB
  • afmetingen magneet: Ø15mm

16mm (0.63") 8 Ohm Small Speaker Visaton | K16-8

VIsaton
2815 K 16 -8 | 11112015 |
40075400281163
kg
    Levertijd:geen voorraad artikel 1-4 werkdagen
Bestel
  • Type: miniature speaker
  • Afmeting: 16mm, 0.63"
  • Rated power: 0.5 Watt
  • Maximum power: 1 Watt
  • Nominal impedance: 8 Ohm
  • Frequency response: 700–20000 Hz
  • Mean sound pressure level: 71 dB (1 W/1 m)
  • Resonance frequency: fs: ...Hz
  • Gewicht: 20 gr
  • Protection rating / beschermigsklasse : IP ..

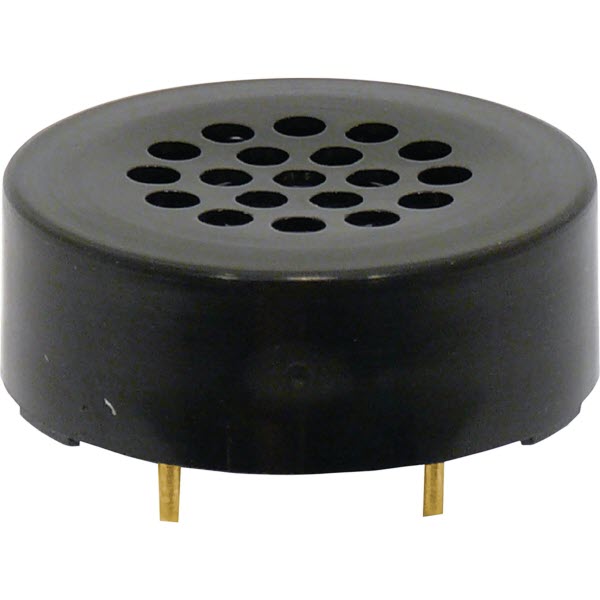

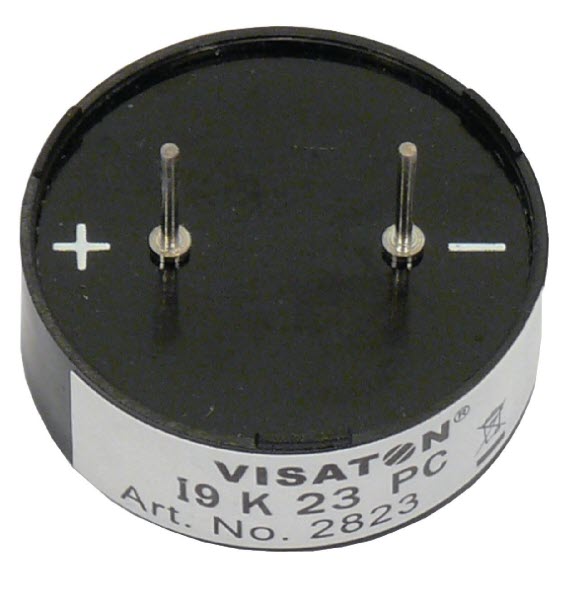

23mm 8 Ohm PCB speaker Visaton | K 23 PC

Visaton
2823 K23PC | 05042013 |
4007540028231
kg
    Levertijd:geen voorraad artikel 1-4 werkdagen
Bestel

2.3 cm (0.9") miniatuur speaker voor montage op print platen.

• Rated power: 0.2 Watt
• Maximum power: 0.5 Watt
• Nominal impedance: 8 Ohm
• Frequency response: 900–16000 Hz
• Mean sound pressure level: 73 dB (1 W/1 m)
• Resonance frequency: fs 1740Hz

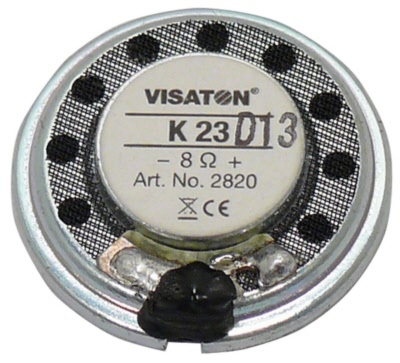

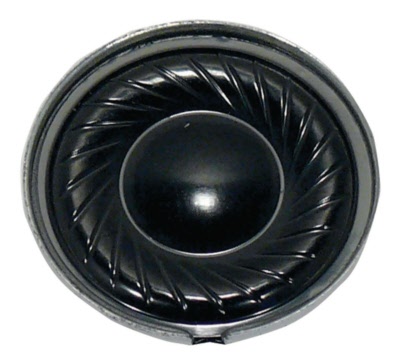

23mm (0.9") 8 Ohm Small Speaker Visaton | K23-8

Visaton
2820 K 23 8 | 11112015 |
4007540028200
kg
    Levertijd:geen voorraad artikel 1-4 werkdagen
Bestel

2.3 cm (0.9") miniature loudspeaker with Mylar membrane and round metal basket. Small size, therefore suitable for signal output in devices with space limitations.

Gewicht 0.004
Rated power handling 0.3
Noise baffle aperture 21 mm
Music power handling 0.5
Resonant frequency 750
Mean sound pressure level 89
Transmission max. 20000
Length, noise baffle aperture 21
Width, noise baffle aperture 21
Transmission min. 420 Hz
Noise baffle aperture, L x W 21 x 21
Transmission reeks 420 Hz...20000 Hz
Impendantie 8

28mm (1.1") 8 Ohm Miniature Speaker Visaton | K28WP8

Visaton
2909 K 28 WP 8 | 11112015 |
kg
    Levertijd:geen voorraad artikel 1-4 werkdagen
Bestel
Gewicht 7
Rated power handling 1
Noise baffle aperture 21 mm
Music power handling 2
Mean sound pressure level 75
Transmission max. 20000
Width, noise baffle aperture 21
Transmission min. 300 Hz
Transmission reeks 300 Hz...20000 Hz
Protection rating IP 65
Impendantie 8

28mm (1.1") 50 Ohm Miniature Speaker Visaton | K28WP50

Visaton
2910 K 28 WP50 | 11112015 |
--
kg
    Levertijd:geen voorraad artikel 1-4 werkdagen
Bestel
Gewicht 7
Rated power handling 1
Noise baffle aperture 21 mm
Music power handling 2
Mean sound pressure level 75
Transmission max. 20000
Width, noise baffle aperture 21
Transmission min. 300 Hz
Transmission reeks 300 Hz...20000 Hz
Protection rating IP 65
Impendantie 50

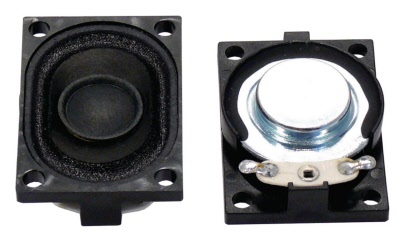

20 x 40 mm (0.8" x 1.6") 8 Ohm Miniature Speaker Visaton | K2040-8

Visaton
2941 K 20.40 8 | 11112015 |
kg
    Levertijd:geen voorraad artikel 1-4 werkdagen
Bestel

Gewicht 7
Rated power handling 1
Noise baffle aperture 38 x 18 mm
Music power handling 2
Mean sound pressure level 76
Transmission max. 20000
Length, noise baffle aperture 38
Width, noise baffle aperture 18
Transmission min. 300 Hz
Noise baffle aperture, L x W 38 x 18
Transmission reeks 300 Hz...20000 Hz
Impendantie 8

28 x 40 mm (1.1" x 1.6") 8 Ohm Small Speaker Visaton | K2840-8

Visaton
2945 K 28.40 8 11112015
--
kg
    Levertijd:geen voorraad artikel 1-4 werkdagen
Bestel

2.8 x 4 cm (1.1" x 1.6") small loudspeaker with paper membrane and rectangular plastic basket. Small size due to neodymium drive.

Gewicht 0.014
Rated power handling 2
Noise baffle aperture 26 x 37 mm
Music power handling 3
Resonant frequency 450
Mean sound pressure level 79
Transmission max. 20000
Length, noise baffle aperture 26
Width, noise baffle aperture 37
Transmission min. 230 Hz
Noise baffle aperture, L x W 26 x 37
Transmission reeks 230 Hz...20000 Hz
Impendantie 8

32mm (1.3") 8 Ohm miniature speaker Visaton BF32

Visaton
2242 BF 32 -8 | 11112015 |
kg
    Levertijd:geen voorraad artikel 1-4 werkdagen
Bestel
Gewicht 28
Rated power handling 2
Music power handling 5
Resonant frequency 220
Mean sound pressure level 78
Transmission max. 20000
Transmission min. 150 Hz
Transmission reeks 150 Hz...20000 Hz
Impendantie 8

36mm (1.4") 8 Ohm Miniature Speaker Visaton | K36WP8

Visaton
2912 K 36 WP 8 | 11112015 |
kg
    Levertijd:geen voorraad artikel 1-4 werkdagen
Bestel
Gewicht 6
Rated power handling 1
Noise baffle aperture 31 mm
Music power handling 2
Mean sound pressure level 77
Transmission max. 20000
Width, noise baffle aperture 31
Transmission min. 300 Hz
Transmission reeks 300 Hz...20000 Hz
Protection rating IP 65
Impendantie 8

36mm (1.4") 50 Ohm Miniature Speaker Visaton | K36WP50

Visaton
2913 K 36 W50 8 | 11112015 |
kg
    Levertijd:geen voorraad artikel 1-4 werkdagen
Bestel
Gewicht 6
Rated power handling 1
Noise baffle aperture 31 mm
Music power handling 2
Mean sound pressure level 77
Transmission max. 20000
Width, noise baffle aperture 31
Transmission min. 300 Hz
Transmission reeks 300 Hz...20000 Hz
Protection rating IP 65
Impendantie 50

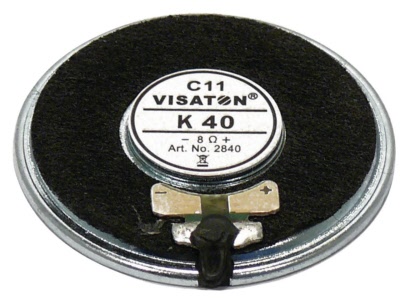

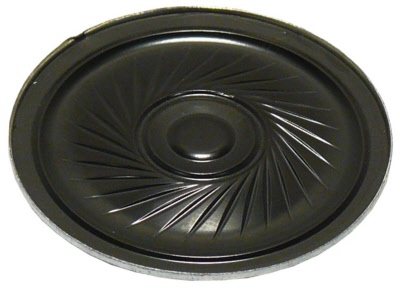

40mm (1.6") 8 Ohm Small Speaker Visaton | K40-8

Visaton
2840 K40 8 | 11112015 |
4007540028408
kg
    Levertijd:geen voorraad artikel 1-4 werkdagen
Bestel

4 cm (1.6") miniature loudspeaker with plastic membrane (Mylar) and metal basket. Extremely flat design. Small size, therefore suitable for signal output in devices with space limitations

Gewicht 0.01
Rated power handling 1
Noise baffle aperture 36.5 mm
Music power handling 2
Resonant frequency 520
Mean sound pressure level 83
Transmission max. 6000
Length, noise baffle aperture 36.5
Width, noise baffle aperture 36.5
Transmission min. 350 Hz
Noise baffle aperture, L x W 36.5 x 36.5
Transmission reeks 350 Hz...6000 Hz
Impendantie 8

40mm (1.6") 50 Ohm Small Speaker Visaton | K40-50

Visaton
2841 K40 50 | 11112015 |
kg
    Levertijd:geen voorraad artikel 1-4 werkdagen
Bestel

4 cm (1.6") miniature loudspeaker with plastic membrane (Mylar) and metal basket. Extremely flat design. Small size, therefore suitable for signal output in devices with space limitations.

0.01
Rated power handling 1
Noise baffle aperture 36.5 mm
Music power handling 2
Resonant frequency 520
Mean sound pressure level 83
Transmission max. 6000
Length, noise baffle aperture 36.5
Width, noise baffle aperture 36.5
Transmission min. 350 Hz
Noise baffle aperture, L x W 36.5 x 36.5
Transmission reeks 350 Hz...6000 Hz
Impendantie 50

40mm (1.6") 8 Ohm Small Speaker Visaton | K40SQ8

Visaton
2846 K 40 SQ 8 | 11112015 |
kg
    Levertijd:geen voorraad artikel 1-4 werkdagen
Bestel
  • Type: miniature speaker
  • Afmeting: 40mm, 1.6"
  • Rated power: 0.5 Watt
  • Maximum power: 1 Watt
  • Nominal impedance: 8 Ohm
  • Frequency response: 520 Hz
  • Mean sound pressure level: 84 dB (1 W/1 m)
  • Resonance frequency: fs: 300-20.000Hz
  • Gewicht: 14 gr
  • Protection rating / beschermigsklasse : IP ..

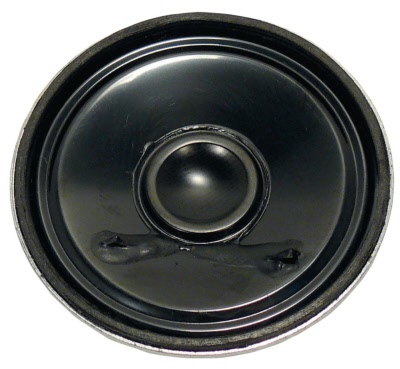

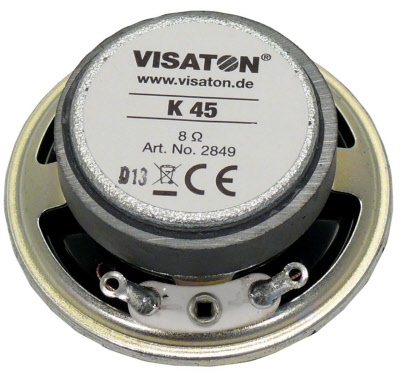

45mm (1.8") 8 Ohm Small Speaker Visaton | K45-8

Visaton
2849 K 45 8 | 11112015 |
4007540028491
kg
    Levertijd:geen voorraad artikel 1-4 werkdagen
Bestel

4.5 cm (1.8") miniature loudspeaker with plastic membrane (Mylar) and metal basket. Small size, therefore suitable for signal output in devices and equipment with space limitations.

Gewicht 0.046
Rated power handling 1
Noise baffle aperture 41.5 mm
Music power handling 2
Resonant frequency 520
Mean sound pressure level 83
Transmission max. 14000
Length, noise baffle aperture 41.5
Width, noise baffle aperture 41.5
Transmission min. 300 Hz
Noise baffle aperture, L x W 41.5 x 41.5
Transmission reeks 300 Hz...14000 Hz
Impendantie 8

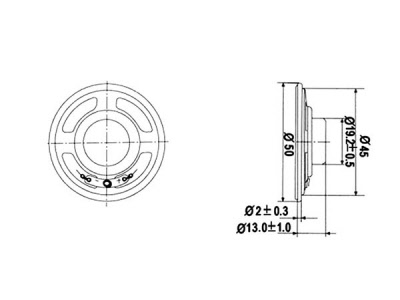

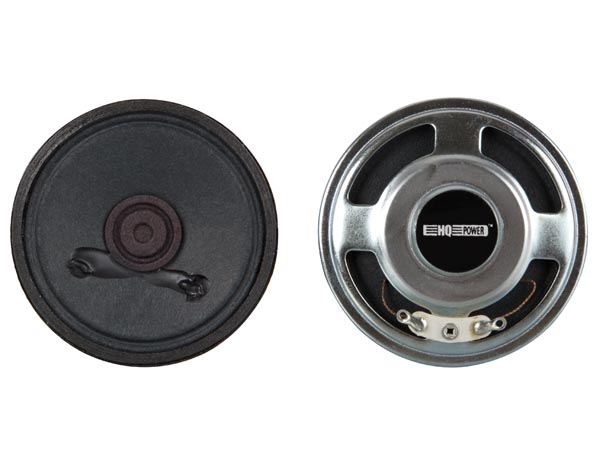

50mm Mini luidspreker - 0.5W / 8 ohm | MLS1

HQ Power
MLS1 | 30012012 |
5410329222963
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • nom. impedantie: 8 ohm ± 15%
  • max. vermogen: 0.25 ~ 0.5W
  • frequentierespons: 420 ~ 4000Hz
  • gevoeligheid: 86 ± 2dB
  • afmetingen magneet: Ø12 x 2mm (NdFeB)
  • spreekspoel: Ø13.3mm papier

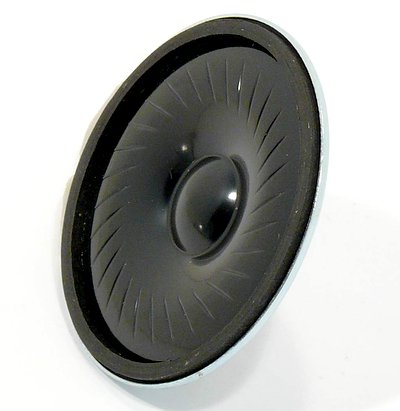

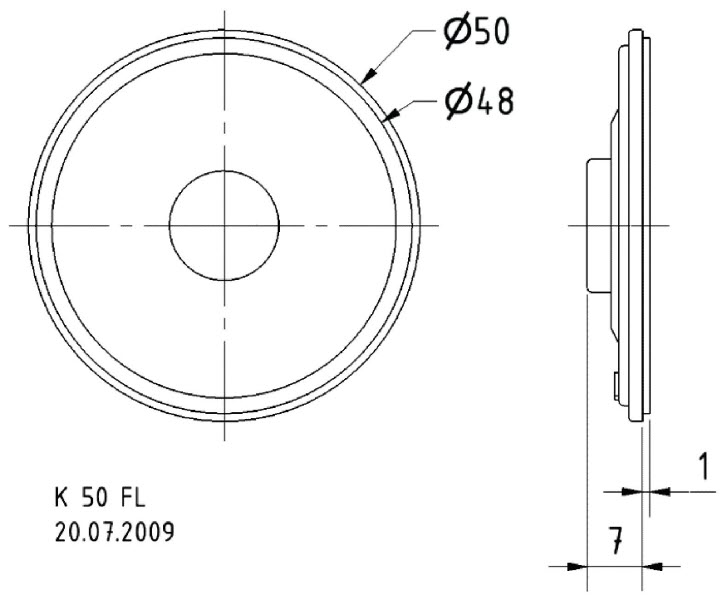

50mm (2") 8 Ohm Small Speaker Visaton | K50FL8

VIsaton
2948 K50FL-8 | 09112019 |
4007540029481
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: miniature speaker
  • Afmeting: 50mm, 2"
  • Rated power: 1 Watt
  • Maximum power: 2 Watt
  • Nominal impedance: 8 Ohm
  • Frequency response: 150–20000 Hz
  • Mean sound pressure level: 80 dB (1 W/1 m)
  • Resonance frequency: fs: ...Hz
  • Gewicht: 14 gr
  • Protection rating / beschermigsklasse : IP ..

50mm (2") 8 Ohm Miniature Speaker Visaton | K50SQ

Visaton
2897 K 50 SQ 8 | 11112015 |
4007540028972
kg
    Levertijd:geen voorraad artikel 1-4 werkdagen
Bestel
Gewicht 50
Rated power handling 2
Noise baffle aperture 45 mm
Music power handling 3
Resonant frequency 480
Mean sound pressure level 83
Transmission max. 10000
Width, noise baffle aperture 45
Transmission min. 250 Hz
Transmission reeks 250 Hz...10000 Hz
Impendantie 8

50mm (2") 8 Ohm Broadband speaker Visaton | K50-8

Visaton
2901 K 50 8 | 11112015 |
kg
    Levertijd:geen voorraad artikel 1-4 werkdagen
Bestel

Small speaker with plastic cone and metal basket
Thanks to small dimensions, particularly suitable for signal output in devices and systems with restricted amounts of space

Gewicht 50
Rated power handling 2
Noise baffle aperture 45 mm
Music power handling 3
Mean sound pressure level 83
Transmission max. 10000
Transmission min. 250 Hz
Transmission reeks 250 Hz...10000 Hz
Protection rating IP 65
Impendantie 8

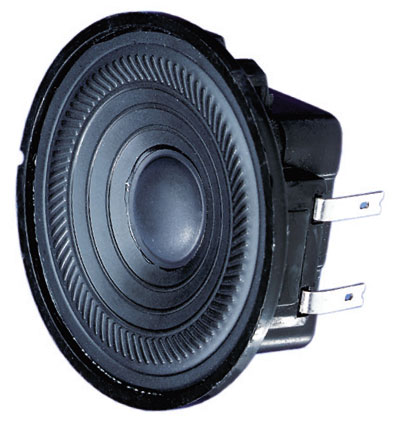

50mm (2") 50 Ohm Miniature Speaker Visaton | K50WP-50

Visaton
2916 K 50 WP 50 | 11112015 |
4007540029160
kg
    Levertijd:geen voorraad artikel 1-4 werkdagen
Bestel
  • Type: speaker waterproof
  • Afmeting: 50mm, 2"
  • Rated power: 2 Watt
  • Maximum power: 3 Watt
  • Nominal impedance: 50 Ohm
  • Frequency response: 180–17000 Hz
  • Mean sound pressure level: 84 dB (1 W/1 m)
  • Resonance frequency: fs: ...Hz
  • Gewicht: 48 gr
  • Protection rating / beschermigsklasse : IP 65

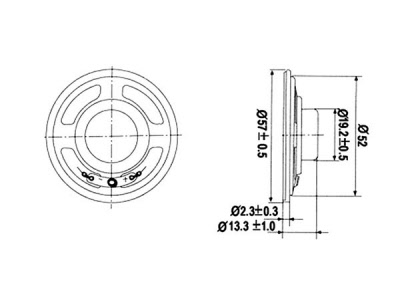

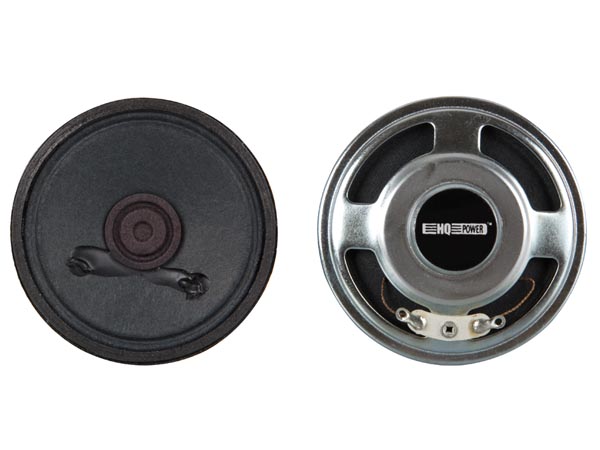

57mm Mini luidspreker - 1W / 8 ohm | MLS2

HQ Power
MLS2 | 30012012 |
5410329222987
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • nom. impedantie: 8 ohm ± 15%
  • max. vermogen: 0.25 ~ 1W
  • frequentierespons: 380 ~ 4500Hz
  • gevoeligheid: 88 ± 2dB
  • afmetingen magneet: Ø12 x 2mm (NdFeB)
  • spreekspoel: Ø13.3mm papier

57mm (2.2") 8 Ohm Miniature Speaker Visaton | K57C-8

Visaton
2907 K 57 C 8 | 11112015 |
kg
    Levertijd:geen voorraad artikel 1-4 werkdagen
Bestel

With waterproofed, transparent Mylar membrane and Neodymium magnet
Light weight / low installation height
For outdoor and rough environments
Suitable as signal speaker on electrical machines
Good speech intelligibility
Typical applications: Voice and signal output in machines and other equipments where space is scarce

Gewicht 31
Rated power handling 2
Music power handling 3
Mean sound pressure level 87
Transmission max. 6800
Transmission min. 350 Hz
Transmission reeks 350 Hz...6800 Hz
Impendantie 8

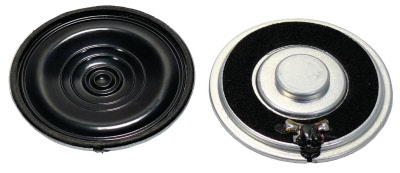

57mm (2.2") 8 Ohm Small Speaker Visaton | K57FL-8

Visaton
2952 K 57 FL 8 | 11112015 |
4007540029528
kg
    Levertijd:geen voorraad artikel 1-4 werkdagen
Bestel

5.7 cm (2.2") miniature loudspeaker with plastic membrane (Mylar) and metal basket. Extremely flat design, therefore suitable for signal output in devices and equipment with limited installation depth.

Gewicht 0.18
Rated power handling 1
Noise baffle aperture 52 mm
Music power handling 2
Resonant frequency 350
Mean sound pressure level 83
Transmission max. 16000
Length, noise baffle aperture 52
Width, noise baffle aperture 52
Transmission min. 220 Hz
Noise baffle aperture, L x W 52 x 52
Transmission reeks 220 Hz...16000 Hz
Impendantie 8

64mm (2.5") 8 Ohm Miniature Speaker Visaton | K64WP-8

Visaton
2918 K 64 WP 8 11112015
kg
    Levertijd:geen voorraad artikel 1-4 werkdagen
Bestel

Waterproof
With plastic basket and plastic membrane
Wide transmission range and good voice comprehension
Particularly suitable for outdoor applications and in environments with high moisture
Usable as monitor loudspeaker for electronic devices or in outside areas
K 64 WP with vertical connection
K 64 WPT with horizontal connection

Gewicht 50
Rated power handling 2
Noise baffle aperture 60 mm
Music power handling 3
Mean sound pressure level 86
Transmission max. 15000
Width, noise baffle aperture 60
Transmission min. 200 Hz
Transmission reeks 200 Hz...15000 Hz
Protection rating IP 65
Impendantie 8
