Automotive | connectoren

Kit 3 contactenTE Connectivity - AMP | 1023-DC3

TE Connectivity - AMP
1023-DC3 | 21042023
7331176406895
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel

Productspecificaties

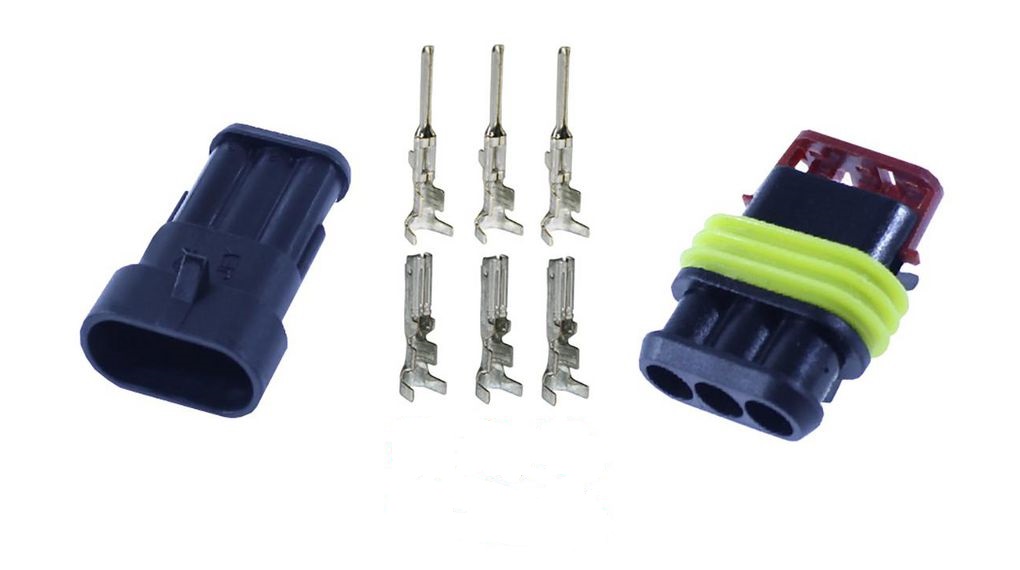

　Kit AMP TE Connectivity 3 contacten

　

1x 282105-1 - Krimpbehuizing Insteekbus 1 Rijen 3 Polen Zwart Pitch 6mm

1x 282087-1 - Krimpbehuizing Aansluiting 1 Rijen 3 Polen, Zwart Pitch 6mm

3x 183025-1 - Crimpaansluitingen, Vrouwelijk, Tin, 18 ... 15AWG

3x 183024-1 - Crimpaansluitingen, Stekker, Tin, 17 ... 15AWG

　

3way 1.2 SealStar FA Connector Hirschmann | 805-121-521

Hirschmann
805-121-521 | 21042023
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel

Productspecificaties

　

  • Connector Type:Housing for female terminals
  • Terminal Type:1.2 MM
  • Number of Ways:3
  • Connector Positioning Assur.:Yes
  • Protective Shroud Twisted:No
  • Operating Temperature Range:-40 °C - 150 °C
  • Terminal Positioning Assurance:Yes
  • Terminals/Seals:DwngNo. MLK-S: DOC00072546, DwngNo. MLK-SM: DOC00079128, DwngNo. MCON 1.2-LL: C-145267, DwngNo. MLK-SM: 10304894-1, DwngNo. Tyco: C-967067
  • Pitch:at 1.2 mm = 4 mm
  • Color:Black
  • Coding:A
  • Tightness Classification:IPX9K
  • Cable Exit Angle:180 °
  • Sealed:Yes, with single wire seals
  • Guideline:USCAR specification, LV-214
  • Housing Material:PA GF
