CMOS 4000 reeks IC's

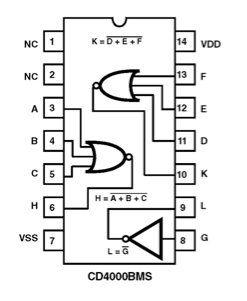

CD4000 CMOS Dual 3 plus Inverter DIP14

NXP Semiconductors
HEF4000BP | 09012018
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: IC's Dual 3 plus Inverter
  • Aantal:
  • Schakelspanning - max: 15 V
  • Werkvoedingsspanning: 3 V to 18 V
  • Pd - Vermogensverlies: 100mW
  • Bedrijfstemperatuurbereik: - 55 C to + 125 C
  • Montagetype: Through Hole
  • Behuizing : PDIP-14

CD4001 CMOS 2-Input Gate NOR Quad DIP14

Texas Instruments
CD4001BE 09012018
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: 2-Input Gate NOR Quad
  • Aantal:
  • Schakelspanning - max:
  • Werkvoedingsspanning:
  • Pd - Vermogensverlies:
  • Bedrijfstemperatuurbereik: - 55 C to + 125 C
  • Montagetype: Through Hole
  • Behuizing : PDIP-14

CD4006 CMOS Teller schuifregisters DIP14

Texas Instruments
CD4002BE | ***V62 | 09012018
UITLOPEND NOG 62 STUKS OP VOORRAAD
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Teller schuifregisters
  • Aantal:
  • Schakelspanning - max:
  • Werkvoedingsspanning:
  • Pd - Vermogensverlies:
  • Bedrijfstemperatuurbereik: - 55 C to + 125 C
  • Montagetype: Through Hole
  • Behuizing : PDIP-14

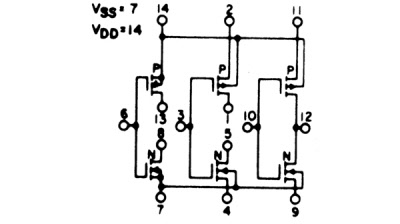

CD4007 CMOS Dual Inverter DIP14

Motorola
MC14007UBCL 22122017
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: IC cmos Complementary Dual Inverter
  • Voedingsspanning - Max: 3..18 V
  • Uitgangsstroom per kanaal:
  • Aantal kanalen:
  • Aantal schakelaars:
  • Configuratie:
  • Inschakelweerstand
  • Schakelspanning
  • Inschakeltijd - max:
  • Werkvoedingsspanning: 3 V to 18 V
  • Dubbele voedingsspanning:
  • Pd - Vermogensverlies:
  • Voedingsstroom - max:
  • Type voeding: Single Supply, Dual Supply
  • Voedingsspanning - Max: 18 V
  • Voedingsspanning - Min: 3 V
  • Bedrijfstemperatuurbereik: - 55 C to + 125 C
  • Montagetype: Through Hole
  • Behuizing : PDIP-14

CD4008 CMOS 4-Bit Adder/Subtractor DIP16

National Semiconductor
CD4008UBCN | ***V42 | 22122017
UITLOPEND NOG 42 STUKS OP VOORRAAD
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: IC cmos 4-Bit Adder/Subtractor
  • Voedingsspanning - Max: 3..18 V
  • Uitgangsstroom per kanaal:
  • Aantal kanalen:
  • Aantal schakelaars:
  • Configuratie:
  • Inschakelweerstand
  • Schakelspanning
  • Inschakeltijd - max:
  • Werkvoedingsspanning: 3 V to 18 V
  • Dubbele voedingsspanning:
  • Pd - Vermogensverlies:
  • Voedingsstroom - max:
  • Type voeding: Single Supply, Dual Supply
  • Voedingsspanning - Max: 18 V
  • Voedingsspanning - Min: 3 V
  • Bedrijfstemperatuurbereik: - 55 C to + 125 C
  • Montagetype: Through Hole
  • Behuizing : PDIP-16

CD4009 CMOS Buffer Converter Hex Inverter DIP16

Texas Instruments
CD4009UBE | 22122017
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: CMOS Buffer Converter Hex Inverter
  • Logische familie: CD4000
  • Aantal invoerlijnen :
  • Aantal uitvoerlijnen:
  • Aantal poorten:
  • Laag-niveau-uitgangsstroom:
  • Signaalvertraging:
  • Voedingsspanning - Max: 18 V
  • Voedingsspanning - Min: 3 V
  • Maximale bedrijfstemperatuur: + 125 C
  • Functie: Decoder/Demultiplexer
  • Type ingang: CMOS
  • Aantal bits:
  • Operationele Voeding:
  • Werkvoedingsspanning:
  • Uitgangstype:
  • Bedrijfstemperatuurbereik: - 55 C to + 125 C
  • Montagetype: Through Hole
  • Behuizing : PDIP-16

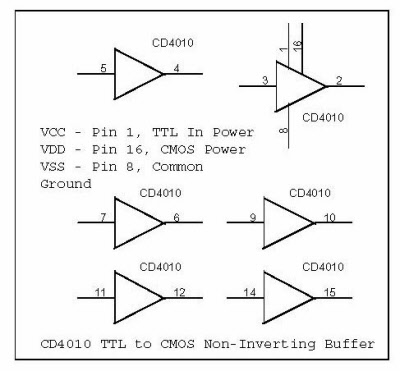

CD4010 CMOS Buffer - Converter Hex DIP16

Texas Instruments
CD4010BE 22122017
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: CMOS Buffer Converter Hex
  • Logische familie: CD4000
  • Aantal invoerlijnen :
  • Aantal uitvoerlijnen:
  • Aantal poorten:
  • Laag-niveau-uitgangsstroom:
  • Signaalvertraging:
  • Voedingsspanning - Max: 18 V
  • Voedingsspanning - Min: 3 V
  • Maximale bedrijfstemperatuur: + 125 C
  • Functie: Decoder/Demultiplexer
  • Type ingang: CMOS
  • Aantal bits:
  • Operationele Voeding:
  • Werkvoedingsspanning:
  • Uitgangstype:
  • Bedrijfstemperatuurbereik: - 55 C to + 125 C
  • Montagetype: Through Hole
  • Behuizing : PDIP-16

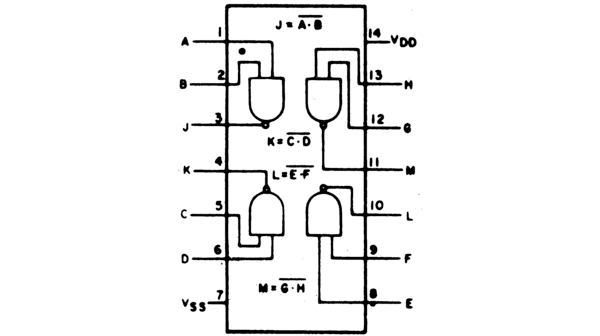

CD4011 CMOS Quad NAND Gate DIP14

Texas Instruments
CD4011BE | 26112019
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Quad NAND Gate
  • NAND Gate
  • Aantal schakelingen 4
  • Aantal input: 2
  • Aantal output: 1
  • Uitgangsstroom
  • Voortplantingsvertragingstijd 90 ns
  • Klokfrequentie  MHz
  • Uitvoertype CMOS
  • Voedingsspanning Min. 3 V
  • Voedingsspanning Max. 18 V
  • Bedrijfstemperatuurbereik: - 55 C to + 125 C
  • Montagetype: Through Hole
  • Behuizing : PDIP-14

CD4012 CMOS Dual NAND Gate DIP14

Texas Instruments
CD4012BE | 26112019
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Dual NAND Gate
  • NAND Gate
  • Aantal schakelingen 2
  • Aantal input: 4
  • Aantal output: 1
  • Uitgangsstroom
  • Voortplantingsvertragingstijd 90 ns
  • Klokfrequentie  MHz
  • Uitvoertype CMOS
  • Voedingsspanning Min. 3 V
  • Voedingsspanning Max. 18 V
  • Bedrijfstemperatuurbereik: - 55 C to + 125 C
  • Montagetype: Through Hole
  • Behuizing : PDIP-14

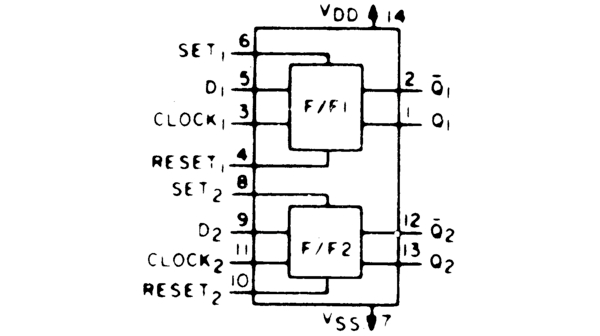

CD4013 CMOS Dual D Flip-Flop with Clear / Preset DIP14

Texas Instruments
CD4013BE | 26112019
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: IC's Dual D Flip-Flop with Clear / Preset
  • Flip-Flop Type D
  • Aantal schakelingen 1
  • Uitgangsstroom 1,5 mA
  • Voortplantingsvertragingstijd 130 ns
  • Triggeringstype Positieve rand
  • Klokfrequentie 8 MHz
  • Uitvoertype CMOS
  • Voedingsspanning Min. 3 V
  • Voedingsspanning Max. 18 V
  • Bedrijfstemperatuurbereik: - 55 C to + 125 C
  • Montagetype: Through Hole
  • Behuizing : PDIP-14

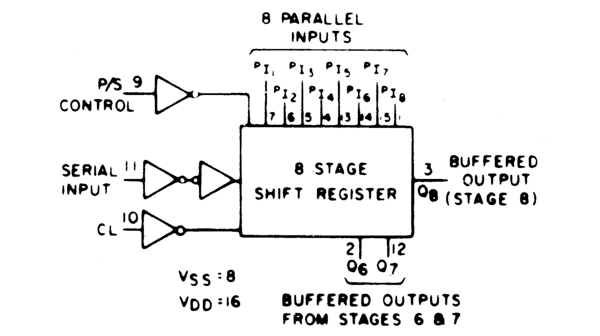

CD4014 CMOS Parallel to Serial DIP16

Texas Instruments
CD4014BE | ###V8 | 28112019
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: 8 Bit Shift Register Serial / Parallel to Serial
  • Shift Register
  • Aantal schakelingen 8
  • Uitgangsstroom
  • Voortplantingsvertragingstijd 160 ns
  • Klokfrequentie  MHz
  • Uitvoertype CMOS
  • Voedingsspanning Min. 3 V
  • Voedingsspanning Max. 18 V
  • Bedrijfstemperatuurbereik: - 55 C to + 125 C
  • Montagetype: Through Hole
  • Behuizing : PDIP-16

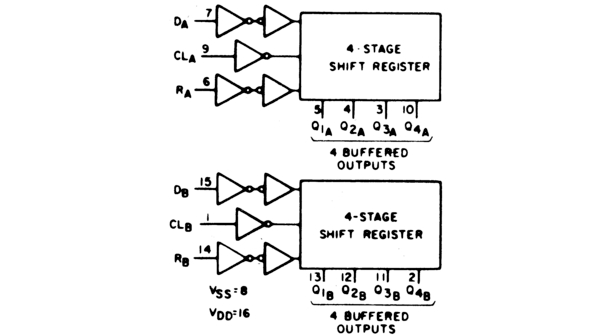

CD4015 CMOS 4 Bit Parallel to Serial DIP16

Texas Instruments
CD4015BE | 28112019
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Dual 4 Bit Shift Register Serial to Parallel
  • Shift Register
  • Aantal schakelingen 2
  • Uitgangsstroom
  • Voortplantingsvertragingstijd 160 ns
  • Klokfrequentie  MHz
  • Uitvoertype CMOS
  • Voedingsspanning Min. 3 V
  • Voedingsspanning Max. 18 V
  • Bedrijfstemperatuurbereik: - 55 C to + 125 C
  • Montagetype: Through Hole
  • Behuizing : PDIP-16

CD4016 CMOS Quad Bilateral Switch DIP14

Texas Instruments
CD4016BE | 22022017
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: IC's analoge schakeling Quad
  • Voedingsspanning - Max: 28 V
  • Uitgangsstroom per kanaal: 1 A
  • Aantal kanalen: 2 Channel
  • Aantal schakelaars: 4 Switch
  • Configuratie: 4 x SPST
  • Inschakelweerstand - max: 850 Ohms
  • Schakelspanning - max: 15 V
  • Inschakeltijd - max: 30 ns
  • Werkvoedingsspanning: 3 V to 18 V
  • Dubbele voedingsspanning: +/- 10 V
  • Pd - Vermogensverlies: 500 mW
  • Voedingsstroom - max: 5 uA
  • Type voeding: Single Supply, Dual Supply
  • Voedingsspanning - Max: 18 V
  • Voedingsspanning - Min: 3 V
  • Bedrijfstemperatuurbereik: - 55 C to + 125 C
  • Montagetype: Through Hole
  • Behuizing : PDIP-14

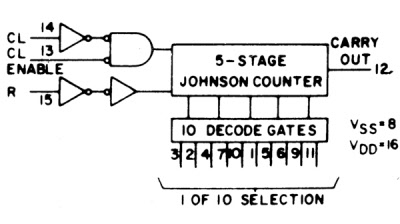

CD4017 CMOS 10 bit Decade/Divider DIP16

Texas Instruments
CD4017BE | 21022017
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: 10 bits Decade/Divider
  • Tellertype: Decade
  • Logische familie: CD4000
  • Functie: Counter
  • Aantal bits: 10 bit
  • Telmethode: Synchronous
  • Telsequentie: Up
  • Werkvoedingsspanning: 3 V to 18 V
  • Bedrijfstemperatuurbereik: - 55 C to + 125 C
  • Uitgangsstroom: +/- 1.5 mA
  • Montagetype: Through Hole
  • Behuizing : PDIP-16

CD4018 CMOS Teller IC DIP16

Texas Instruments
CD4018BE 21022017
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Teller IC's CMOS Prest Div-by-N
  • Tellertype: Divide By N
  • Logische familie: CD4000
  • Aantal bits: 5 bit
  • Telmethode: Synchronous
  • Telsequentie: Up
  • Werkvoedingsspanning: 3 V to 18 V
  • Functie: Counter
  • Uitgangsstroom: +/- 1.5 mA
  • Bedrijfstemperatuurbereik: - 55 C to + 125 C
  • Montagetype: Through Hole
  • Behuizing : PDIP-16

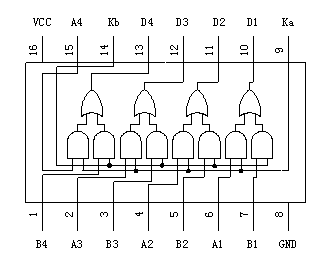

CD4019 CMOS Quad AND OR DIP16

Texas Instruments
CD4019BE | 21022017
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Logische poorten Quad AND/OR
  • Logische functie: MUX Gates
  • Logische familie: CD4000
  • Aantal poorten: 4 Gate Aantal invoerlijnen: 2 Input
  • Aantal uitvoerlijnen: 1 Output
  • Hoog-niveau-uitgangsstroom: - 1.5 mA
  • Laag-niveau-uitgangsstroom: 1.5 mA
  • Signaalvertraging: 120 ns
  • Voedingsspanning - Max: 18 V
  • Voedingsspanning - Min: 3 V
  • Maximale bedrijfstemperatuur: + 125 C
  • Functie: Quad AND/OR
  • Type ingang: CMOS
  • Aantal bits: 4 bit
  • Operationele Voeding: 60 uA
  • Werkvoedingsspanning: 10 V
  • Uitgangstype: CMOS Ruststroom: 40 nA
  • Bedrijfstemperatuurbereik: - 55 C to + 125 C
  • Montagetype: Through Hole
  • Behuizing : PDIP-16

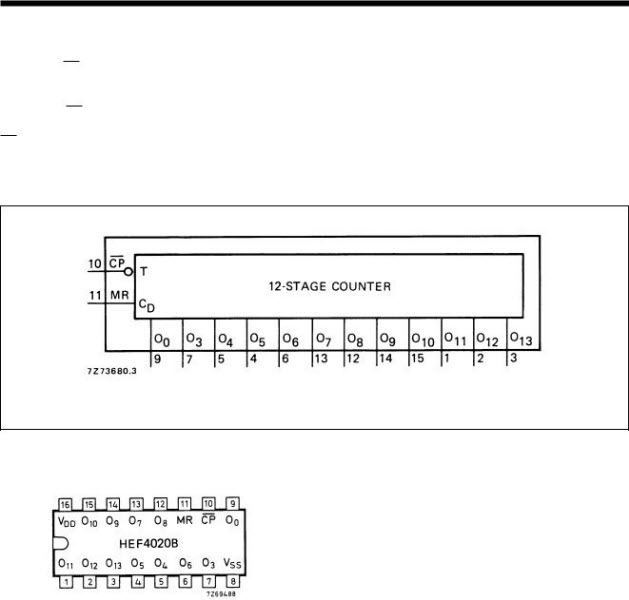

CD4020 CMOS Binary ripple counter DIP16

Philips
HEF4020BP | ***V35 | 13042022
UITLOPEND NOG +/- 35 STUKS OP VOORRAAD
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: CMOS Binary ripple counter
  • Logische functie:
  • Logische familie: CD4000
  • Aantal circuits :
  • Werkvoedingsspanning: 3V .. 18V
  • Bedrijfstemperatuur: -55C ...+ 125 C
  • Montagetype: Through Hole
  • Behuizing : PDIP-16

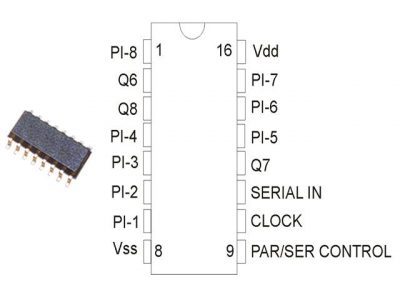

CD4021 CMOS 8-Stage Static Shift Register DIP16

NXP
HEF4021BP | ***V9 | 13042022
UITLOPEND NOG +/- 9 STUKS OP VOORRAAD
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: CMOS 8-Stage Static Shift Register
  • Logische functie:
  • Logische familie: CD4000
  • Aantal circuits :
  • Werkvoedingsspanning: 3V .. 18V
  • Bedrijfstemperatuur: -55C ...+ 125 C
  • Montagetype: Through Hole
  • Behuizing : PDIP-16

CD4022 CMOS Octal Counter with 8 Decoded Outputs DIP16

Texas Instruments
CD4022BE | 13042022
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: CMOS Octal Counter with 8 Decoded Outputs
  • Logische functie:
  • Logische familie: CD4000
  • Aantal circuits :
  • Werkvoedingsspanning: 3V .. 18V
  • Bedrijfstemperatuur: -55C ...+ 125 C
  • Montagetype: Through Hole
  • Behuizing : PDIP-16

CD4023 CMOS Triple 3-input NAND gate DIP14

Motorola
MC14023 | ***V3 | 13042022
UITLOPEND NOG 3 STUKS OP VOORRAAD
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type:Triple 3-input NAND gate
  • Logische functie:
  • Logische familie: CD4000
  • Aantal circuits :
  • Werkvoedingsspanning: 3V .. 18V
  • Bedrijfstemperatuur: -55C ...+ 125 C
  • Montagetype: Through Hole
  • Behuizing : PDIP-14

CD4024 CMOS 7 Bit Binary Counter and Divider DIP14

Texas Instruments
CD4024BE | 25102019
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: CMOS 7 Bit Binary Counter and Divider
  • Logische functie:
  • Logische familie: CD4000
  • Aantal circuits :
  • Werkvoedingsspanning: 3V .. 18V
  • Bedrijfstemperatuur: -55C ...+ 125 C
  • Montagetype: Through Hole
  • Behuizing : PDIP-14

CD4025 CMOS Triple NOR Gate DIP14

Texas Instruments
CD4025BE | 25102019
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: CMOS Triple NOR Gate
  • Logische functie:
  • Logische familie: CD4000
  • Aantal circuits :
  • Werkvoedingsspanning: 3V .. 18V
  • Bedrijfstemperatuur: -55C ...+ 125 C
  • Montagetype: Through Hole
  • Behuizing : PDIP-14

CD4026 CMOS BCD Counter Divider DIP16

Texas Instruments
CD4026BE | 25102019
    Levertijd:geen voorraad artikel levertijd 4-6 werkdagen
Bestel
  • Type: CMOS BCD Counter Divider
  • Logische functie:
  • Logische familie: CD4000
  • Aantal circuits :
  • Werkvoedingsspanning: 3V .. 18V
  • Bedrijfstemperatuur: -55C ...+ 125 C
  • Montagetype: Through Hole
  • Behuizing : PDIP-16

CD4027 CMOS Flip-flops Dual Master/Slave DIP16

Texas Instruments
CD4027BE | 17072017
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Logische poorten
  • Logische functie: Flip-flops Dual Master/Slave
  • Logische familie: CD4000
  • Aantal invoerlijnen :
  • Aantal uitvoerlijnen:
  • Hoog-niveau-uitgangsstroom: - 1.5 mA
  • Laag-niveau-uitgangsstroom: 1.5 mA
  • Signaalvertraging:
  • Voedingsspanning - Max: 18 V
  • Voedingsspanning - Min: 3 V
  • Maximale bedrijfstemperatuur: + 125 C
  • Functie: Decoder/Demultiplexer
  • Type ingang: CMOS
  • Aantal bits:
  • Operationele Voeding:
  • Werkvoedingsspanning:
  • Uitgangstype:
  • Bedrijfstemperatuurbereik: - 55 C to + 125 C
  • Montagetype: Through Hole
  • Behuizing : PDIP-16

CD4028 CMOS 4-input DMUX Decoder DIP16

Texas Instruments
CD4028BE 17072017
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Logische poorten Encoders, decoders, multiplexers & demultiplexers BCD-to-Decimal
  • Logische functie: Decoder
  • Logische familie: CD4000
  • Aantal invoerlijnen : 4 input
  • Aantal uitvoerlijnen: 10 Output
  • Hoog-niveau-uitgangsstroom: - 1.5 mA
  • Laag-niveau-uitgangsstroom: 1.5 mA
  • Signaalvertraging:
  • Voedingsspanning - Max: 18 V
  • Voedingsspanning - Min: 3 V
  • Maximale bedrijfstemperatuur: + 125 C
  • Functie: Decoder/Demultiplexer
  • Type ingang: CMOS
  • Aantal bits:
  • Operationele Voeding:
  • Werkvoedingsspanning:
  • Uitgangstype:
  • Bedrijfstemperatuurbereik: - 55 C to + 125 C
  • Montagetype: Through Hole
  • Behuizing : PDIP-16
