Optocouplers

Deze pagina is under construction

-
Er worden nog meer onderdelen toegevoegd.

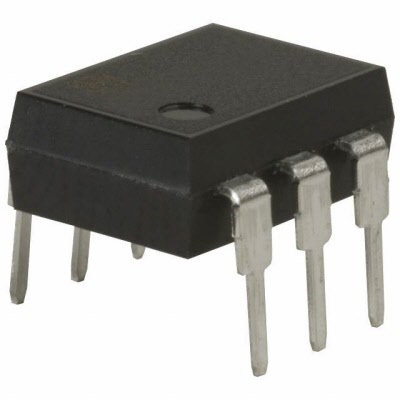

4N25 Optocoupler DIL-6

Vishay
4N25 | 05022017
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type:  Optische koppelelementen transistoroutput Optocoupler Phototransistor
  • Uitgangstype: NPN Phototransistor
  • Aantal kanalen: 1 Channel
  • If - Voorwaartse stroom: 100 mA
  • Maximale collector-emitterspanning: 70 V
  • Maximale collectorstroom:
  • Isolatiespanning: 5300 Vrms
  • Maximale collector-emitterverzadigingsspanning: 0.5 V
  • Vf - Voorwaartse spanning: 1.5 V
  • Vr - Sperspanning: 6 V
  • Pd - Vermogensverlies: 250 mW
  • Maximale bedrijfstemperatuur: + 100 C
  • Minimale bedrijfstemperatuur: - 55 C
  • Montagetype: Through Hole
  • Behuizing : PDIP-6

4N26 Optocoupler DIL-6

Vishay
4N26 05022017
--
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Optische koppelelementen transistoroutput Phototransistor Out
  • Uitgangstype: NPN Phototransistor
  • Aantal kanalen: 1 Channel
  • If - Voorwaartse stroom: 60 mA
  • Maximale collector-emitterspanning: 70 V
  • Maximale collectorstroom: 100mA
  • Isolatiespanning: 5000 Vrms
  • Maximale collector-emitterverzadigingsspanning: 0.5 V
  • Vf - Voorwaartse spanning: 1.5 V
  • Vr - Sperspanning: 5 V
  • Pd - Vermogensverlies: 150 mW
  • Maximale bedrijfstemperatuur: + 100 C
  • Minimale bedrijfstemperatuur: - 55 C
  • Montagetype: Through Hole
  • Behuizing : PDIP-6

4N27 Optocoupler DIL-6

Vishay
4N27 05022017
--
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Optische koppelelementen transistoroutput Phototransistor Out
  • Uitgangstype: NPN Phototransistor
  • Aantal kanalen: 1 Channel
  • If - Voorwaartse stroom: 60 mA
  • Maximale collector-emitterspanning: 70 V
  • Maximale collectorstroom: 100mA
  • Isolatiespanning: 5000 Vrms
  • Maximale collector-emitterverzadigingsspanning: 0.5 V
  • Vf - Voorwaartse spanning: 1.5 V
  • Vr - Sperspanning: 5 V
  • Pd - Vermogensverlies: 150 mW
  • Maximale bedrijfstemperatuur: + 100 C
  • Minimale bedrijfstemperatuur: - 55 C
  • Montagetype: Through Hole
  • Behuizing : PDIP-6

4N28 Optocoupler DIL-6

Vishay
4N28 14022017
--
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Optische koppelelementen transistoroutput Photo
  • Uitgangstype: transistoroutput NPN
  • Aantal kanalen: 1 Channel
  • If - Voorwaartse stroom: 60 mA
  • Maximale collector-emitterspanning: 70 V
  • Maximale collectorstroom: 100mA
  • Isolatiespanning: 5300 Vrms
  • Maximale collector-emitterverzadigingsspanning: 0.5 V
  • Vf - Voorwaartse spanning: 1.5 V
  • Vr - Sperspanning: 5 V
  • Pd - Vermogensverlies: 150 mW
  • Maximale bedrijfstemperatuur: + 100 C
  • Minimale bedrijfstemperatuur: - 55 C
  • Montagetype: Through Hole
  • Behuizing : PDIP-6

4N31 Optocoupler DIL-6

Fairchild Semiconductor
4N31 05022017
--
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Optische koppelelementen transistoroutput Photo Darlington
  • Uitgangstype: Photodarlington
  • Aantal kanalen: 1 Channel
  • If - Voorwaartse stroom: 80 mA
  • Maximale collector-emitterspanning: 30 V
  • Maximale collectorstroom: 150mA
  • Isolatiespanning: 5300 Vrms
  • Maximale collector-emitterverzadigingsspanning: 1.2 V
  • Vf - Voorwaartse spanning: 1.5 V
  • Vr - Sperspanning: 3 V
  • Pd - Vermogensverlies: 250 mW
  • Maximale bedrijfstemperatuur: + 100 C
  • Minimale bedrijfstemperatuur: - 55 C
  • Montagetype: Through Hole
  • Behuizing : PDIP-6

4N32 Optocoupler DIL-6

Vishay
4N32 14022017
--
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Optische koppelelementen transistoroutput Photo Darlington
  • Uitgangstype: Photo Darlington
  • Aantal kanalen: 1 Channel
  • If - Voorwaartse stroom: 60 mA
  • Maximale collector-emitterspanning: 30 V
  • Maximale collectorstroom: 100µA
  • Isolatiespanning: 5300 Vrms
  • Maximale collector-emitterverzadigingsspanning: 1 V
  • Vf - Voorwaartse spanning: 1.5 V
  • Vr - Sperspanning: 3 V
  • Pd - Vermogensverlies: 250 mW
  • Maximale bedrijfstemperatuur: + 100 C
  • Minimale bedrijfstemperatuur: - 55 C
  • Montagetype: Through Hole
  • Behuizing : PDIP-6

4N33 Optocoupler DIL-6

Vishay
4N33 14022017
--
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Optische koppelelementen transistoroutput Photo Darlington
  • Uitgangstype: Photo Darlington
  • Aantal kanalen: 1 Channel
  • If - Voorwaartse stroom: 60 mA
  • Maximale collector-emitterspanning: 30 V
  • Maximale collectorstroom: 100µA
  • Isolatiespanning: 5300 Vrms
  • Maximale collector-emitterverzadigingsspanning: 1 V
  • Vf - Voorwaartse spanning: 1.5 V
  • Vr - Sperspanning: 3 V
  • Pd - Vermogensverlies: 250 mW
  • Maximale bedrijfstemperatuur: + 100 C
  • Minimale bedrijfstemperatuur: - 55 C
  • Montagetype: Through Hole
  • Behuizing : PDIP-6

4N35 Optocoupler DIL-6

Vishay
4N35 14022017
--
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Optische koppelelementen transistoroutput Photo
  • Uitgangstype: transistoroutput NPN
  • Aantal kanalen: 1 Channel
  • If - Voorwaartse stroom: 60 mA
  • Maximale collector-emitterspanning: 30 V
  • Maximale collectorstroom: 100mA
  • Isolatiespanning: 5300 Vrms
  • Maximale collector-emitterverzadigingsspanning: 0.3 V
  • Vf - Voorwaartse spanning: 1.5 V
  • Vr - Sperspanning: 6 V
  • Pd - Vermogensverlies: 70 mW
  • Maximale bedrijfstemperatuur: + 100 C
  • Minimale bedrijfstemperatuur: - 55 C
  • Montagetype: Through Hole
  • Behuizing : PDIP-6

4N36 Optocoupler DIL-6

Vishay
4N36 14022017
--
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Optische koppelelementen transistoroutput Photo
  • Uitgangstype: transistoroutput NPN
  • Aantal kanalen: 1 Channel
  • If - Voorwaartse stroom: 60 mA
  • Maximale collector-emitterspanning: 30 V
  • Maximale collectorstroom: 100mA
  • Isolatiespanning: 5000 Vrms
  • Maximale collector-emitterverzadigingsspanning:
  • Vf - Voorwaartse spanning: 1.5 V
  • Vr - Sperspanning: 6 V
  • Pd - Vermogensverlies: 70 mW
  • Maximale bedrijfstemperatuur: + 100 C
  • Minimale bedrijfstemperatuur: - 55 C
  • Montagetype: Through Hole
  • Behuizing : PDIP-6

4N37 Optocoupler DIL-6

Vishay
4N37 | 14022017
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Optische koppelelementen transistoroutput Photo
  • Uitgangstype: transistoroutput NPN
  • Aantal kanalen: 1 Channel
  • If - Voorwaartse stroom: 60 mA
  • Maximale collector-emitterspanning: 30 V
  • Maximale collectorstroom: 100mA
  • Isolatiespanning: 5000 Vrms
  • Maximale collector-emitterverzadigingsspanning:
  • Vf - Voorwaartse spanning: 1.5 V
  • Vr - Sperspanning: 6 V
  • Pd - Vermogensverlies: 70 mW
  • Maximale bedrijfstemperatuur: + 100 C
  • Minimale bedrijfstemperatuur: - 55 C
  • Montagetype: Through Hole
  • Behuizing : PDIP-6

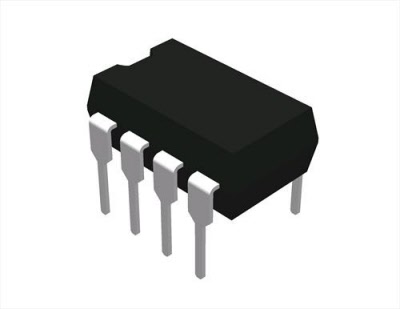

6N135 Optocoupler DIL-8

Vishay
6N135 14022017
--
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Zeer snelle optische koppelementen HS Phototransistor
  • Uitgangstype: Phototransistor
  • Aantal kanalen: 1 Channel
  • Datasnelheid: 1 Mbps
  • If - Voorwaartse stroom: 16 mA
  • Vf - Voorwaartse spanning: 1.6 V
  • Vr - Sperspanning: 5 V
  • Pd - Vermogensverlies: 100 mW
  • Daaltijd: 5 ns
  • Stijgtijd:  5 ns
  • Maximale collectorstroom: 8 mA
  • Uitgangsstroom: 16mA
  • Maximale bedrijfstemperatuur: + 70 C
  • Minimale bedrijfstemperatuur:   0 C
  • Montagetype: Through Hole
  • Behuizing : PDIP-8

6N136 Optocoupler DIL-8

Vishay
6N136 14022017
--
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Zeer snelle optische koppelementen HS Phototransistor
  • Uitgangstype: Phototransistor
  • Aantal kanalen: 1 Channel
  • Datasnelheid: 1 Mbps
  • If - Voorwaartse stroom: 16 mA
  • Vf - Voorwaartse spanning: 1.33 V
  • Vr - Sperspanning: 5 V
  • Pd - Vermogensverlies: 100 mW
  • Daaltijd: 5 ns
  • Stijgtijd:  5 ns
  • Maximale collectorstroom: 8 mA
  • Uitgangsstroom: 8mA
  • Maximale bedrijfstemperatuur: + 70 C
  • Minimale bedrijfstemperatuur:   0 C
  • Montagetype: Through Hole
  • Behuizing : PDIP-8

6N137 Optocoupler DIL-8

Vishay
6N137 | 14022017
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Zeer snelle optische koppelementen HS Phototransistor
  • Uitgangstype: open Collector
  • Aantal kanalen: 1 Channel
  • Datasnelheid: 10 Mbps
  • If - Voorwaartse stroom: 10 mA
  • Vf - Voorwaartse spanning: 1.4 V
  • Vr - Sperspanning: 5 V
  • Pd - Vermogensverlies: 85 mW
  • Daaltijd: 7 ns
  • Stijgtijd:  23 ns
  • Maximale collectorstroom: 50 mA
  • Uitgangsstroom: 50 mA
  • Maximale bedrijfstemperatuur: + 85 C
  • Minimale bedrijfstemperatuur:  - 40 C
  • Montagetype: Through Hole
  • Behuizing : PDIP-8

6N138 Optocoupler DIL-8

Onsemi
6N138M | 14022017
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Optische koppelelementen transistoroutput Photo Darlington
  • Uitgangstype: Photodarlington
  • Aantal kanalen: 1 Channel
  • If - Voorwaartse stroom: 1.6 mA
  • Maximale collector-emitterspanning:
  • Maximale collectorstroom:
  • Isolatiespanning: 5300 Vrms
  • Maximale collector-emitterverzadigingsspanning:
  • Vf - Voorwaartse spanning: 1.4 V
  • Vr - Sperspanning: 5 V
  • Pd - Vermogensverlies: 100 mW
  • Maximale bedrijfstemperatuur: + 100 C
  • Minimale bedrijfstemperatuur: - 55 C
  • Montagetype: Through Hole
  • Behuizing : PDIP-8

6N139 Optocoupler DIL-8

Vishay
6N139 14022017
--
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Optische koppelelementen transistoroutput Photo Darlington
  • Uitgangstype: Photodarlington
  • Aantal kanalen: 1 Channel
  • If - Voorwaartse stroom: 1.6 mA
  • Maximale collector-emitterspanning:
  • Maximale collectorstroom:
  • Isolatiespanning: 5300 Vrms
  • Maximale collector-emitterverzadigingsspanning:
  • Vf - Voorwaartse spanning: 1.4 V
  • Vr - Sperspanning: 5 V
  • Pd - Vermogensverlies: 100 mW
  • Maximale bedrijfstemperatuur: + 100 C
  • Minimale bedrijfstemperatuur: - 55 C
  • Montagetype: Through Hole
  • Behuizing : PDIP-8

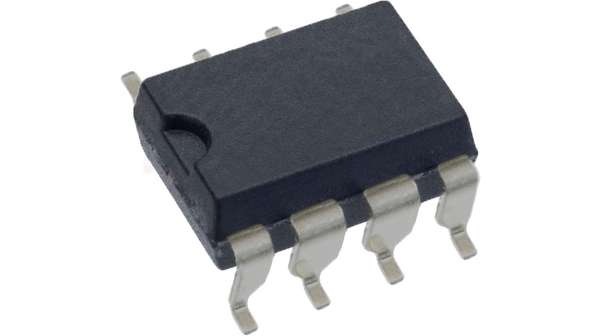

6N139S Optocoupler DIL-8GW

Everlight Electronics
6N139S (TA)-V | ond.k1 | 14082018
UITLOPEND NOG 9 STUKS OP VOORRAAD
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Optische koppelelementen transistoroutput Photo Darlington
  • Uitgangstype: Photodarlington
  • Aantal kanalen: 1 Channel
  • If - Voorwaartse stroom: 1.6 mA
  • Maximale collector-emitterspanning:
  • Maximale collectorstroom:
  • Isolatiespanning: 5300 Vrms
  • Maximale collector-emitterverzadigingsspanning:
  • Vf - Voorwaartse spanning: 1.4 V
  • Vr - Sperspanning: 5 V
  • Pd - Vermogensverlies: 100 mW
  • Maximale bedrijfstemperatuur: + 85 C
  • Minimale bedrijfstemperatuur: - 55 C
  • Montagetype: SMD
  • Behuizing : DIL-8 GW

CNR50 Optocoupler SOT271

Philips
CNR50 14022017
--
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Optocoupler
  • Uitgangstype: IC Optocoupler
  • Aantal kanalen: 1 Channel
  • If - Voorwaartse stroom: 60 mA
  • Maximale collector-emitterspanning:
  • Iout stroom: 2A
  • Vcc: 18V
  • Isolatiespanning: 5000 Vrms
  • Maximale collector-emitterverzadigingsspanning:
  • Vf - Voorwaartse spanning: 1.4 V
  • Vr - Sperspanning: 5 V
  • Ptot - Vermogen: 200 mW
  • Maximale bedrijfstemperatuur: + 150 C
  • Minimale bedrijfstemperatuur: - 55 C
  • Montagetype: Through Hole
  • Behuizing : SOT271 (DIL)

CNX36 Optocoupler DIL-6

Fairchild Semiconductor
CNX36 | ***V3 | 14022017
UITLOPEND NOG 3 STUKS OP VOORRAAD
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel



  • Type: Optocoupler witj Phototransitor Output
  • Uitgangstype: NPN Phototransistor
  • Aantal kanalen: 1 Channel
  • If - Voorwaartse stroom: 100 mA
  • Maximale collector-emitterspanning: 30 V
  • Maximale collectorstroom: 100 mA
  • Isolatiespanning: 5300 Vrms
  • Maximale collector-emitterverzadigingsspanning: 0.4 V
  • Vf - Voorwaartse spanning: 1.5 V
  • Vr - Sperspanning: 5 V
  • Pd - Vermogensverlies: 200 mW
  • Maximale bedrijfstemperatuur: + 100 C
  • Minimale bedrijfstemperatuur: - 40 C
  • Montagetype: Through Hole
  • Behuizing : PDIP-6

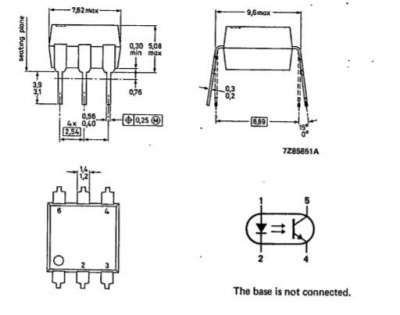

CNX62 Optocoupler DIL-6

Philips
CNX62 ***V3 14022017
--
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel

uitlopend nog 3 stuks op voorraad

  • Type: Optocoupler High Voltage Phototransitor Output
  • Uitgangstype: NPN Phototransistor
  • Aantal kanalen: 1 Channel
  • If - Voorwaartse stroom: 100 mA
  • Maximale collector-emitterspanning: 50 V
  • Maximale collectorstroom: 100 mA
  • Isolatiespanning: 3750 Vrms
  • Maximale collector-emitterverzadigingsspanning:
  • Vf - Voorwaartse spanning: 1.5 V
  • Vr - Sperspanning: 5 V
  • Ptot vermogen: 200 mW
  • Maximale bedrijfstemperatuur: + 155 C
  • Minimale bedrijfstemperatuur: - 55 C
  • Montagetype: Through Hole
  • Behuizing : PDIP-6

CNX82 Optocoupler DIL-6

Fairchild Semiconductor
CNX82 23012017
--
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type:  Optische koppelelementen transistoroutput Optocoupler Phototransistor
  • Uitgangstype: NPN Phototransistor
  • Aantal kanalen: 1 Channel
  • If - Voorwaartse stroom: 100 mA
  • Maximale collector-emitterspanning: 50 V
  • Maximale collectorstroom: 100 mA
  • Isolatiespanning: 5300 Vrms
  • Maximale collector-emitterverzadigingsspanning: 0.4 V
  • Vf - Voorwaartse spanning: 1.5 V
  • Vr - Sperspanning: 5 V
  • Pd - Vermogensverlies: 250 mW
  • Maximale bedrijfstemperatuur: + 100 C
  • Minimale bedrijfstemperatuur: - 55 C
  • Montagetype: Through Hole
  • Behuizing : PDIP-6

CNX83 Optocoupler DIL-6

Fairchild Semiconductor
CNX83 23012017
--
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type:  Optische koppelelementen transistoroutput Optocoupler Phototransistor
  • Uitgangstype: NPN Phototransistor
  • Aantal kanalen: 1 Channel
  • If - Voorwaartse stroom: 100 mA
  • Maximale collector-emitterspanning: 50 V
  • Maximale collectorstroom: 100 mA
  • Isolatiespanning: 5300 Vrms
  • Maximale collector-emitterverzadigingsspanning: 0.4 V
  • Vf - Voorwaartse spanning: 1.5 V
  • Vr - Sperspanning: 5 V
  • Pd - Vermogensverlies: 250 mW
  • Maximale bedrijfstemperatuur: + 100 C
  • Minimale bedrijfstemperatuur: - 55 C
  • Montagetype: Through Hole
  • Behuizing : PDIP-6

CNY17-1 Optocoupler DIL-6

Vishay
CNY17-1 23012017
--
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type:  Optische koppelelementen transistoroutput Optocoupler Phototransistor
  • Uitgangstype: NPN Phototransistor
  • Aantal kanalen: 1 Channel
  • If - Voorwaartse stroom: 10 mA
  • Maximale collector-emitterspanning: 70 V
  • Maximale collectorstroom: 100 mA
  • Isolatiespanning: 5000 Vrms
  • Maximale collector-emitterverzadigingsspanning: 0.4 V
  • Vf - Voorwaartse spanning: 1.65 V
  • Vr - Sperspanning: 6 V
  • Pd - Vermogensverlies: 150 mW
  • Maximale bedrijfstemperatuur: + 100 C
  • Minimale bedrijfstemperatuur: - 55 C
  • Montagetype: Through Hole
  • Behuizing : PDIP-6

CNY17-2 Optocoupler DIL-6

Vishay
CNY17-2 23012017
--
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type:  Optische koppelelementen transistoroutput Optocoupler Phototransistor
  • Uitgangstype: NPN Phototransistor
  • Aantal kanalen: 1 Channel
  • If - Voorwaartse stroom: 10 mA
  • Maximale collector-emitterspanning: 70 V
  • Maximale collectorstroom: 100 mA
  • Isolatiespanning: 5000 Vrms
  • Maximale collector-emitterverzadigingsspanning: 0.4 V
  • Vf - Voorwaartse spanning: 1.65 V
  • Vr - Sperspanning: 6 V
  • Pd - Vermogensverlies: 150 mW
  • Maximale bedrijfstemperatuur: + 100 C
  • Minimale bedrijfstemperatuur: - 55 C
  • Montagetype: Through Hole
  • Behuizing : PDIP-6

CNY17-3 Optocoupler DIL-6

Vishay
CNY17-3 23012017
--
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type:  Optische koppelelementen transistoroutput Optocoupler Phototransistor
  • Uitgangstype: NPN Phototransistor
  • Aantal kanalen: 1 Channel
  • If - Voorwaartse stroom: 60 mA
  • Maximale collector-emitterspanning: 70 V
  • Maximale collectorstroom: 100 mA
  • Isolatiespanning: 5000 Vrms
  • Maximale collector-emitterverzadigingsspanning: 0.4 V
  • Vf - Voorwaartse spanning: 1.65 V
  • Vr - Sperspanning: 6 V
  • Pd - Vermogensverlies: 150 mW
  • Maximale bedrijfstemperatuur: + 100 C
  • Minimale bedrijfstemperatuur: - 55 C
  • Montagetype: Through Hole
  • Behuizing : PDIP-6
