Tantaal | condensatoren

0.1uF 35VdcTantaal elco | TAP104M035SCS

AVX
TAP104M035SCS 14102016
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel

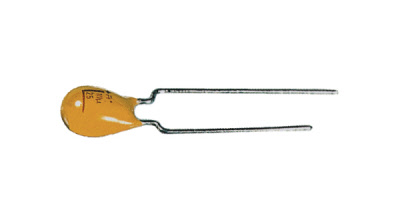

  • Type: Tantaal elco radial
  • Constructie: Radiaal, drop shape
  • Capaciteit: 0.1 µF
  • Nominale voltage 35 Vdc
  • Tolerantie: in capaciteit ±20%
  • Equivalent series resistance: -
  • Loss factor: -
  • Temperatuurbereik: -55...+85 °C

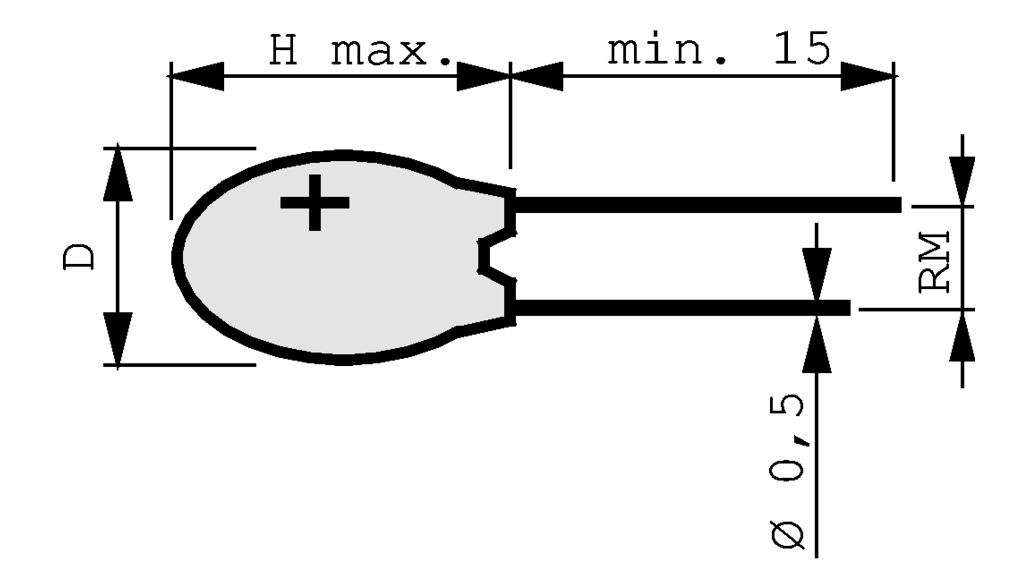

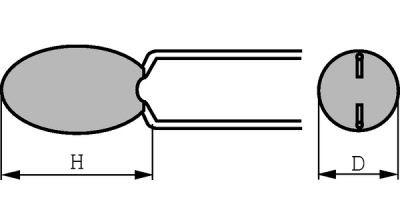

  • Diameter behuizing (D): 4.5 mm
  • Hoogte (H): 7 mm
  • Pitch: 2.54 mm =1 e

0.15uF 35VdcTantaal elco | U15V35

Kemet
T350A154M035AS 14102016
--
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Tantaal elco radial
  • Constructie: Radiaal, drop shape
  • Capaciteit: 0.15 µF
  • Nominale voltage 35 Vdc
  • Tolerantie: in capaciteit ±20%
  • Equivalent series resistance: -
  • Loss factor: -
  • Temperatuurbereik: -55...+125 °C
  • Diameter behuizing (D): 4 mm
  • Hoogte (H): 5.2 mm
  • Pitch: 2.54 mm =1e

0.22uF 35VdcTantaal elco | U22V35

Kemet
U22V35 | ***V200 | 14102016
UITLOPEND NOG +/- 200 STUKS OP VOORRAAD
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Tantaal elco radial
  • Constructie: Radiaal, drop shape
  • Capaciteit: 0.22 µF
  • Nominale voltage 35 Vdc
  • Tolerantie: in capaciteit ±20%
  • Equivalent series resistance: -
  • Loss factor: -
  • Temperatuurbereik: -55...+125 °C
  • Diameter behuizing (D): 4 mm
  • Hoogte (H): 5.2 mm
  • Pitch: 2.54 mm =1e

0.22uF 40VdcTantaal elco | U22V40

Kemet
U22V40 14102016
--
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Tantaal elco radial
  • Constructie: Radiaal, drop shape
  • Capaciteit: 0.22 µF
  • Nominale voltage 40 Vdc
  • Tolerantie: in capaciteit ±20%
  • Equivalent series resistance: -
  • Loss factor: -
  • Temperatuurbereik: -55...+125 °C
  • Diameter behuizing (D): 4 mm
  • Hoogte (H): 9 mm
  • Pitch: 5.08 mm =2e

0.33uF 35VdcTantaal elco | TCU33V35

Kemet
TC U33V35 14102016
--
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Tantaal elco radial
  • Constructie: Radiaal, drop shape
  • Capaciteit: 0.33 µF
  • Nominale voltage 35 Vdc
  • Tolerantie: in capaciteit ±20%
  • Equivalent series resistance: -
  • Loss factor: -
  • Temperatuurbereik: -55...+125 °C
  • Diameter behuizing (D): 4 mm
  • Hoogte (H): 5.2 mm
  • Pitch: 2.54 mm =1 e

0.47uF 35VdcTantaal elco | U47V35

Kemet
U47V35 14102016
--
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Tantaal elco radial
  • Constructie: Radiaal, drop shape
  • Capaciteit: 0.47 µF
  • Nominale voltage 35 Vdc
  • Tolerantie: in capaciteit ±20%
  • Equivalent series resistance: -
  • Loss factor: -
  • Temperatuurbereik: -55...+125 °C
  • Diameter behuizing (D): 4 mm
  • Hoogte (H): 6.4 mm
  • Pitch: 2.54 mm =1e

0.68uF 35VdcTantaal elco | U68V35

Kemet
U68V35 14102016
--
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Tantaal elco radial
  • Constructie: Radiaal, drop shape
  • Capaciteit: 0.68 µF
  • Nominale voltage 35 Vdc
  • Tolerantie: in capaciteit ±20%
  • Equivalent series resistance: -
  • Loss factor: -
  • Temperatuurbereik: -55...+125 °C
  • Diameter behuizing (D): 4 mm
  • Hoogte (H): 6.4 mm
  • Pitch: 2.54 mm =1e

1uF 25VdcTantaal elco | 1UV25

Kemet
T356A105M025AS7301 14102016
--
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Tantaal elco radial
  • Constructie: Radiaal, drop shape
  • Capaciteit: 1.0 µF
  • Nominale voltage 25 Vdc
  • Tolerantie: in capaciteit ±20%
  • Equivalent series resistance: -
  • Loss factor: -
  • Temperatuurbereik: -55...+125 °C
  • Diameter behuizing (D): 4 mm
  • Hoogte (H): 6.4 mm
  • Pitch: 5 mm =2e

1.5uF 25VdcTantaal elco | 1U5V25

Kemet
1U5V25 14102016
--
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Tantaal elco radial
  • Constructie: Radiaal, drop shape
  • Capaciteit: 1.5 µF
  • Nominale voltage 25 Vdc
  • Tolerantie: in capaciteit ±20%
  • Equivalent series resistance: -
  • Loss factor: -
  • Temperatuurbereik: -55...+125 °C
  • Diameter behuizing (D): 3 mm
  • Hoogte (H): 6.4 mm
  • Pitch: 2.08 mm =1e

1.5uF 35VdcTantaal elco | 1U5V35

Kemet
1U5V35 14102016
--
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Tantaal elco radial
  • Constructie: Radiaal, drop shape
  • Capaciteit: 1.5 µF
  • Nominale voltage 35 Vdc
  • Tolerantie: in capaciteit ±20%
  • Equivalent series resistance: -
  • Loss factor: -
  • Temperatuurbereik: -55...+125 °C
  • Diameter behuizing (D): 3 mm
  • Hoogte (H): 6.4 mm
  • Pitch: 2.08 mm =1e

2.2uF 35VdcTantaal elco | 2U2V35

Kemet
2U2V35 14102016
--
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Tantaal elco radial
  • Constructie: Radiaal, drop shape
  • Capaciteit: 2.2 µF
  • Nominale voltage 35 Vdc
  • Tolerantie: in capaciteit ±20%
  • Equivalent series resistance: -
  • Loss factor: -
  • Temperatuurbereik: -55...+125 °C
  • Diameter behuizing (D): 3 mm
  • Hoogte (H): 6.4 mm
  • Pitch: 2.08 mm =1e

3.3uF 35VdcTantaal elco | 3U3V35

Kemet
3U3V35 14102016
--
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Tantaal elco radial
  • Constructie: Radiaal, drop shape
  • Capaciteit: 3.3 µF
  • Nominale voltage 35 Vdc
  • Tolerantie: in capaciteit ±20%
  • Equivalent series resistance: -
  • Loss factor: -
  • Temperatuurbereik: -55...+125 °C
  • Diameter behuizing (D): 3 mm
  • Hoogte (H): 6.4 mm
  • Pitch: 2.08 mm =1e

4.7uF 25VdcTantaal elco | 4U7V25

Kemet
4U7V25 | 14102016
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Tantaal elco radial
  • Constructie: Radiaal, drop shape
  • Capaciteit: 4.7 µF
  • Nominale voltage 25 Vdc
  • Tolerantie: in capaciteit ±20%
  • Equivalent series resistance: -
  • Loss factor: -
  • Temperatuurbereik: -55...+125 °C
  • Diameter behuizing (D): 3 mm
  • Hoogte (H): 6.4 mm
  • Pitch: 2.08 mm =1e

4.7uF 35VdcTantaal elco | TC4U7V35

Kemet
TC4U7V35 14102016
--
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Tantaal elco radial
  • Constructie: Radiaal, drop shape
  • Capaciteit: 4.7 µF
  • Nominale voltage 35 Vdc
  • Tolerantie: in capaciteit ±20%
  • Equivalent series resistance: -
  • Loss factor: -
  • Temperatuurbereik: -55...+125 °C
  • Diameter behuizing (D): 4.5 mm
  • Hoogte (H): 8 mm
  • Pitch: 2.08 mm =1e

6.8uF 35VdcTantaal elco | TAP685M035SCS

AVX
TAP685M035SCS14102016
--
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Tantaal elco radial
  • Constructie: Radiaal, drop shape
  • Capaciteit: 6.8 µF
  • Nominale voltage 35 Vdc
  • Tolerantie: in capaciteit ±20%
  • Equivalent series resistance: 2.5 Ohm
  • Loss factor: 0.06
  • Temperatuurbereik: -55...+125 °C
  • Diameter behuizing (D): 6 mm
  • Hoogte (H): 11.5 mm
  • Pitch: 2.08 mm =1e

10uF 10VdcTantaal elco | TAP106M010SCS

AVX
TAP106M010SCS | 03112021
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel

  • Type: Tantaal elco radial
  • Constructie: Radiaal, drop shape
  • Capaciteit: 10 µF
  • Nominale voltage 10 Vdc
  • Tolerantie: in capaciteit ±20%
  • Equivalent series resistance: 5 Ohm
  • Loss factor:
  • Temperatuurbereik: -55...+85 °C
  • Diameter behuizing (D): 5 mm
  • Hoogte (H): 8.5 mm
  • Pitch: 2.08 mm =1e

10uF 16Vdc p=2.54mmTantaal elco | 10UV16-1E

Kemet
10UV16-1E 15102016
--
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Tantaal elco radial
  • Constructie: Radiaal, drop shape
  • Capaciteit: 10 µF
  • Nominale voltage 16 Vdc
  • Tolerantie: in capaciteit ±20%
  • Equivalent series resistance: -
  • Loss factor: -
  • Temperatuurbereik: -55...+125 °C
  • Diameter behuizing (D): 3.2 mm
  • Hoogte (H): 6.4 mm
  • Pitch: 2.54 mm =1e

10uF 16Vdc p=5.08mmTantaal elco | 10UV16-2E

Kemet
10UV16-2E 15102016
--
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Tantaal elco radial
  • Constructie: Radiaal, drop shape
  • Capaciteit: 10 µF
  • Nominale voltage 16 Vdc
  • Tolerantie: in capaciteit ±20%
  • Equivalent series resistance: -
  • Loss factor: -
  • Temperatuurbereik: -55...+125 °C
  • Diameter behuizing (D): 4 mm
  • Hoogte (H): 7 mm
  • Pitch: 5.08 mm =2e

10uF 35VdcTantaal elco | T350G106M035AT

Kemet
T350G106M035AT | 03112021
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel

  • Type: Tantaal elco radial
  • Constructie: Radiaal, drop shape
  • Capaciteit: 10 µF
  • Nominale voltage 35 Vdc
  • Tolerantie: in capaciteit ±20%
  • Equivalent series resistance: -
  • Loss factor: -
  • Temperatuurbereik: -55...+125 °C
  • Diameter behuizing (D): 6 mm
  • Hoogte (H): 10.2 mm
  • Pitch: 2.54 mm =1e

15uF 6VdcTantaal elco | 15UV6

Kemet
15UV6 15102016
--
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Tantaal elco radial
  • Constructie: Radiaal, drop shape
  • Capaciteit: 15 µF
  • Nominale voltage 6 Vdc
  • Tolerantie: in capaciteit ±20%
  • Equivalent series resistance: -
  • Loss factor: -
  • Temperatuurbereik: -55...+125 °C
  • Diameter behuizing (D): 3.5 mm
  • Hoogte (H): 6.4 mm
  • Pitch: 2.54 mm =1e

15uF 16VdcTantaal elco | TC15UV16

Kemet
TC 15UV16 15102016
--
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Tantaal elco radial
  • Constructie: Radiaal, drop shape
  • Capaciteit: 15 µF
  • Nominale voltage 16 Vdc
  • Tolerantie: in capaciteit ±20%
  • Equivalent series resistance: -
  • Loss factor: -
  • Temperatuurbereik: -55...+125 °C
  • Diameter behuizing (D): 3.5 mm
  • Hoogte (H): 6.4 mm
  • Pitch: 2.54 mm =1e

15uF 25VdcTantaal elco | 15UV25

Kemet
15UV25 15102016
--
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Tantaal elco radial
  • Constructie: Radiaal, drop shape
  • Capaciteit: 15 µF
  • Nominale voltage 25 Vdc
  • Tolerantie: in capaciteit ±20%
  • Equivalent series resistance: -
  • Loss factor: -
  • Temperatuurbereik: -55...+125 °C
  • Diameter behuizing (D): 5.5 mm
  • Hoogte (H): 9.4 mm
  • Pitch: 2.54 mm =1e

15uF 35Vdc P=5.08mmTantaal elco | 15UV35

Kemet
15UV35 15102016
--
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Tantaal elco radial
  • Constructie: Radiaal, drop shape
  • Capaciteit: 15 µF
  • Nominale voltage 35 Vdc
  • Tolerantie: in capaciteit ±20%
  • Equivalent series resistance: -
  • Loss factor: -
  • Temperatuurbereik: -55...+125 °C
  • Diameter behuizing (D): 6.2 mm
  • Hoogte (H): 11.2 mm
  • Pitch: 5.08 mm =2e

22uF 10VdcTantaal elco | 22U10

Kemet
22U10 14102016
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Tantaal elco radial
  • Constructie: Radiaal, drop shape
  • Capaciteit: 22 µF
  • Nominale voltage 25 Vdc
  • Tolerantie: in capaciteit ±20%
  • Equivalent series resistance: -
  • Loss factor: -
  • Temperatuurbereik: -55...+125 °C
  • Diameter behuizing (D): 3.4 mm
  • Hoogte (H): 7.2 mm
  • Pitch: 2.54 mm

22uF 16VdcTantaal elco | TAP226M016CCS

AVX
TAP226M016CCS 14102016
--
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Tantaal elco radial
  • Constructie: Radiaal, drop shape
  • Capaciteit: 22 µF
  • Nominale voltage 16 Vdc
  • Tolerantie: in capaciteit ±20%
  • Equivalent series resistance: 2.0 Ohm
  • Loss factor: 0.08
  • Temperatuurbereik: -55...+125 °C
  • Diameter behuizing (D): 6 mm
  • Hoogte (H): 11.5 mm
  • Pitch: 5 mm
