1uF Elektrolytische condensatoren radiaal

1uF 50Vdc Elektrolytische condensator | 860160672002

Würth Elektronik
860160672002 | 12072023
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Aluminium Elektrolytische condensator
  • Constructie: Radiaal
  • Capaciteit: 1 µF
  • Nominale voltage 50 Vdc
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur: 4000h
  • Lekstroom : 3 µA
  • Max. ripple current, rimpelstroom : 24 mA
  • Temperatuurbereik: -55...+105 °C
  • Diameter: behuizing 5 mm
  • Lengte: 11 mm
  • Pitch: 2mm

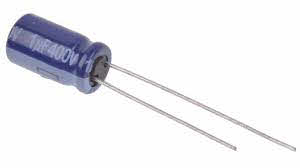

1uF 400Vdc Elektrolytische condensator | ECA2GM010

Panasonic
ECA2GM010 | 12012017
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Aluminium Elektrolytische condensator
  • Constructie: Radiaal
  • Capaciteit: 1 µF
  • Nominale voltage 400 Vdc
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur: 2000h
  • Equivalent series resistance:
  • Max. ripple current:
  • Temperatuurbereik: -55...+85 °C
  • Diameter: behuizing 6.3 mm
  • Lengte: 11.2 mm
  • Pitch: 2.5mm
