10uF Elektrolytische condensatoren radiaal

10uF 50Vdc Elco Radiaal Low impedance | EEUFC1H100LH

Panasonic
EEUFC1H100LH | 04082016
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Aluminium Elektrolytische condensator
  • Low Impedance Low ESR
  • Constructie: Radiaal
  • Capaciteit: 10 µF
  • Nominale voltage 50 Vdc
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur: 1000h
  • Equivalent series resistance: 0.026 Ohm
  • Max. ripple current: 125mA
  • Temperatuurbereik: -55...+105 °C
  • Diameter: behuizing 5 mm
  • Lengte: 11 mm
  • Pitch: 2.5mm

10uF 63Vdc 105gr Elektrolytische condensator | 860020772010

Würth Elektronik
860020772010 | 29092021
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
vishayccomponents2-170x170



  • Type: Aluminium Elektrolytische condensator
  • Constructie: Radiaal
  • Capaciteit: 10 µF
  • Nominale voltage 63 Vdc
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur:  2000h
  • Equivalent series resistance:
  • Max. ripple current: 42mA
  • Temperatuurbereik: -4...105 °C
  • Diameter: behuizing  5 mm
  • Lengte: 11 mm
  • Pitch: 2 mm

10uF 63Vdc Elektrolytische condensator | EEUEB1J100SH

Panasonic
EEUEB1J100SH | 06082020
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel

  • Type: Aluminium Elektrolytische condensator
  • Constructie: Radiaal
  • Capaciteit: 10 µF
  • Nominale voltage 63 Vdc
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur: 5000h
  • Equivalent series resistance:
  • Max. ripple current:
  • Temperatuurbereik: -40...+105 °C
  • Diameter: behuizing 5 mm
  • Lengte:11 mm
  • Pitch: 2.5mm

10uF 250Vdc Elektrolytische condensator | ECA2EHG100

Panasonic
ECA2EHG100 | 2412018
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel



  • Type: Aluminium Elektrolytische condensator
  • Constructie: Radiaal
  • Capaciteit: 10 µF
  • Nominale voltage 250 Vdc
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur: 2000u
  • Equivalent series resistance:
  • Max. ripple current: --A
  • Temperatuurbereik: -25...+105 °C
  • Diameter: behuizing 10 mm
  • Lengte: 16 mm
  • Pitch: 5mm

10uF 350Vdc Elektrolytische condensator | 10UF350VY

Yageo
10UF-350VY | ***V36 | 06022017
UITLOPEND NOG 36 STUKS OP VOORRAAD
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Aluminium Elektrolytische condensator
  • Constructie: Radiaal
  • Capaciteit: 10 µF
  • Nominale voltage 350 Vdc
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur:
  • Equivalent series resistance:
  • Max. ripple current:
  • Temperatuurbereik: -55...+105 °C
  • Diameter: behuizing 10 mm
  • Lengte:16 mm
  • Pitch:5 mm

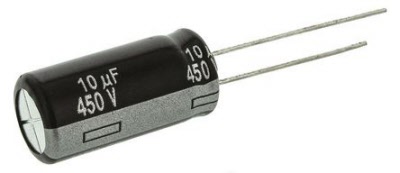

10uF 450Vdc Elektrolytische condensator | EEUEE2W100U

Panasonic
EEUEE2W100U | 27012021
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel



  • Type: Aluminium Elektrolytische condensator
  • Constructie: Radiaal
  • Capaciteit: 10 µF
  • Nominale voltage 450 Vdc
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur: 8000u
  • Equivalent series resistance:
  • Max. ripple current: 330mA
  • Temperatuurbereik: -25...+105 °C
  • Diameter: behuizing 10 mm
  • Lengte: 20 mm
  • Pitch: 5mm

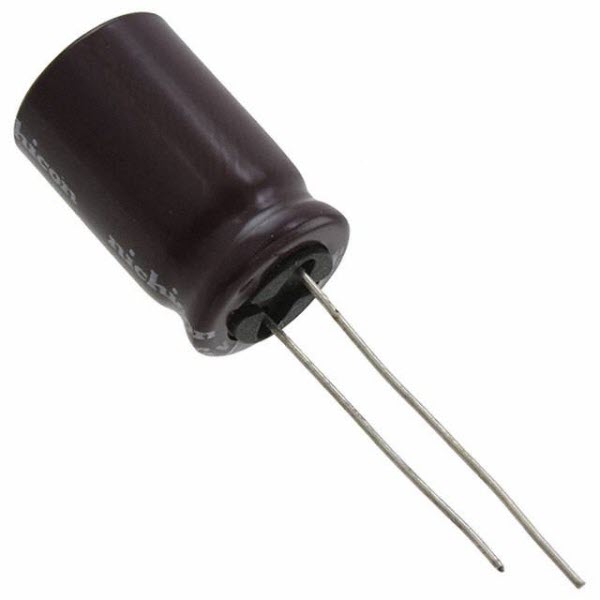

10uF 450Vdc Elektrolytische condensator | UVZ2W100MHD

Nichicon
UVZ2W100MHD | 12012022
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel



  • Type: Aluminium Elektrolytische condensator
  • Constructie: Radiaal
  • Capaciteit: 10 µF
  • Nominale voltage 450 Vdc
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur: 1000u
  • Equivalent series resistance:
  • Max. ripple current: 65mA
  • Temperatuurbereik: -25...+105 °C
  • Diameter: behuizing 12 mm
  • Lengte: 20 mm
  • Pitch: 5mm
