47uF Elektrolytische condensatoren radiaal

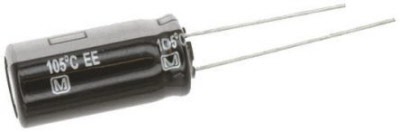

47uF 25Vdc Elektrolytische condensator Low impedance | EEUFM1E470

Panasonic
EEUFM1E470 | 15092016
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel

  • Type: Aluminium Elektrolytische condensator
  • Low Impedance Low ESR
  • Constructie: Radiaal
  • Capaciteit: 47 µF
  • Nominale voltage 25 Vdc
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur: 2000h
  • Equivalent series resistance: 0.3 Ohm
  • Max. ripple current: 280mA
  • Temperatuurbereik: -55...+105 °C
  • Diameter: behuizing 5 mm
  • Lengte: 11 mm
  • Pitch: 2mm

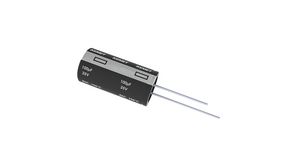

47uF 25Vdc Elekt. condensator Low imp. | ESY476M025AC3AA

Kemet
ESY476M025AC3AA | 19112020
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel

  • Type: Aluminium Elektrolytische condensator
  • Low Impedance Low ESR
  • Constructie: Radiaal
  • Capaciteit: 47 µF
  • Nominale voltage 25 Vdc
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur: 2000h
  • Equivalent series resistance:
  • Max. ripple current: 280mA
  • Temperatuurbereik: -40...+105 °C
  • Diameter: behuizing 5 mm
  • Lengte: 11 mm
  • Pitch: 2mm

47uF 63Vdc Elektrolytische condensator Low impedance | EEUFR1J470B

Panasonic
EEUFR1J470B | 26112018
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel

  • Type: Aluminium Elektrolytische condensator
  • Low Impedance Low ESR
  • Constructie: Radiaal
  • Capaciteit: 47 µF
  • Nominale voltage 63 Vdc
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur: 5000h
  • Equivalent series resistance: 0.21 Ohm
  • Max. ripple current: 284mA
  • Temperatuurbereik: -55...+105 °C
  • Diameter: behuizing 6.3 mm
  • Lengte: 11.2 mm
  • Pitch: 5mm

47uF 63Vdc Elektrolytische condensator Low impedance | EEUFR1J470

Panasonic
EEUFR1J470 15092016
    Levertijd:geen voorraad artikel levertijd 2-4 werkdagen
Bestel

  • Type: Aluminium Elektrolytische condensator
  • Low Impedance Low ESR
  • Constructie: Radiaal
  • Capaciteit: 47 µF
  • Nominale voltage 63 Vdc
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur: 5000h
  • Equivalent series resistance: 0.21 Ohm
  • Max. ripple current: 284mA
  • Temperatuurbereik: -55...+105 °C
  • Diameter: behuizing 6.3 mm
  • Lengte: 11.2 mm
  • Pitch: 2.5mm

47uF 160Vdc Elektrolytische condensator | EEUEE2C470

Panasonic
EEUEE2C470 | 06062017
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel

  • Type: Aluminium Elektrolytische condensator
  • High Ripple current
  • Constructie: Radiaal
  • Capaciteit: 47 µF
  • Nominale voltage 160 Vdc
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur: 8000h
  • Equivalent series resistance:
  • Max. ripple current: 1065mA
  • Temperatuurbereik: -55...+105 °C
  • Diameter: behuizing 10 mm
  • Lengte: 20 mm
  • Pitch: 5mm

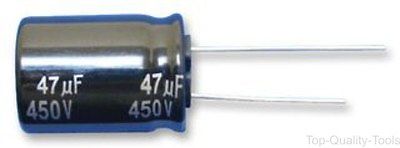

47uF 450Vdc Elektrolytische condensator | EEUEE2W470

Panasonic
EEUEE2W470 | 29072017
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel



  • Type: Aluminium Elektrolytische condensator
  • Constructie: Radiaal
  • Capaciteit: 47 µF
  • Nominale voltage 450 Vdc
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur: 10.000u
  • Equivalent series resistance:
  • Max. ripple current: 1.2A
  • Temperatuurbereik: -55...+105 °C
  • Diameter: behuizing 16 mm
  • Lengte: 31.5 mm
  • Pitch: 7.5mm

47uF 450Vdc Elektrolytische condensator | EEUEE2W470S

Panasonic
EEUEE2W47S | 11022022
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel



  • Type: Aluminium Elektrolytische condensator
  • Constructie: Radiaal
  • Capaciteit: 47 µF
  • Nominale voltage 450 Vdc
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur: 10.000u
  • Equivalent series resistance:
  • Max. ripple current: 1.2A
  • Temperatuurbereik: -55...+105 °C
  • Diameter: behuizing 18 mm
  • Lengte: 25 mm
  • Pitch: 7.5mm
