220uF Elektrolytische condensatoren radiaal

220uF 10Vdc Elektrolytische condensator | 22010VBCC

Philips / BC components
220uF 10V | ***V200 | 20102016
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
philips elco
  • Type: Aluminium Elektrolytische condensator
  • Capaciteit: 220 µF
  • Nominale voltage 10 Vdc
  • Tolerantie: in capaciteit ±20%
  • Pitch: 2.54 mm
  • Temperatuurbereik: -40...+85 °C
  • Diameter: behuizing 6.3 mm
  • Lengte: 12 mm
  • Constructie: Radiaal

220uF 10Vdc 105gr Elektrolytische condensator | 220UF10VDC

Unbranded
220uF/10V | ***V100 | 20102016
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Aluminium Elektrolytische condensator
  • Capaciteit: 220 µF
  • Nominale voltage 10 Vdc
  • Tolerantie: in capaciteit ±20%
  • Pitch: 2.54 mm
  • Temperatuurbereik: -40...+105 °C
  • Diameter: behuizing 5 mm
  • Lengte: 12 mm
  • Constructie: Radiaal

220uF 16Vdc Elektrolytische condensator | ECR1CBK221MFF

Jianghai
263 220UV16T | 20102016
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Aluminium Elektrolytische condensator
  • Capaciteit: 220 µF
  • Nominale voltage 16 Vdc
  • Tolerantie: in capaciteit ±20%
  • Pitch: 2.5 mm
  • Temperatuurbereik: -40...+105 °C
  • Diameter: behuizing 6.3 mm
  • Lengte: 11 mm
  • Constructie: Radiaal

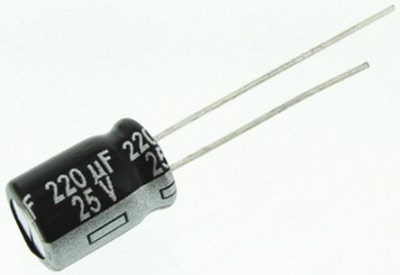

220uF 25Vdc Elektrolytische condensator | ECA1EHG221

Panasonic
15 | ECA1EHG221 | 04082017
kg
    Levertijd:geen voorraad levertijd week 15 2024 verwachting
Bestel
  • Type: Aluminium Elektrolytische condensator
  • Constructie: Radiaal
  • Capaciteit: 220 µF
  • Nominale voltage 25VDC
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur: 1000 h
  • Equivalent series resistance:  Ohm
  • Max. ripple current:  mA
  • Temperatuurbereik: -40...+105 °C
  • Diameter: behuizing 8 mm
  • Lengte: 11.5mm
  • Pitch: 3.5 mm

220uF 25Vdc Elektrolytische condensator Low impedance | EEUFR1E221

Panasonic
EEUFR1E221 | 08072017
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Aluminium Elektrolytische condensator
  • Low Impedance Low ESR
  • Constructie: Radiaal
  • Capaciteit: 220 µF
  • Nominale voltage 25VDC
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur: 6000 h
  • Equivalent series resistance: 0.056 Ohm
  • Max. ripple current: 950 mA
  • Temperatuurbereik: -40...+105 °C
  • Diameter: behuizing 8 mm
  • Lengte: 11.5mm
  • Pitch: 3.55 mm

220uF 35Vdc Elektrolytische condensator | ESW227M035AG4AA

Kemet
ESW227M035AG4AA | 29112021
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Aluminium Elektrolytische condensator
  • Constructie: Radiaal
  • Capaciteit: 220 µF
  • Nominale voltage 35Vdc
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur: 4000 h
  • Equivalent series resistance:  Ohm
  • Max. ripple current: 77 µA
  • Temperatuurbereik: -40...+105 °C
  • Diameter: behuizing 8 mm
  • Lengte: 15mm
  • Pitch: 3.5 mm

220uF 35Vdc Elektrolytische condensator Low impedance | EEUFM1V221L

Panasonic
EEUFM1V221L | 14112019
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Aluminium Elektrolytische condensator
  • Low Impedance Low ESR
  • Constructie: Radiaal
  • Capaciteit: 220 µF
  • Nominale voltage 35Vdc
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur: 3000 h
  • Equivalent series resistance:  Ohm
  • Max. ripple current: 77 µA
  • Temperatuurbereik: -40...+105 °C
  • Diameter: behuizing 8 mm
  • Lengte: 15mm
  • Pitch: 3.5 mm

220uF 63Vdc Elektrolytische condensator | ECA1JHG221

Panasonic
ECA1JHG221 28112016
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Aluminium Elektrolytische condensator
  • Constructie: Radiaal
  • Capaciteit: 220 µF
  • Nominale voltage 63 VDC
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur: 2000h
  • Equivalent series resistance: -- Ohm
  • Max. ripple current: --mA
  • Temperatuurbereik: -55...+105 °C
  • Diameter: behuizing 10 mm
  • Lengte: 16 mm
  • Pitch: 5mm

220uF 63Vdc Elektrolytische condensator Low ESR | EEUFR1J221L

Panasonic
EEUFR1J221L 02052018
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Aluminium Elektrolytische condensator
  • Low ESR
  • Constructie: Radiaal
  • Capaciteit: 220 µF
  • Nominale voltage 63 VDC
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur: 10.000h
  • Equivalent series resistance: 0.033 Ohm
  • Max. ripple current: 1500 mA
  • Temperatuurbereik: -40...+105 °C
  • Diameter: behuizing 10 mm
  • Lengte: 25 mm
  • Pitch: 5mm

220uF 200Vdc Snap-In Elektrolytische condensator | 220UF200V

Nippon Chemi-Con
220UF-200V | ***V+/-60 | 29112016
UITLOPEND NOG +/- 60 STUKS OP VOORRAAD
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
2220 200v nipp
  • Type: Aluminium Elektrolytische condensator
  • Constructie: Radiaal Snap-In
  • Capaciteit: 220 µF
  • Nominale voltage 200 Vdc
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur:
  • Equivalent series resistance:
  • Max. ripple current: --
  • Temperatuurbereik: -25...+105 °C
  • Diameter: behuizing 25 mm
  • Lengte: 22 mm
  • Pitch: 10mm

220uF 250Vdc Elektrolytische condensator | EEUED2E221

Panasonic
EEUED2E221 | magK | 22022020
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Aluminium Elektrolytische condensator
  • Constructie: Radiaal
  • Capaciteit: 220 µF
  • Nominale voltage 250 Vdc
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur: 10.000h
  • Equivalent series resistance: -- Ohm
  • Max. ripple current: --mA
  • Temperatuurbereik: -55...+105 °C
  • Diameter: behuizing 18 mm
  • Lengte: 40 mm
  • Pitch: 7.5mm
