330uF Elektrolytische condensatoren radiaal

330uF 16Vdc Elektrolytische condensator Low impedance | EEUFM1C331

Panasonic
EEUFM1C331 29062017
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Aluminium Elektrolytische condensator
  • Low Impedance Low ESR
  • Constructie: Radiaal
  • Capaciteit: 330 µF
  • Nominale voltage 16 Vdc
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur: 3000h
  • Equivalent series resistance: 0.056 Ohm
  • Max. ripple current: 950mA
  • Temperatuurbereik: -40...+105 °C
  • Diameter: behuizing 8 mm
  • Lengte: 11.5 mm
  • Pitch: 3.55mm

330uF 25Vdc Elektrolytische condensator Low impedance | EEUFM1E331

Panasonic
EEUFM1E331 08082016
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Aluminium Elektrolytische condensator
  • Low Impedance Low ESR
  • Constructie: Radiaal
  • Capaciteit: 330 µF
  • Nominale voltage 25 Vdc
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur: 4000h
  • Equivalent series resistance: 0.026 Ohm
  • Max. ripple current: 1290mA
  • Temperatuurbereik: -40...+105 °C
  • Diameter: behuizing 10 mm
  • Lengte: 12.5 mm
  • Pitch: 5mm

330uF 63Vdc 85gr Elektrolytische condensator | 330UF63V

Philips / BC components
330uF-63VBCC | ***V84 | 28112016
UITLOPEND NOG 84 STUKS OP VOORRAAD
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Aluminium Elektrolytische condensator
  • BCC 037 serie
  • Constructie: Radiaal
  • Capaciteit: 330 µF
  • Nominale voltage 63 Vdc
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur: --
  • Equivalent series resistance: -- Ohm
  • Max. ripple current: --
  • Temperatuurbereik: -40...+85 °C
  • Diameter: behuizing 13 mm
  • Lengte: 20 mm
  • Pitch: 5 mm

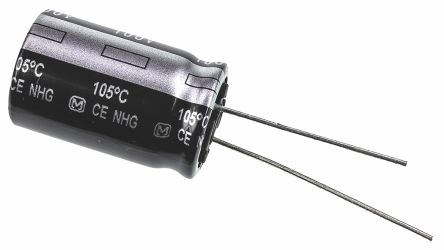

330uF 63Vdc Elektrolytische condensator | ECA1JHG331

Panasonic
ECA1JHG331 | 30062021
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Aluminium Elektrolytische condensator
  • Constructie: Radiaal
  • Capaciteit: 330 µF
  • Nominale voltage 63 Vdc
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur: 2000h
  • Equivalent series resistance:  Ohm
  • Max. ripple current: 510mA
  • Temperatuurbereik: -55...+105 °C
  • Diameter: behuizing 10 mm
  • Lengte: 20 mm
  • Pitch: 5 mm

330uF 100Vdc 85gr Elektrolytische condensator | 330UF100V

Philips / BC components
330UF-100VBCC | ***V524 | 28112016
UITLOPEND NOG 524 STUKS OP VOORRAAD
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Aluminium Elektrolytische condensator
  • BCC 037 serie
  • Constructie: Radiaal
  • Capaciteit: 330 µF
  • Nominale voltage 100 Vdc
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur: --
  • Equivalent series resistance: -- Ohm
  • Max. ripple current: --
  • Temperatuurbereik: -40...+85 °C
  • Diameter: behuizing 16 mm
  • Lengte: 25 mm
  • Pitch: 7.5 mm

330uF 100Vdc Elektrolytische condensator | ECA2AHG331

Panasonic
ECA2AHG331 | magK | 22022020
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Aluminium Elektrolytische condensator
  • Constructie: Radiaal
  • Capaciteit: 330 µF
  • Nominale voltage 100 Vdc
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur: 2000h
  • Equivalent series resistance:  Ohm
  • Max. ripple current: 540mA
  • Temperatuurbereik: -55...+105 °C
  • Diameter: behuizing 16 mm
  • Lengte: 26 mm
  • Pitch: 7.5 mm

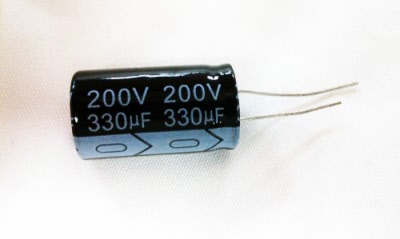

330uF 200Vdc 85gr Elektrolytische condensator | ECA2DM331

Panasonic
ECA2DM331 | ***V2 | 20052019
UITLOPEND NOG 2 STUKS OP VOORRAAD
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel

  • Type: Aluminium Elektrolytische condensator
  • Capaciteit: 330 µF
  • Nominale voltage 200 Vdc
  • Tolerantie: in capaciteit ±20%
  • Pitch:7.5 mm
  • Temperatuurbereik: -40...+85 °C
  • Diameter: behuizing 18 mm
  • Lengte: 40 mm
  • Constructie: Radiaal
