680uF Elektrolytische condensatoren radiaal

680uF 16Vdc 85gr Elektrolytische condensator | 680UF16V

Philips / BC components
680UF-16VBCC 01112016
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Aluminium Elektrolytische condensator
  • Constructie: Radiaal
  • Capaciteit: 680 µF
  • Nominale voltage 16 Vdc
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur: --
  • Equivalent series resistance: -- Ohm
  • Max. ripple current: --
  • Temperatuurbereik: -40...+85 °C
  • Diameter: behuizing 10 mm
  • Lengte: 16 mm
  • Pitch: 5 mm

680uF 25Vdc Elektrolytische condensator Low impedance | EEUFR1E681

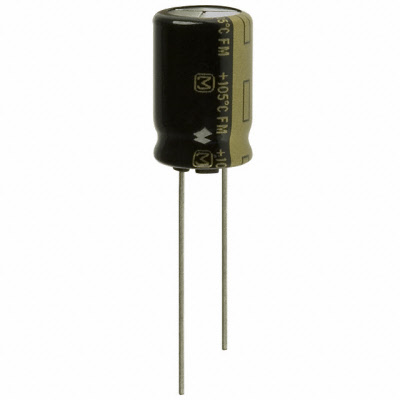

Panasonic
EEUFR1E681 | 17072017
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Aluminium Elektrolytische condensator
  • Low Impedance Low ESR
  • Constructie: Radiaal
  • Capaciteit: 680 µF
  • Nominale voltage 25 VDC
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur: 8000h
  • Equivalent series resistance: 0.028 Ohm
  • Max. ripple current: 1790mA
  • Temperatuurbereik: -40...+105 °C
  • Diameter: behuizing  10 mm
  • Lengte: 16 mm
  • Pitch: 5mm

680uF 25Vdc Elektrolytische condensator Low impedance | EEUFR1E681L

Panasonic
EEUFR1E681L | 06042021
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Aluminium Elektrolytische condensator
  • Low Impedance Low ESR
  • Constructie: Radiaal
  • Capaciteit: 680 µF
  • Nominale voltage 25 VDC
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur: 8000h
  • Equivalent series resistance: 0.028 Ohm
  • Max. ripple current: 1790mA
  • Temperatuurbereik: -40...+105 °C
  • Diameter: behuizing  8  mm
  • Lengte: 20 mm
  • Pitch: 3.5 mm

680uF 35Vdc Elektrolytische condensator Low impedance | EEUFR1V681

Panasonic
EEUFR1V681 | 29122016
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Aluminium Elektrolytische condensator
  • Low Impedance Low ESR
  • Constructie: Radiaal
  • Capaciteit: 680 µF
  • Nominale voltage 35 VDC
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur: 10.000h
  • Equivalent series resistance: 0.02 Ohm
  • Max. ripple current: 2180mA
  • Temperatuurbereik: -40...+105 °C
  • Diameter: behuizing 10 mm
  • Lengte: 20 mm
  • Pitch: 5mm

680uF 63Vdc Elektrolytische condensator Low impedance | EEUFC1J681

Panasonic
EEUFC1J681 | 18122017
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Aluminium Elektrolytische condensator
  • Low Impedance LOW ESR
  • Constructie: Radiaal
  • Capaciteit: 680 µF
  • Nominale voltage 63Vdc
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur: 5000h
  • Equivalent series resistance: -- Ohm
  • Max. ripple current: 2160mA
  • Temperatuurbereik: -40...+105 °C
  • Diameter: behuizing 16 mm
  • Lengte: 25 mm
  • Pitch: 7.5 mm

680uF 250Vdc Elektrolytische condensator | RND150KLZ250M681N50Y

RND Components
RND 150KLZ250M681N50Y | 27012021
    Levertijd:geen voorraad artikel levertijd 2-4 werkdagen
Bestel
  • Type: Aluminium Elektrolytische condensator
  • Constructie: Radiaal
  • Capaciteit: 680 µF
  • Nominale voltage 250Vdc
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur: 2000h
  • Equivalent series resistance: -- Ohm
  • Max. ripple current: 3mA
  • Temperatuurbereik: -40...+105 °C
  • Diameter: behuizing 25 mm
  • Lengte: 50 mm
  • Pitch: 10 mm
