1500uF Elektrolytische condensatoren radiaal

1500uF 6.3Vdc Elektrolytische condensator | 1500UF6.3V

Yageo
1500UF-6.3V 25102016
--
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Aluminium Elektrolytische condensator
  • Constructie: Radiaal
  • Capaciteit: 1500 µF
  • Nominale voltage 6.3 Vdc
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur: --
  • Equivalent series resistance: -- Ohm
  • Max. ripple current: --
  • Temperatuurbereik: -40...+105 °C
  • Diameter: behuizing 10 mm
  • Lengte: 16 mm
  • Pitch: 5 mm

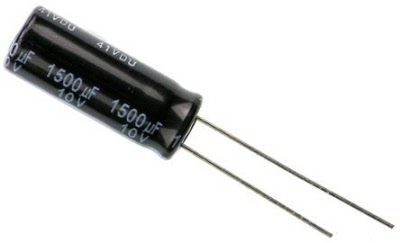

1500uF 10Vdc Elektrolytische condensator Low impedance | EEUFR1A152L

Panasonic
EEUFR1A152L | 17072017
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Aluminium Elektrolytische condensator
  • Low Impedance Low ESR
  • Constructie: Radiaal
  • Capaciteit: 1500 µF
  • Nominale voltage 10 Vdc
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur: 9000h
  • Equivalent series resistance: 0.003 Ohm
  • Max. ripple current: 1560 mA
  • Temperatuurbereik: -40...+105 °C
  • Diameter: behuizing 8 mm
  • Lengte: 20 mm
  • Pitch: 3.5 mm

1500uF 16Vdc 85gr Elektrolytische condensator | 1500UF16V

Philips / BC components
1500UF-16VBCC 25102016
--
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Aluminium Elektrolytische condensator
  • Constructie: Radiaal
  • Capaciteit: 1500 µF
  • Nominale voltage 16 Vdc
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur: --
  • Equivalent series resistance: -- Ohm
  • Max. ripple current: --
  • Temperatuurbereik: -40...+85 °C
  • Diameter: behuizing 13 mm
  • Lengte: 20 mm
  • Pitch: 5 mm

1500uF 25Vdc Elektrolytische condensator Low impedance | EEUFR1E152

Panasonic
EEUFR1E152 | 18122017
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Aluminium Elektrolytische condensator
  • Low Impedance Low ESR
  • Constructie: Radiaal
  • Capaciteit: 1500 µF
  • Nominale voltage 25 Vdc
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur: 10.000h
  • Equivalent series resistance: 0.018 Ohm
  • Max. ripple current: 2600 mA
  • Temperatuurbereik: -40...+105 °C
  • Diameter: behuizing 12.5 mm
  • Lengte: 20 mm
  • Pitch: 5 mm

1500uF 35Vdc Elektrolytische condensator Low impedance | EEUFR1V152L

Panasonic
EEUFR1V152L 18102017
    Levertijd:geen voorraad artikel levertijd 2-4 werkdagen
Bestel
  • Type: Aluminium Elektrolytische condensator
  • Low Impedance Low ESR
  • Constructie: Radiaal
  • Capaciteit: 1500 µF
  • Nominale voltage 35 Vdc
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur: 10.000h
  • Equivalent series resistance: 0.013 Ohm
  • Max. ripple current: 3630 mA
  • Temperatuurbereik: -40...+105 °C
  • Diameter: behuizing 12.5 mm
  • Lengte: 30 mm
  • Pitch: 5 mm

1500uF 50Vdc Elektrolytische condensator | 150050

Antel
1500/50 mag/k 28102016
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Aluminium Elektrolytische condensator
  • Constructie: Radiaal
  • Capaciteit: 1500 µF
  • Nominale voltage 50 Vdc
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur: --
  • Equivalent series resistance: -- Ohm
  • Max. ripple current: --
  • Temperatuurbereik: -40...+105 °C
  • Diameter: behuizing 16 mm
  • Lengte: 37 mm
  • Pitch: 7.5 mm

1500uF 63Vdc Elektrolytische condensator | 222205658152

Philips / BC components
2222 056 58152 mag/k 28102016
--
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Aluminium Elektrolytische condensator
  • Constructie: Radiaal
  • Capaciteit: 1500 µF
  • Nominale voltage 63 Vdc
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur: --
  • Equivalent series resistance: -- Ohm
  • Max. ripple current: --
  • Temperatuurbereik: -40...+85 °C
  • Diameter: behuizing 22 mm
  • Lengte: 30 mm
  • Pitch: 10 mm
