2200uF Elektrolytische condensatoren radiaal

2200uF 10Vdc Elektrolytische condensator Low impedance | EEUFM1A222

Panasonic
EEUFM1A222 | 06042017
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Aluminium Elektrolytische condensator
  • Low Impedance Low ESR
  • Constructie: Radiaal
  • Capaciteit: 2200 µF
  • Nominale voltage 10 Vdc
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur: 5000h
  • Equivalent series resistance: 0.018 Ohm
  • Max. ripple current: 2600 mA
  • Temperatuurbereik: -40...+105 °C
  • Diameter: behuizing 12.5 mm
  • Lengte: 25 mm
  • Pitch: 5 mm

2200uF 16Vdc 85gr Elektrolytische condensator | 2200UV16

Philips / BC components
222203755222 | ***V200 | 24102016
UITLOPEND NOG +/- 200 STUKS OP VOORRAAD
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Aluminium Elektrolytische condensator
  • Constructie: Radiaal
  • Capaciteit: 2200 µF
  • Nominale voltage 16 Vdc
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur: --
  • Equivalent series resistance: -- Ohm
  • Max. ripple current: --
  • Temperatuurbereik: -40...+85 °C
  • Diameter: behuizing 12.5 mm
  • Lengte: 25 mm
  • Pitch: 5 mm

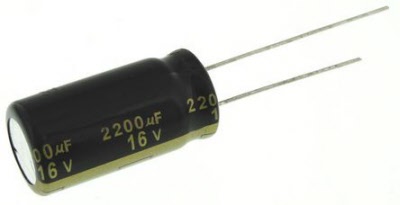

2200uF 16Vdc Elektrolytische condensator Low impedance | EEUFM1C222

Panasonic
EEUFM1C222 | 15092016
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Aluminium Elektrolytische condensator
  • Low Impedance Low ESR
  • Constructie: Radiaal
  • Capaciteit: 2200 µF
  • Nominale voltage 16 Vdc
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur: 10.000h
  • Equivalent series resistance: 0.015 Ohm
  • Max. ripple current: 3190 mA
  • Temperatuurbereik: -55...+105 °C
  • Diameter: behuizing 12.5 mm
  • Lengte: 25 mm
  • Pitch: 5 mm

2200uF 25Vdc Elektrolytische condensator | ECA1EHG222

Panasonic
ECA1EHG222 15092016
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Aluminium Elektrolytische condensator
  • Constructie: Radiaal
  • Capaciteit: 2200 µF
  • Nominale voltage 25 Vdc
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur: 2000h
  • Equivalent series resistance:
  • Max. ripple current:
  • Temperatuurbereik: -55...+105 °C
  • Diameter: behuizing 12.5 mm
  • Lengte: 25 mm
  • Pitch: 5 mm

2200uF 25Vdc Elektrolytische condensator Low impedance | EEUFC1E222

Panasonic
EEUFC1E222 | 15092016
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Aluminium Elektrolytische condensator
  • Low Impedance Low ESR
  • Constructie: Radiaal
  • Capaciteit: 2200 µF
  • Nominale voltage 25 Vdc
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur: 5000h
  • Equivalent series resistance:
  • Max. ripple current: 2510 mA
  • Temperatuurbereik: -55...+105 °C
  • Diameter: behuizing 12.5 mm
  • Lengte: 35 mm
  • Pitch: 5 mm

2200uF 35Vdc Elektrolytische condensator Low impedance | GF2200U35V

Samxon
GF 2200U/35V | 27122021
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel

  • Type: Aluminium Elektrolytische condensator
  • Low Impedance Low ESR
  • Constructie: Radiaal
  • Capaciteit: 2200 µF
  • Nominale voltage 35 Vdc
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur: 4000h
  • Equivalent series resistance:
  • Max. ripple current:  A
  • Temperatuurbereik: -55...+105 °C
  • Diameter: behuizing 16 mm
  • Lengte: 25 mm
  • Pitch: 7.5 mm

2200uF 50Vdc Elektrolytische condensator | ECA1HHG222

Panasonic
ECA1HHG222 | 15112022
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Aluminium Elektrolytische condensator
  • Constructie: Radiaal
  • Capaciteit: 2200 µF
  • Nominale voltage 50 Vdc
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur: 2000h
  • Equivalent series resistance: -- Ohm
  • Max. ripple current: --
  • Temperatuurbereik: -55...+105 °C
  • Diameter: behuizing 16 mm
  • Lengte: 31.50 mm
  • Pitch: 7.5 mm

2200uF 63Vdc Elektrolytische condensator | ECA1JHG222

Panasonic
ECA1JHG222 | 23102018
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Type: Aluminium Elektrolytische condensator
  • Constructie: Radiaal
  • Capaciteit: 2200 µF
  • Nominale voltage 63 Vdc
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur: 2000h
  • Equivalent series resistance: -- Ohm
  • Max. ripple current: --
  • Temperatuurbereik: -55...+105 °C
  • Diameter: behuizing 18 mm
  • Lengte: 35.5 mm
  • Pitch: 7.5 mm

2200uF 100Vdc Elektrolytische condensator | RND150KLZ100M222M50Y

RND Components
RND 150KLZ100M222M50Y | 30032021
30299
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel

  • Type: Aluminium Elektrolytische condensator
  • Constructie: Radiaal Snap-In
  • Capaciteit: 2200 µF
  • Nominale voltage 100 Vdc
  • Tolerantie: in capaciteit ±20%
  • Gebruiksduur: 2000 h
  • Equivalent series resistance: -- Ohm
  • Max. ripple current: 2.5a
  • Temperatuurbereik: -40...+105 °C
  • Diameter: behuizing 22 mm
  • Lengte: 50 mm
  • Pitch: 10 mm
