CA-serie Hirschmann connectoren

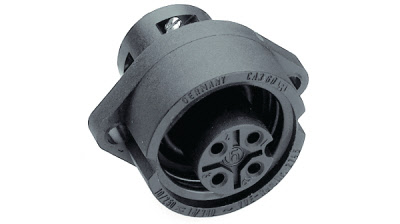

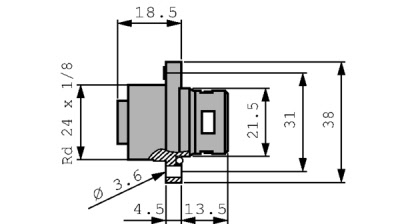

3-polig Chassisdeel + PE female Hirschmann | CA3GD

Hirschmann
CA 3GD | 21042011
2050000246289
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel

  • Type: CA chassisdeel
  • Polen: 3+PE (4 polig)
  • Geslacht: Female, vrouwelijk
  • Bescherming: IP67
  • Kabel entry: 6...12mm
  • Termination type: schroef connectie
  • Aansluiting: 2.5 mm²
  • Locking type: Screw locking
  • Nominale spanning: 400Vac/dc
  • Nominal stroom: 16A
  • Contact materiaal: CuZn+Ag
  • Housing material: Polyamide (PA 66)
  • Combustibility class: UL 94 V-0
  • Temperatuurbereik: -40...+90 °C

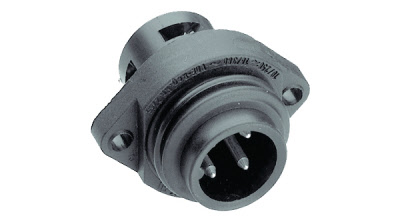

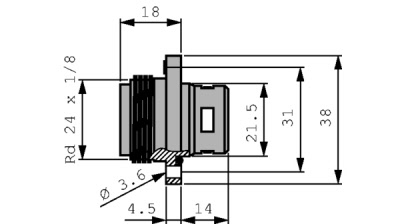

3-polig Chassisdeel + PE male Hirschmann | CA3GS

Hirschmann
CA 3GS | 21042011
2050000246272
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel

  • Type: CA chassisdeel
  • Polen: 3+PE (4 polig)
  • Geslacht: Male, mannelijk
  • Bescherming: IP67
  • Kabel entry: 6...12mm
  • Termination type: schroef connectie
  • Aansluiting: 2.5 mm²
  • Locking type: Screw locking
  • Nominale spanning: 400Vac/dc
  • Nominal stroom: 16A
  • Contact materiaal: CuZn+Ag
  • Housing material: Polyamide (PA 66)
  • Combustibility class: UL 94 V-0
  • Temperatuurbereik: -40...+90 °C

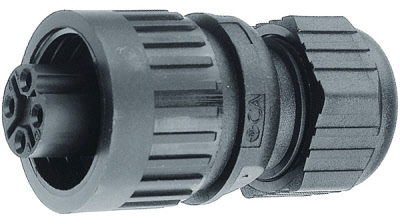

3-polig Stekker + PE female Hirschmann | CA3LD

Hirschmann
CA 3LD | 21042011
4002044182144
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel

  • Type: CA connector
  • Polen: 3+PE (4 polig)
  • Geslacht: Female, vrouwelijk
  • Bescherming: IP67
  • Kabel entry: 6...12mm
  • Termination type: schroef connectie
  • Aansluiting: 2.5 mm²
  • Locking type: Screw locking
  • Nominale spanning: 400Vac/dc
  • Nominal stroom: 16A
  • Contact materiaal: CuZn+Ag
  • Housing material: Polyamide (PA 66)
  • Combustibility class: UL 94 V-0
  • Temperatuurbereik: -40...+90 °C

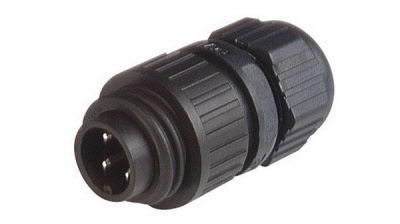

3-polig Stekker + PE male Hirschmann | CA3LS

Hirschmann
CA 3LS | 21042011
4002044181314
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel

  • Type: CA connector
  • Polen: 3+PE (4 polig)
  • Geslacht: Male, mannelijk
  • Bescherming: IP67
  • Kabel entry: 6...12mm
  • Termination type: schroef connectie
  • Aansluiting: 2.5 mm²
  • Locking type: Screw locking
  • Nominale spanning: 400Vac/dc
  • Nominal stroom: 16A
  • Contact materiaal: CuZn+Ag
  • Housing material: Polyamide (PA 66)
  • Combustibility class: UL 94 V-0
  • Temperatuurbereik: -40...+90 °C

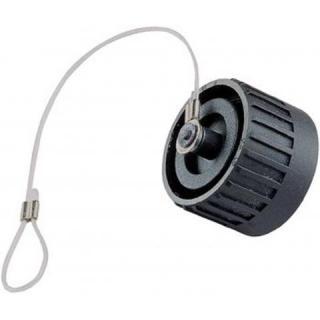

Afsluitdop voor CA3 en 6 binnenschroefdraad Hirschmann | CA00SD1

Hirschmann
CA 00SD1 | 21042011
2050000246173
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel

  • Type beschermkap voor CA serie
  • Voor CA kabeldelen
  • Bescherming: IP67

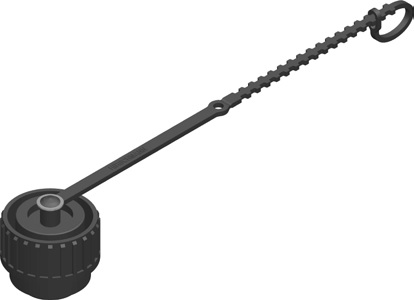

Afsluitdop voor CA3 en 6 buitenschroefdraad Hirschmann | CA00SD3

Hirschmann
CA 00SD3 | 21042011
2050000246180
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel

  • Type beschermkap voor CA serie
  • Voor CA kabeldelen
  • Bescherming: IP67

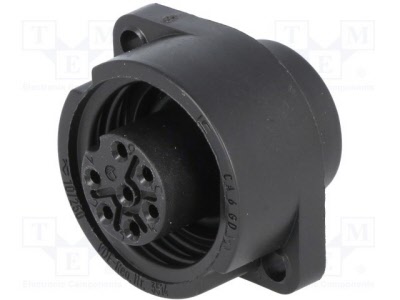

6-polig Chassisdeel + PE female Hirschmann | CA6GD

Hirschmann
CA 6GD | ###V1 | 21042011
2050000246289
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel

  • Type: CA chassisdeel
  • Polen: 6+PE (7 polig)
  • Geslacht: Female, vrouwelijk
  • Bescherming: IP67
  • Kabel entry: 6...12mm
  • Termination type: schroef connectie
  • Aansluiting: 0.75 mm²
  • Locking type: Screw locking
  • Nominale spanning: 400Vac/dc
  • Nominal stroom: 10A
  • Contact materiaal: CuZn+Ag
  • Housing material: Polyamide (PA 66)
  • Combustibility class: UL 94 V-0
  • Temperatuurbereik: -40...+90 °C

6-polig Chassisdeel + PE male Hirschmann | CA6GS

Hirschmann
CA 6GS | 21042011
2050000246319
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel

  • Type: CA chassisdeel
  • Polen: 6+PE (7 polig)
  • Geslacht: Male, mannelijk
  • Bescherming: IP67
  • Kabel entry: 6...12mm
  • Termination type: schroef connectie
  • Aansluiting: 0.75 mm²
  • Locking type: Screw locking
  • Nominale spanning: 400Vac/dc
  • Nominal stroom: 10A
  • Contact materiaal: CuZn+Ag
  • Housing material: Polyamide (PA 66)
  • Combustibility class: UL 94 V-0
  • Temperatuurbereik: -40...+90 °C

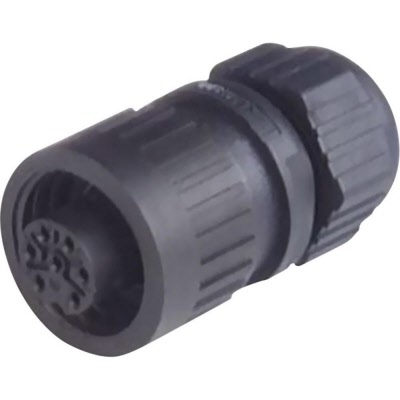

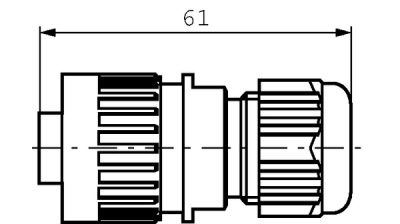

6-polig Stekker + PE female Hirschmann | CA6LD

Hirschmann
CA 6 LD | 21042011
4002044182069
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel

  • Type: CA kabeldeel
  • Polen: 6+PE (7 polig)
  • Geslacht: Female, vrouwelijk
  • Bescherming: IP67
  • Kabel entry: 6...12mm
  • Termination type: schroef connectie
  • Aansluiting: 0.75 mm²
  • Locking type: Screw locking
  • Nominale spanning: 400Vac/dc
  • Nominal stroom: 10A
  • Contact materiaal: CuZn+Ag
  • Housing material: Polyamide (PA 66)
  • Combustibility class: UL 94 V-0
  • Temperatuurbereik: -40...+90 °C

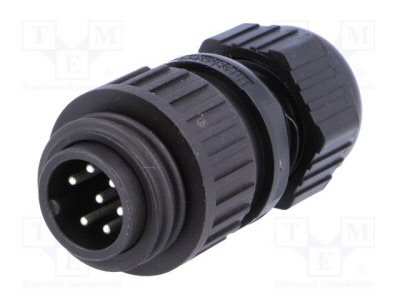

6-polig Stekker + PE male Hirschmann | CA6LS

Hirschmann
CA 6 LS | 21042011
4002044182106
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel

  • Type: CA kabeldeel
  • Polen: 6+PE (7 polig)
  • Geslacht: Male, mannelijk
  • Bescherming: IP67
  • Kabel entry: 6...12mm
  • Termination type: schroef connectie
  • Aansluiting: 0.75 mm²
  • Locking type: Screw locking
  • Nominale spanning: 400Vac/dc
  • Nominal stroom: 10A
  • Contact materiaal: CuZn+Ag
  • Housing material: Polyamide (PA 66)
  • Combustibility class: UL 94 V-0
  • Temperatuurbereik: -40...+90 °C
