micro | USB connectoren - chassis

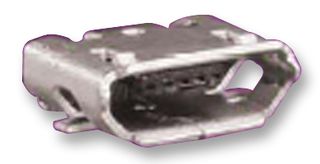

USB micro type B 5p printdeel | 47346-0001

Molex
47346-0001 | 24022014
31463
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Connector Type: USB Micro B
  • Gender: Receptacle
  • No. of Contacts: 5
  • Contact Termination: Solder
  • Connector Mounting: PCB
  • Contact Plating: Gold
  • Contact Material: Copper
  • Connector Mounting Orientation: PCB

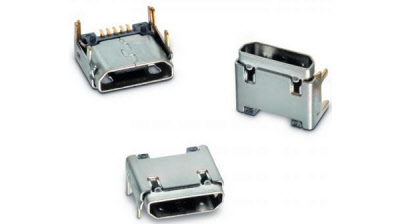

USB micro type B 5p printdeel SMD | 629105150521

Wurth Elektronik
629105150521 | 04072018
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Connector Type: USB Micro B
  • Termination type: SMD
  • No. of Contacts: 5
  • Voltage: 30Vac/dc
  • Temperatuurbereik: -40 ... +85 °C
  • Montage: horizontal

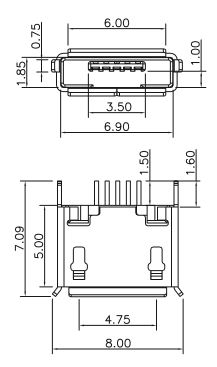

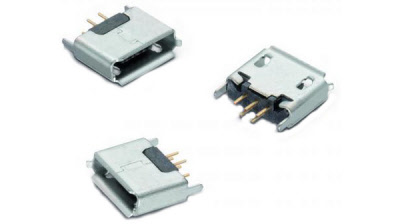

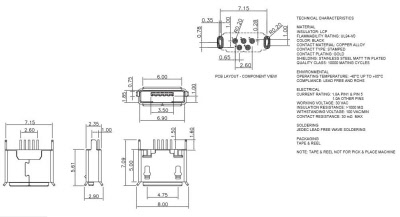

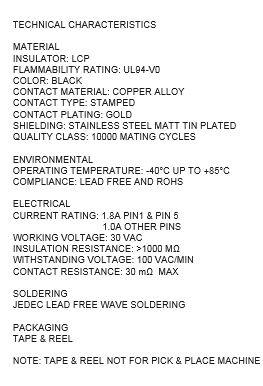

USB micro type B 5p printdeel vertikaal | 614105150621

Würth Elektronik
614105150621 02052016
    Levertijd:geen voorraad artikel levertijd 2-4 werkdagen
Bestel
  • Connector Type: micro-USB AB vertical
  • Gender: Receptacle
  • No. of Contacts: 5
  • Contact Termination: Solder
  • Connector Mounting: PCB vertical
  • Contact Plating: Gold
  • Contact Material: Copper
  • Connector Mounting Orientation: PCB vertical
