C7 C8 Voedings connectoren

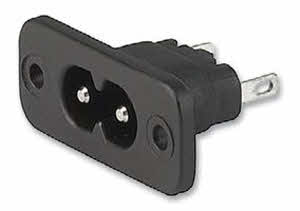

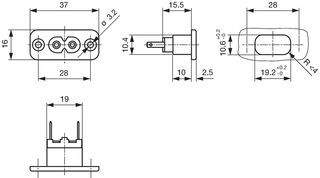

Netentree 2-polig inbouw 250V/2.5A C8 | 6160.0004

Schurter
6160.0004 | 13082021
kg
    Levertijd:geen voorraad artikel levertijd 2-4 werkdagen
Bestel

  • Type: chassisdeel C8  "8" vorm, IEC 60320
  • Type connector AC-voeding
  • Connector contact
  • Soort connector mannelijk
  • Nominale spanning 250V AC
  • Nominale stroom 2.5A
  • Standaard IEC 60320
  • Connectorversie C8 (EURO)
  • Mechanische montage geschroefd, voor paneel
  • Werktemperatuur -25...70°C
  • Uitgang solderen
  • Raster montage-openingen 28mm

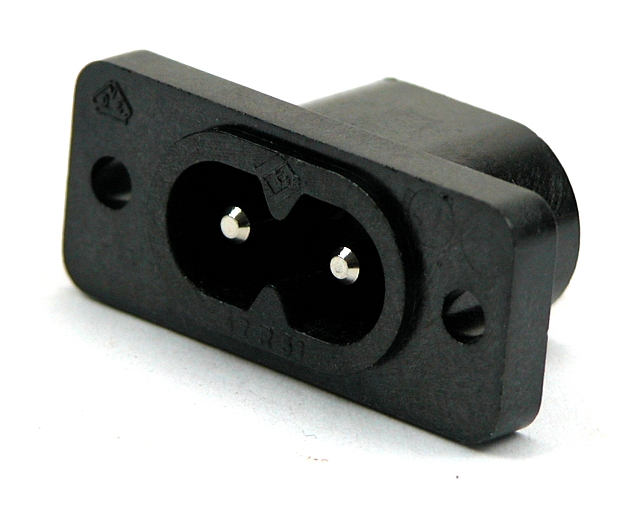

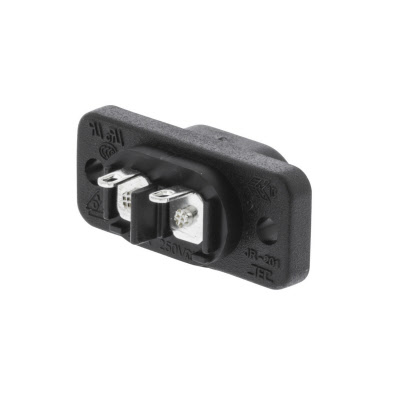

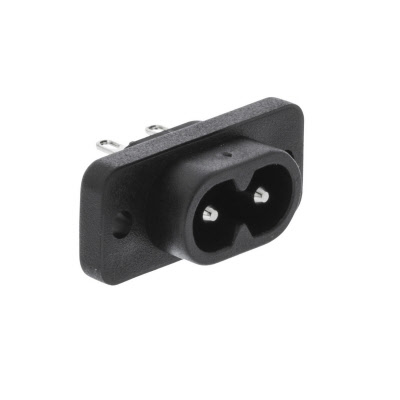

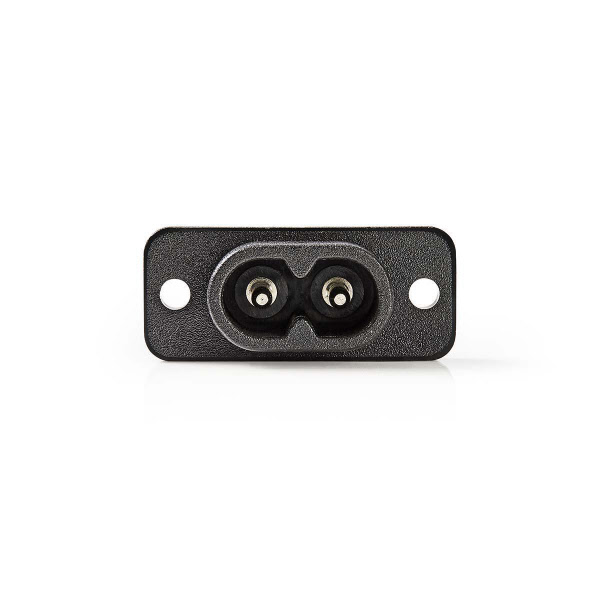

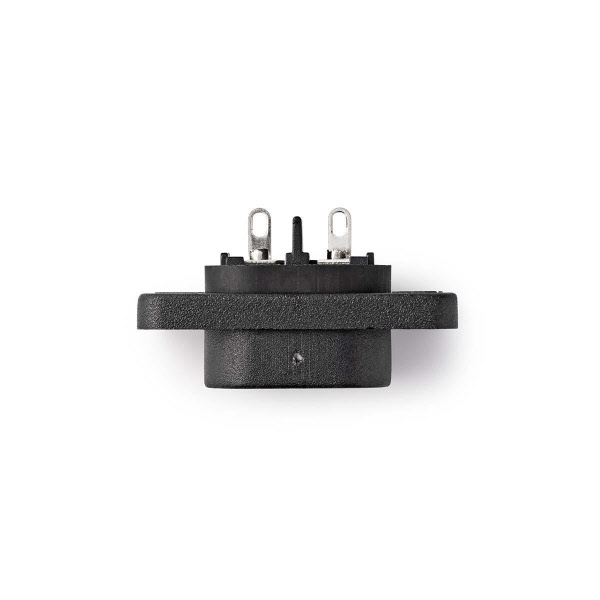

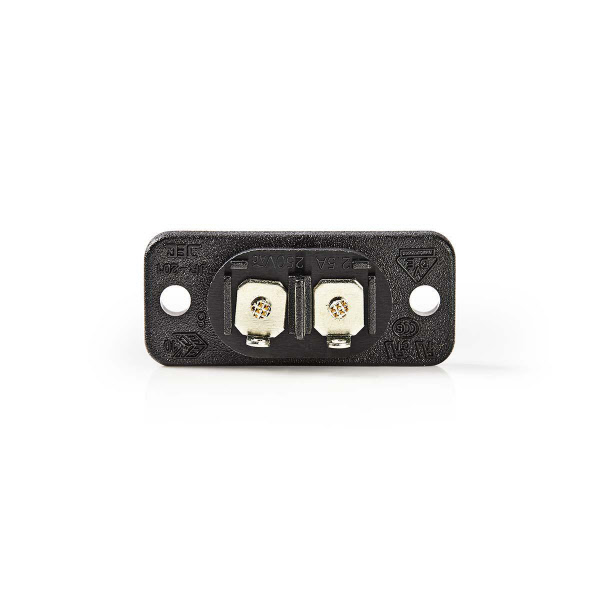

Netentree 2-polig inbouw 250V/2.5A C8 | EC81

Schurter
6160.0021 | EC 81 | 29102013
kg
    Levertijd:geen voorraad artikel levertijd 2-4 werkdagen
Bestel

Productspecificaties

  • Aansluitingstype Soldeeraansluiting
  • Bedrijfstemperatuur max. 70°C
  • Type connectorbevestiging Schroefmontage
  • IEC-rating 2.5 A / 250 V
  • Bedrijfstemperatuur min. -25°C
  • Beschermingsklasse II
  • Montagerichting Voorzijde
  • Brandstofklasse UL 94 V-0
  • UL-waarde 2.5 A / 250 V
  • Normen voldaan CE,CSA,IEC,REACH,UL Listed,VDE
  • Spanningswaarde 250V
  • IP-rating IP20
  • Behuizingsmateriaal Thermoplastic
  • Kleur Zwart
  • Geslacht Ingang
  • Type ingang C8
  • Stroombereik 2.5A
